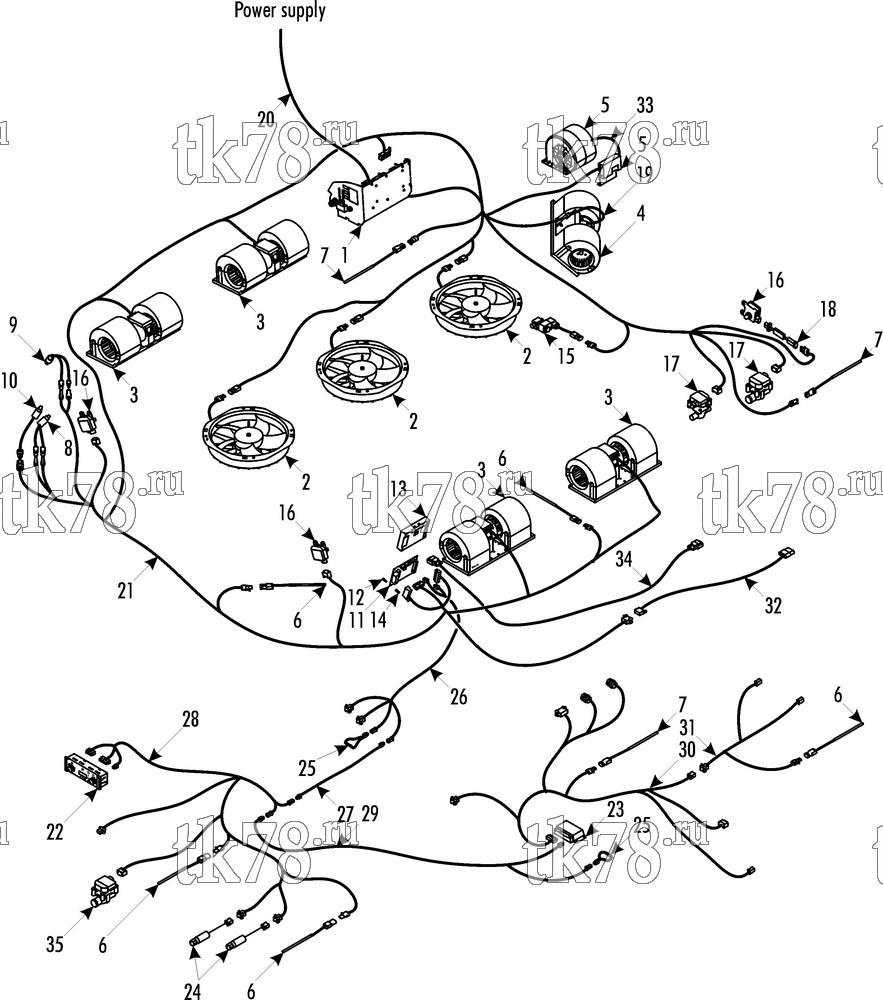

Установкa Thermo King ATHENIA D700 W Split (900904) схема ELECTRICAL COMPONENTS – 243G0
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 243G9) | 1 | |
| 2 | 78-1414 | FAN | 3 | |
| 3 | 78-1297 | BLOWER | 4 | |
| 4 | 78-1395 | BLOWER - drivers section | 1 | |
| 5 | NSS | BLOWER - drivers section, shower (see 243A2) | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 5 | |
| 7 | 41-4335 | SENSOR - temperature | 3 | |
| 8 | 41-4146 | SWITCH - hpco | 1 | |
| 9 | 41-4209 | SWITCH - lpco | 1 | |
| 10 | 41-5220 | SWITCH - cps | 1 | |
| 11 | 41-8140 | MODULE - main, can | 1 | |
| 51-1848 | STUD - module | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 12 | 51-1849 | SPACER | 4 | |
| 13 | 92-7576 | COVER - module | 1 | |
| 14 | 51-1850 | SPACER | 4 | |
| 55-9195 | SCREW - cover | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 15 | 41-6348 | VALVE - solenoid | 1 | |
| 16 | 41-3255 | SERVOMOTOR | 3 | |
| 17 | 41-6592 | VALVE - water | 2 | |
| 18 | 41-7190 | CONTROLLER - servo | 1 | |
| 19 | 41-5192 | HARNESS - blower | 1 | |
| 20 | 41-9270 | HARNESS - power supply | 1 | |
| 21 | 41-9491 | HARNESS - Athenia 700 VDL (for connectors see 243A8) | 1 | |
| 22 | NSS | FrontAIRE II (see 215A1) | 1 | |
| 23 | 41-8142 | MODULE - I/O | 1 | |
| 24 | 41-8952 | POTENTIOMETER - driver panel | 2 | |
| 25 | 41-8787 | TERMINATOR - 120 ohms | 2 | |
| 26 | 41-8624 | HARNESS - can interface (for connectors see 243A8) | 1 | |
| 27 | 41-8634 | HARNESS - can FrontAIRE II | 1 | |
| 28 | 41-8635 | HARNESS - can FrontAIRE II driver panel | 1 | |
| 29 | 41-8636 | HARNESS - can FrontAIRE II floor module | 1 | |
| 30 | 41-9272 | HARNESS - can floor heating 1 | 1 | |
| 41-9273 | HARNESS - can floor heating 1 low entry | 1 | ||
| 31 | 41-9274 | HARNESS - can floor heating 2 | 1 | |
| 41-9275 | HARNESS - can floor heating 2 low entry | 1 | ||
| 32 | 41-9276 | HARNESS - compressor | 1 | |
| 33 | 41-9277 | HARNESS - extension | 1 | |
| 34 | 41-5750 | CABLE - connecting | 1 | |
| 35 | 41-7665 | VALVE - water | 1 |
