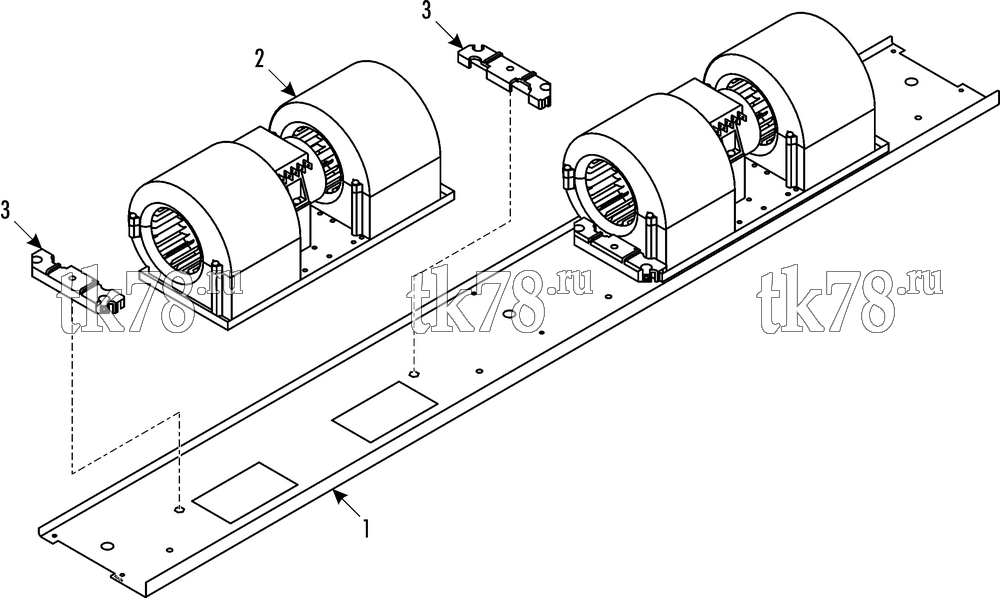

Установкa Thermo King ATHENIA D700 W Split (900904) схема BLOWERS – 243A1
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8238 | PLATE - blower | 1 | |
| 55-5130 | RIVET - plate to unit | 6 | ||
| 2 | 78-1297 | BLOWER | 2 | |
| 3 | 51-259 | HOLDER - blower | 4 | |
| 55-7372 | SCREW - holder | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 |
