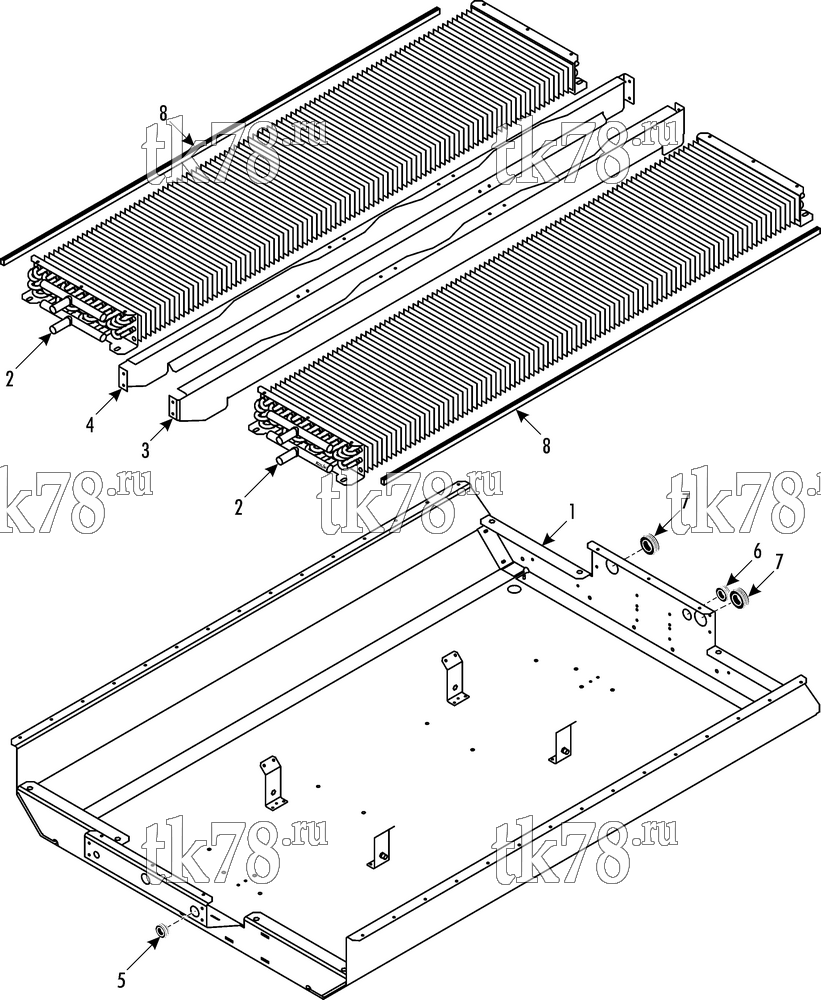

Установкa Thermo King ATHENIA D700 W Split (900904) схема CONDENSER - STANDARD – 234E7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8160 | FRAME - condenser, standard | 1 | |
| 55-5130 | RIVET - frame | A/R | ||
| 2 | 67-2021 | COIL - condenser | 2 | |
| 55-6994 | SCREW - coil | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 3 | 98-6887 | SUPPORT - cover | 1 | |
| 4 | 98-6888 | SUPPORT - cover | 1 | |
| 55-5130 | RIVET - support | 8 | ||
| 5 | 33-367 | GROMMET (0.625 id) | 1 | |
| 6 | 33-572 | GROMMET (0.750 id) | 1 | |
| 7 | 33-452 | GROMMET (0.875 id) | 2 | |
| 8 | 92-3999 | INSULATION | 2 |
