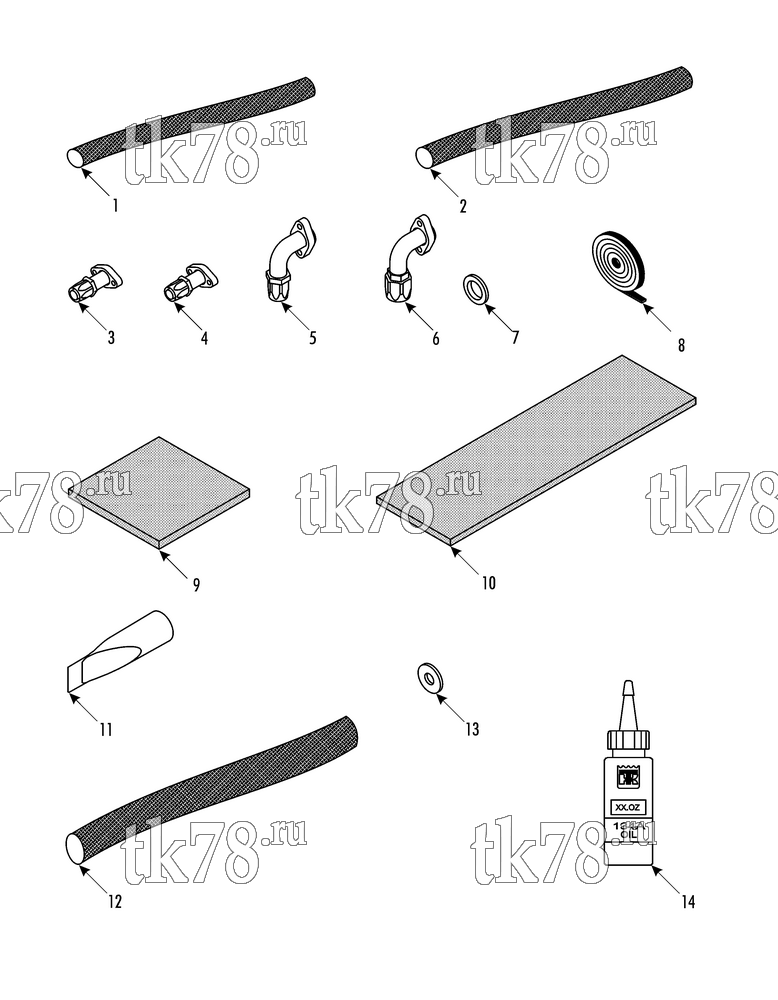

Установкa Thermo King ATHENIA D700 W ARRIVA схема INSTALLATION COMPONENTS – 263C3
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-4769 | HOSE - #16, Aeroquip, R134a | A/R | |
| 2 | 61-4770 | HOSE - #20, Aeroquip, R134a | A/R | |
| 3 | 61-4771 | FITTING - #16, Aeroquip, 0 deg | 1 | |
| 4 | 61-3588 | FITTING - #20, Aeroquip, 0 deg | 1 | |
| 5 | 61-475 | FITTING - #16, Aeroquip, 90 deg | 1 | |
| 6 | 61-476 | FITTING - #20, Aeroquip, 90 deg | 1 | |
| 7 | 33-3191 | GASKET - flat | 4 | |
| 8 | 203-391 | TAPE - sealer | A/R | |
| 9 | 92-7467 | FILTER - air | 1 | |
| 10 | 92-7468 | FILTER - air | 4 | |
| 11 | 66-1273 | VALVE - hose check | 6 | |
| 12 | 91-9006 | HOSE - drain water (16mm id) | A/R | |
| 13 | 55-2359 | FLATWASHER | 4 | |
| 14 | 203-505 | OIL - compressor | 1 |
