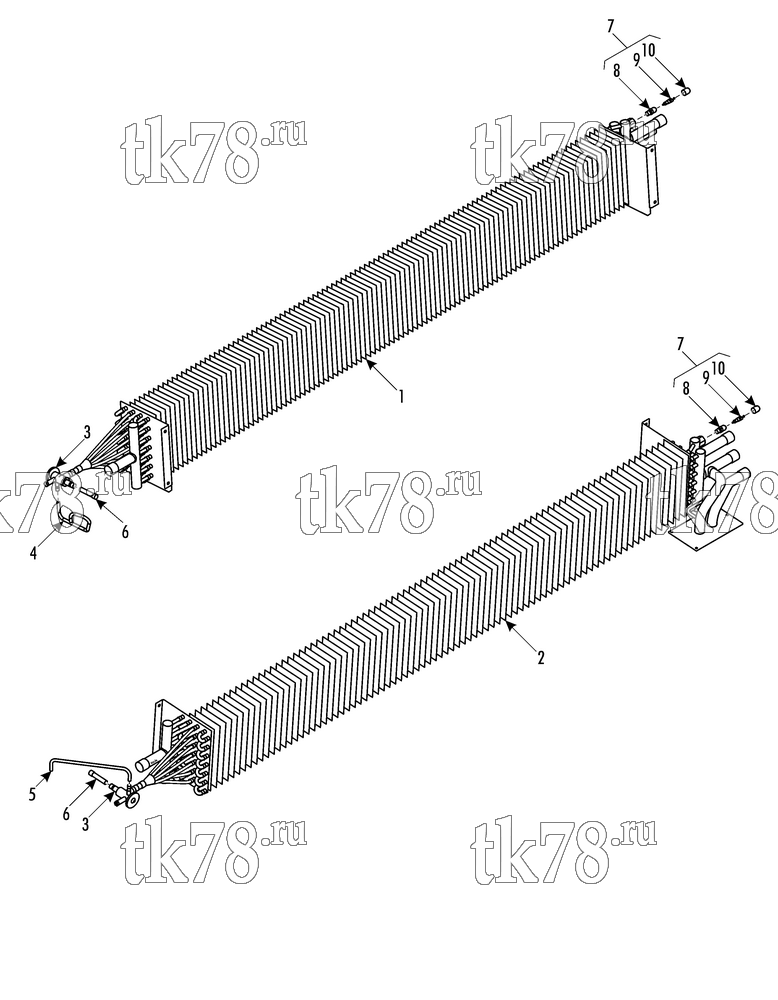

Установкa Thermo King ATHENIA D700 W ARRIVA схема EVAPORATOR/HEATER COIL – 263C1
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2802 | COIL - evaporator/heater | 1 | |
| 2 | 67-2512 | COIL - evaporator/heater | 1 | |
| 3 | 66-9922 | VALVE - thermostatic expansion, R134a | 2 | |
| 4 | 61-4083 | TUBE | 1 | |
| 5 | 61-4082 | TUBE | 1 | |
| 6 | 61-2759 | TUBE | 2 | |
| 7 | 11-2886 | VALVE - assy | 2 | |
| 8 | 55-7213 | BODY - valve | 1 | |
| 9 | 11-7777 | VALVE - Schrader | 1 | |
| 10 | 55-5672 | CAP - valve | 1 |
