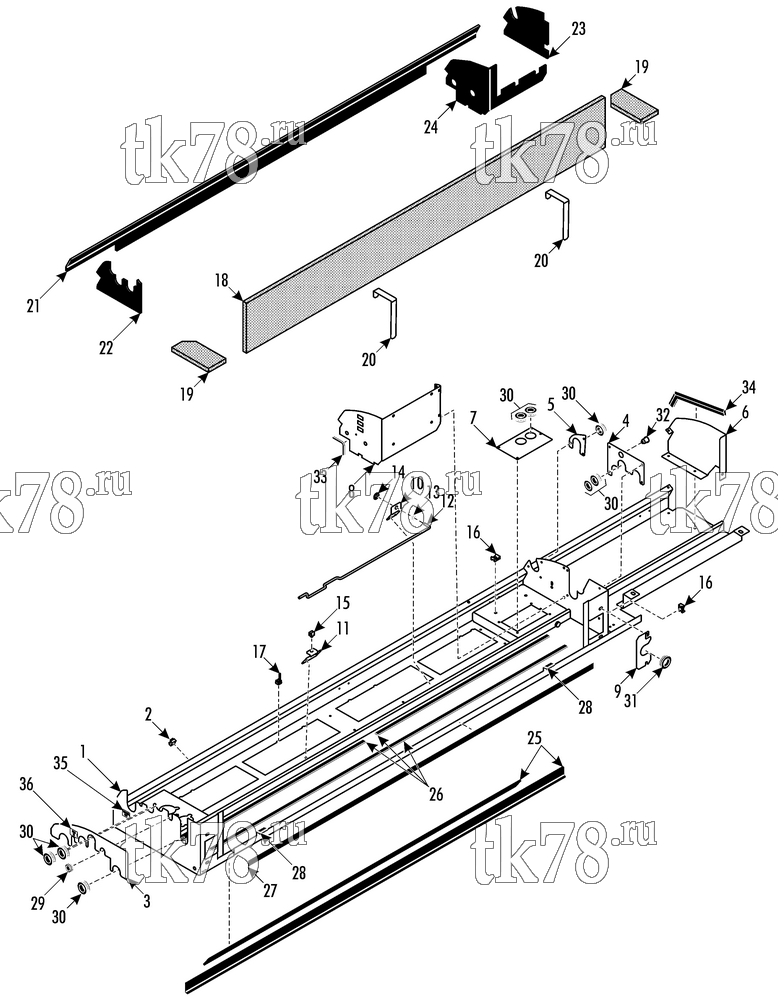

Установкa Thermo King ATHENIA D700 W ARRIVA схема EVAPORATOR BASE 2 – 263B7
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8230 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-5665 | PLATE - cover | 1 | |
| 4 | 92-9812 | PLATE - cover | 1 | |
| 5 | 92-7465 | PLATE - cover | 1 | |
| 6 | 92-8171 | PLATE - front | 1 | |
| 7 | 92-7598 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 8 | 92-7617 | COVER | 1 | |
| 55-7664 | SCREW - cover | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 9 | 92-5666 | PLATE - cover | 1 | |
| 10 | 92-5048 | BRACKET - support | 1 | |
| 11 | 92-7344 | BRACKET - clip | 1 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 12 | 92-6378 | SUPPORT - cover | 1 | |
| 13 | 83-258 | GROMMET (0.250 id) | 1 | |
| 14 | 51-809 | LOCKWASHER | 1 | |
| 15 | 51-1669 | CLIP - plastic | 1 | |
| 16 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-7664 | SCREW - mount | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7866 | NUT - captive | 1 | ||
| 55-5130 | RIVET - mount | A/R | ||
| 17 | 51-1631 | STRAP - cable | A/R | |
| 18 | 92-5663 | FILTER - evaporator | 1 | |
| 19 | 92-4007 | FILTER - evaporator | 2 | |
| 20 | 92-5664 | CLIP - filter | 2 | |
| 21 | 92-6377 | INSULATION | 1 | |
| 22 | 92-4014 | INSULATION | 1 | |
| 23 | 92-7600 | INSULATION | 1 | |
| 24 | 92-7618 | INSULATION | 1 | |
| 25 | 33-2420 | STRIP - neoprene | A/R | |
| 26 | 99-2996 | STRIP - neoprene | A/R | |
| 27 | 99-6968 | STRIP - neoprene | A/R | |
| 28 | 99-1908 | STRIP - neoprene | A/R | |
| 29 | 33-428 | GROMMET (0.500 id) | 1 | |
| 30 | 33-452 | GROMMET (0.875 id) | 8 | |
| 31 | 33-1084 | GROMMET (1.000 id) | 1 | |
| 32 | 33-4681 | PLUG - rubber | 1 | |
| 33 | 92-3279 | RUBBER - profile | A/R | |
| 34 | 92-146 | RUBBER - profile | A/R | |
| 35 | 91-8536 | NAMEPLATE - vapour out | 1 | |
| 36 | 91-7510 | NAMEPLATE - gas in | 1 |
