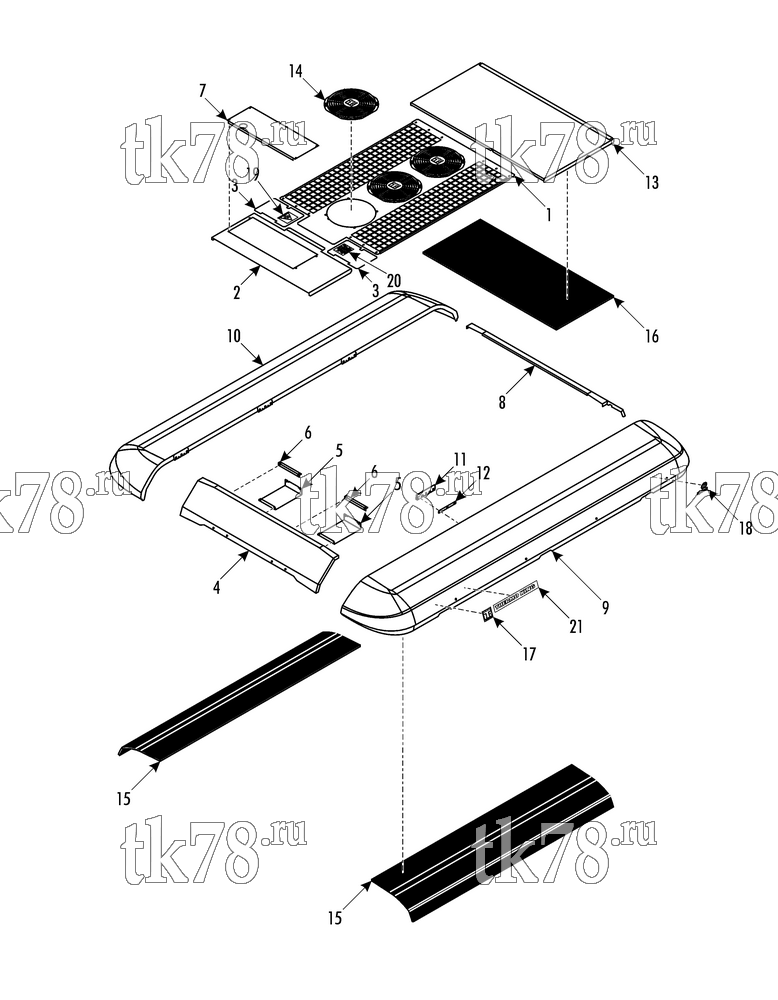

Установкa Thermo King ATHENIA D700 W ARRIVA схема COVERS – 263B5
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6927 | COVER - condenser | 1 | |
| 55-7373 | NUT - captive | 12 | ||
| 2 | 98-7477 | COVER | 1 | |
| 3 | 92-4018 | COVER | 2 | |
| 4 | 98-6898 | SPOILER | 1 | |
| 5 | 92-4025 | BRACKET - spoiler | 2 | |
| 6 | 92-4021 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - covers & brackets (0.425) | A/R | ||
| 55-5047 | RIVET - covers & brackets (0.550) | A/R | ||
| 7 | 98-7478 | COVER | 1 | |
| 55-7340 | SCREW - cover | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 51-190 | NUT - captive | 4 | ||
| 8 | 98-8228 | SPOILER | 1 | |
| 51-1930 | SCREW - spoiler | 4 | ||
| 51-118 | NUT - captive | 4 | ||
| 9 | 98-8226 | COVER - evaporator | 1 | |
| 10 | 98-8227 | COVER - evaporator | 1 | |
| 51-1930 | SCREW - covers | 8 | ||
| 11 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge | 30 | ||
| 55-7171 | LOCKWASHER | 30 | ||
| 55-7089 | FLATWASHER | 30 | ||
| 55-8375 | NUT - captive | 12 | ||
| 12 | 92-9810 | PLATE - nut | 6 | |
| 13 | 98-8225 | COVER | 1 | |
| 55-7372 | SCREW - cover | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 14 | 78-1416 | GUARD - fan | 3 | |
| 55-7372 | SCREW - guard | 12 | ||
| 55-9190 | WASHER - spring | 12 | ||
| 55-7373 | NUT - captive | 12 | ||
| 15 | 92-5047 | INSULATION | 2 | |
| 16 | 92-7594 | INSULATION | 1 | |
| 17 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 18 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 19 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 20 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 21 | 91-1154 | NAMEPLATE - Thermo King | 2 |
