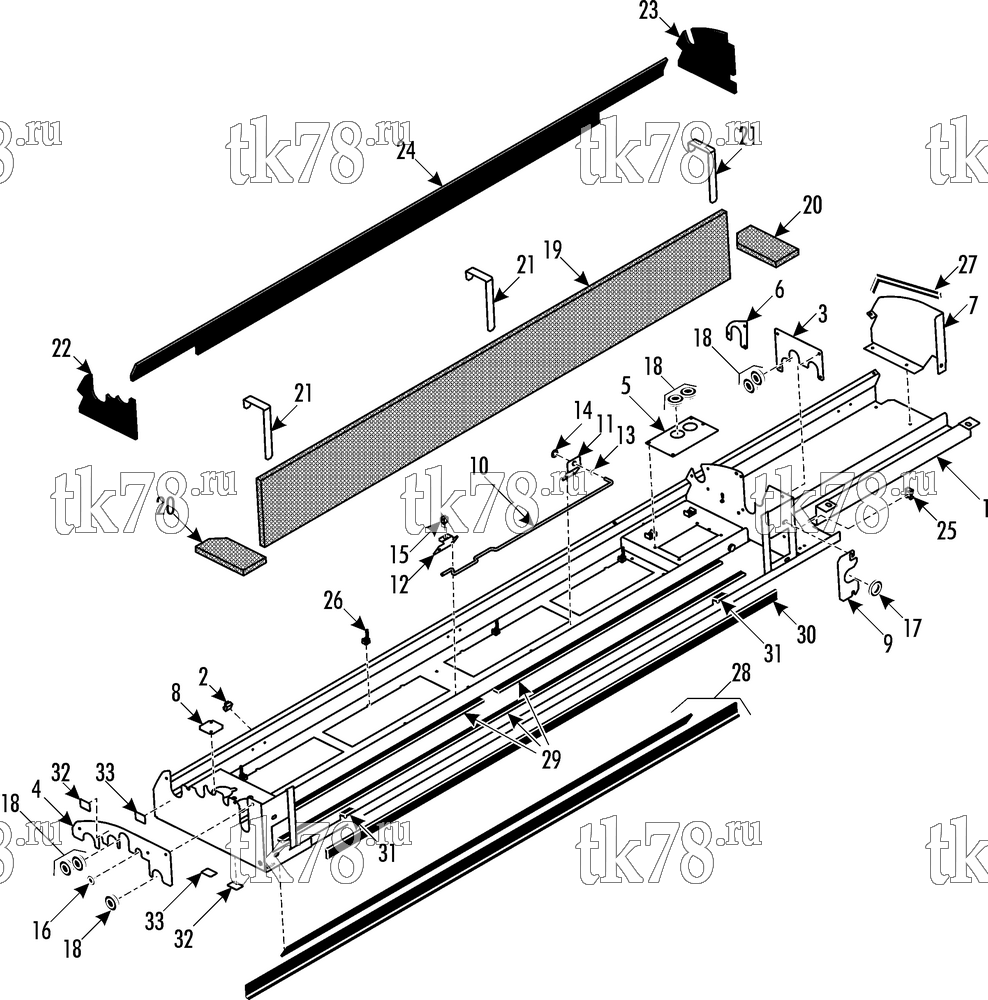

Установкa Thermo King ATHENIA D500 Compact схема EVAPORATOR BASE 2 – 237H8
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8230 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-4003 | PLATE - cover | 1 | |
| 4 | 92-5665 | PLATE - cover | 1 | |
| 5 | 92-7598 | PLATE - electric connection | 1 | |
| 6 | 92-7465 | PLATE - cover | 1 | |
| 7 | 92-8171 | PLATE - front | 1 | |
| 8 | 92-7599 | PLATE | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 9 | 92-5666 | PLATE - cover | 1 | |
| 10 | 92-6378 | SUPPORT - cover | 1 | |
| 11 | 92-5048 | BRACKET - support | 1 | |
| 12 | 92-7344 | BRACKET - clip | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 13 | 83-258 | GROMMET (0.250 id) | 1 | |
| 14 | 51-809 | LOCKWASHER | 1 | |
| 15 | 51-1669 | CLIP - plastic | 1 | |
| 16 | 33-428 | GROMMET (0.500 id) | 1 | |
| 17 | 33-1084 | GROMMET (1.000 id) | 1 | |
| 18 | 33-452 | GROMMET (0.875 id) | 7 | |
| 19 | 92-5663 | FILTER - evaporator | 1 | |
| 20 | 92-4007 | FILTER - evaporator | 2 | |
| 21 | 92-3540 | CLIP | 3 | |
| 22 | 92-4014 | INSULATION | 1 | |
| 23 | 92-7600 | INSULATION | 1 | |
| 24 | 92-6377 | INSULATION | 1 | |
| 25 | 99-3281 | MOUNT - bandwrap | 3 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-7664 | SCREW - mount | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 26 | 51-1631 | STRAP - cable | 5 | |
| 27 | 92-146 | RUBBER - profile | A/R | |
| 28 | 33-2420 | STRIP - neoprene | A/R | |
| 29 | 99-2495 | STRIP - neoprene | A/R | |
| 30 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 31 | 33-3540 | STRIP - neoprene | A/R | |
| 32 | 91-7510 | NAMEPLATE - Gas In | 2 | |
| 33 | 91-8536 | NAMEPLATE - Vapour Out | 2 |
