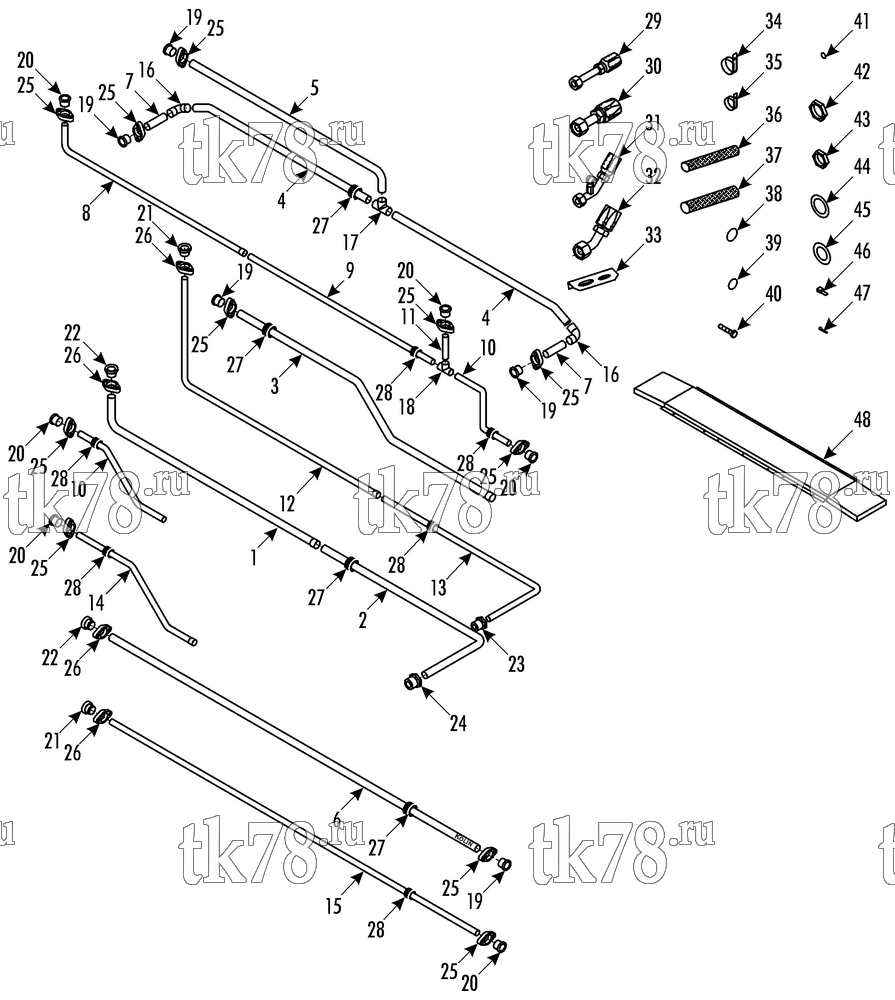

Установкa Thermo King ATHENIA AP-X схема INSTALLATION KIT – 210F3
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3526 | TUBE | 1 | |
| 2 | 61-3527 | TUBE | 1 | |
| 3 | 61-3528 | TUBE | 1 | |
| 4 | 61-3529 | TUBE | 2 | |
| 5 | 61-3530 | TUBE | 1 | |
| 6 | 61-3531 | TUBE | 1 | |
| 7 | 61-3532 | TUBE | 2 | |
| 8 | 61-3533 | TUBE | 1 | |
| 9 | 61-3534 | TUBE | 1 | |
| 10 | 61-3535 | TUBE | 2 | |
| 11 | 61-3536 | TUBE | 1 | |
| 12 | 61-3537 | TUBE | 1 | |
| 13 | 61-3538 | TUBE | 1 | |
| 14 | 61-3539 | TUBE | 1 | |
| 15 | 61-1334 | TUBE | 1 | |
| 16 | 55-3682 | ELBOW | 2 | |
| 17 | 55-5616 | TEE (1-1/8 x 1-1/8 x 1-1/8) | 1 | |
| 18 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 19 | 55-9184 | ADAPTER | 5 | |
| 20 | 55-9185 | ADAPTER (7/8) | 6 | |
| 21 | 55-9369 | ADAPTER (22 dia) | 2 | |
| 22 | 51-374 | ADAPTER (29 dia) | 2 | |
| 23 | 66-5247 | ADAPTER - bulkhead | 1 | |
| 24 | 55-7537 | ADAPTER - bulkhead | 1 | |
| 25 | 55-9371 | FLANGE | 11 | |
| 26 | 55-9186 | FLANGE | 4 | |
| 27 | 92-2015 | TUBING - rubber (1.125 id) | A/R | |
| 28 | 91-3542 | TUBING - rubber (0.875 id) | A/R | |
| 29 | 55-9769 | FITTING - manuli UN 1 7/16 - 12 | 1 | |
| 30 | 55-9770 | FITTING - manuli UN 1 11/16 - 12 | 1 | |
| 31 | 55-9772 | FITTING - manuli UN 1 7/16 - 12 | 1 | |
| 32 | 55-9773 | FITTING - manuli UN 1 11/16 - 12 | 1 | |
| 33 | 92-2062 | BRACKET - fitting | 1 | |
| 34 | 55-7147 | CLAMP (1.687 dia) | 8 | |
| 35 | 55-3320 | CLAMP (1.250 dia) | 8 | |
| 36 | 61-2152 | HOSE (22 id) | A/R | |
| 37 | 61-2183 | HOSE (28 id) | A/R | |
| 38 | 33-3166 | O-RING (1-7/16 x 1-3/16 x 1/8) | 1 | |
| 39 | 33-3165 | O-RING (1-3/16 x 15/16 x 1/8) | 1 | |
| 40 | 55-5589 | SCREW (M10) | 16 | |
| 41 | 55-8537 | LOCKWASHER | 16 | |
| 42 | 55-5739 | NUT | 1 | |
| 43 | 55-5740 | NUT | 1 | |
| 44 | 55-5742 | LOCKWASHER | 1 | |
| 45 | 55-5741 | LOCKWASHER | 1 | |
| 46 | 55-2331 | BANDWRAP (4.00 dia, black) | 50 | |
| 47 | 55-2332 | BANDWRAP (0.75 dia, black) | 50 | |
| 48 | 98-7445 | COVER - center | 1 | |
| 55-5130 | RIVET - cover | 11 |
