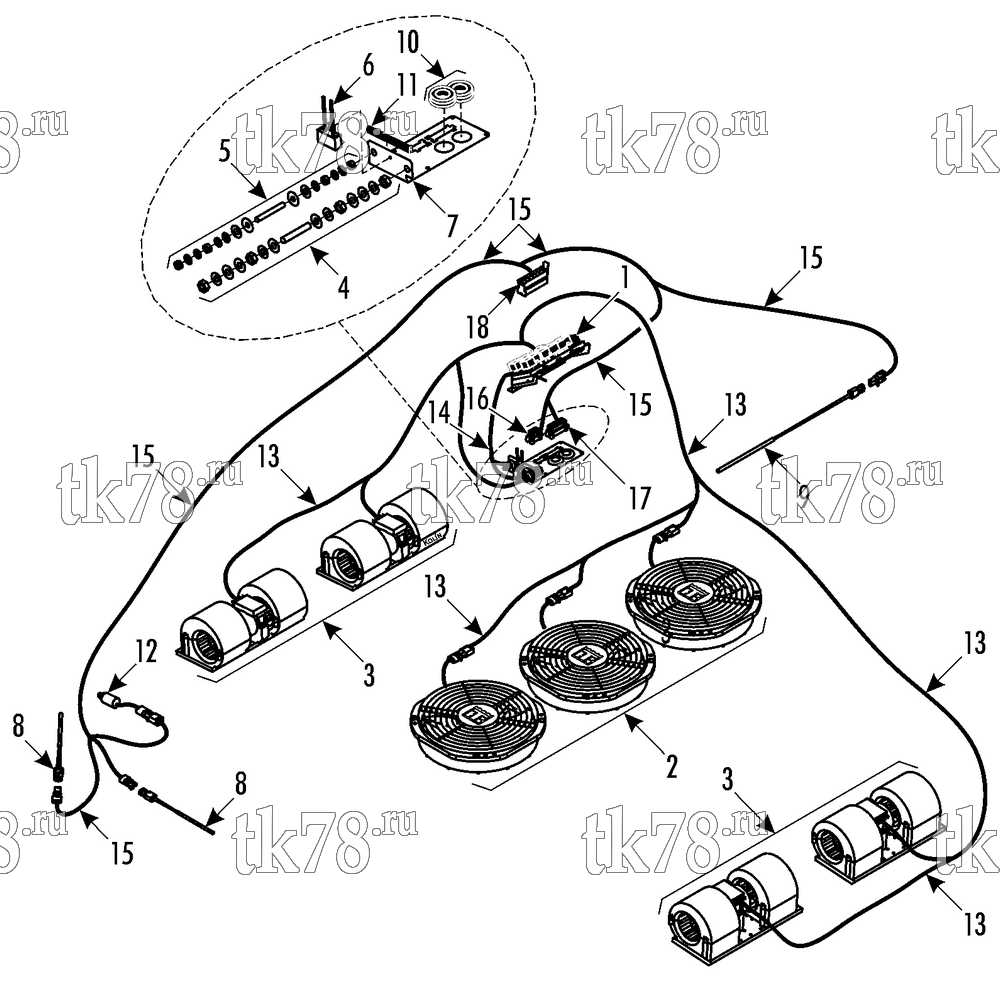

Установкa Thermo King ATHENIA AP-X схема ELECTRICAL COMPONENTS (INSIDE MASTER) – 210E9
Обновление от: 2/3/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 210F2) | 1 | |
| 2 | 78-1414 | FAN | 3 | |
| 3 | 78-1297 | BLOWER | 4 | |
| 4 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 5 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 6 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 7 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 8 | 41-4157 | SENSOR - temperature | 2 | |
| 9 | 41-4335 | SENSOR - temperature | 1 | |
| 10 | 33-452 | GROMMET (0.875 id) | 2 | |
| 11 | 92-3279 | STRIP - flange | A/R | |
| 12 | 41-5220 | SWITCH - hpco (see 210E8) | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 13 | 41-6843 | HARNESS - control panel | 1 | |
| 14 | 41-6101 | HARNESS - supply | 1 | |
| 15 | 41-7193 | HARNESS - control, master | 1 | |
| 16 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 17 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 18 | 41-3856 | CONNECTOR - female (18-pin) | 1 |
