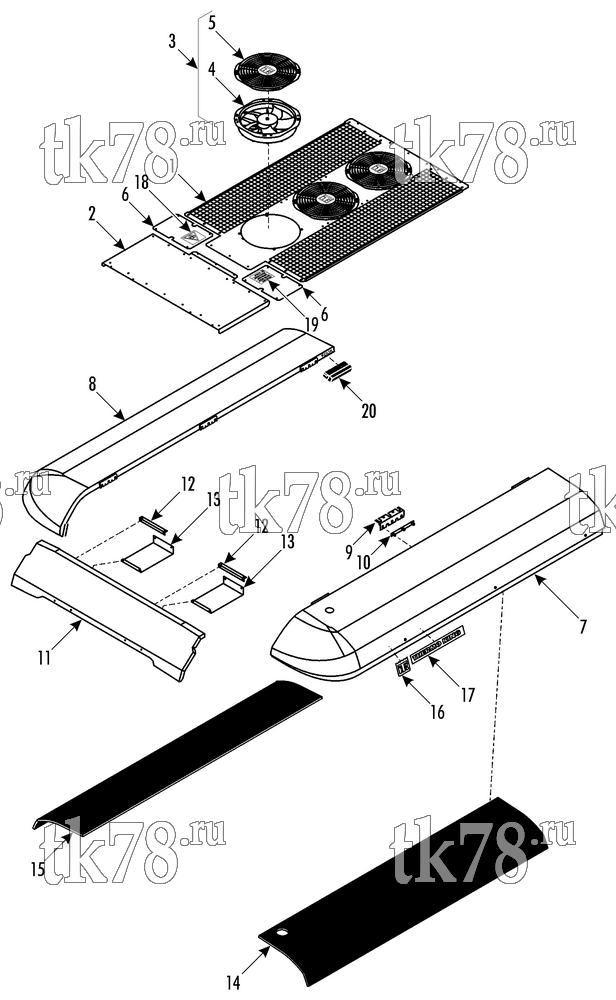

Установкa Thermo King ATHENIA AP-X схема COVER ASSY (MASTER UNIT) – 210E6
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6927 | COVER - condenser (standard, 3 fans) | 1 | |
| 55-7373 | NUT - captive | A/R | ||
| 2 | 98-7243 | COVER - frame (added) | 1 | |
| 55-5130 | RIVET - covers (5/32, 0.425) | A/R | ||
| 55-5047 | RIVET - covers (5/32, 0.550) | A/R | ||
| 3 | 78-1414 | FAN - assembly | 3 | |
| 4 | 78-1414 | FAN | 3 | |
| 5 | 78-1416 | GUARD - fan | 3 | |
| 51-1243 | SCREW | 3 | ||
| 55-7372 | SCREW - fan to cover | 12 | ||
| 51-130 | LOCKWASHER | 12 | ||
| 6 | 92-4018 | PLATE | 2 | |
| 55-5047 | RIVET - plate | 8 | ||
| 7 | 98-7441 | COVER - evaporator | 1 | |
| 8 | 98-7442 | COVER - evaporator | 1 | |
| 55-9306 | SCREW - cover | 6 | ||
| 9 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge to frame & cover | 30 | ||
| 55-7171 | LOCKWASHER | 30 | ||
| 55-7089 | FLATWASHER | 30 | ||
| 10 | 92-4019 | NUTPLATE | 6 | |
| 11 | 98-6898 | SPOILER | 1 | |
| 12 | 92-4021 | BRACKET - spoiler | 2 | |
| 13 | 92-4025 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 14 | 92-5046 | INSULATION - cover | 1 | |
| 15 | 92-5047 | INSULATION - cover | 1 | |
| 16 | 91-6232 | NAMEPLATE - TK logo | 2 | |
| 17 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 18 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 20 | 92-146 | GASKET - molded | A/R |
