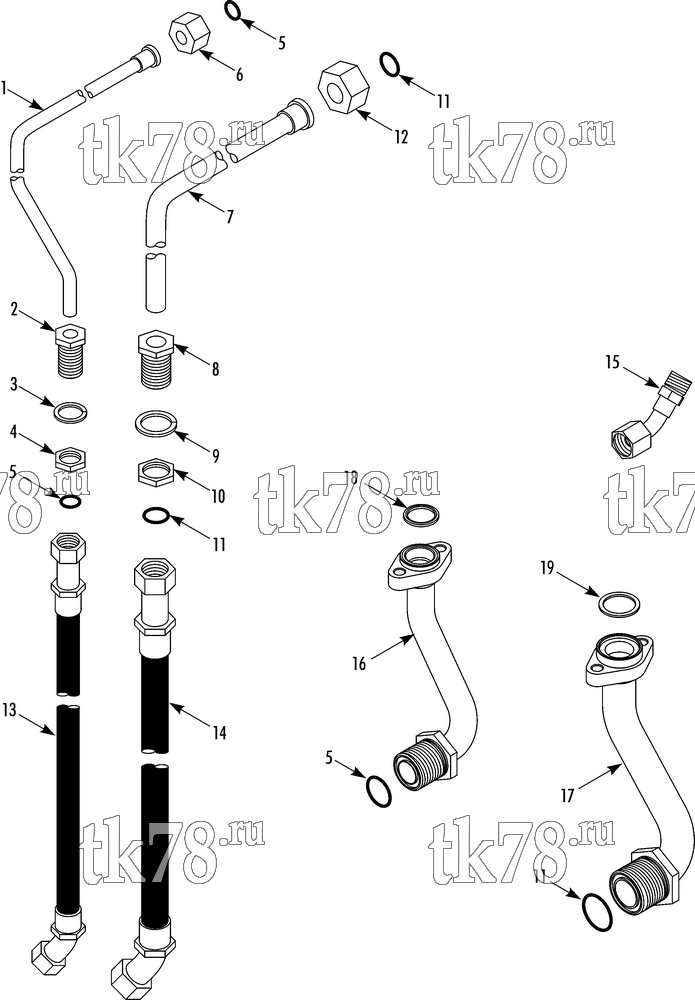

Установкa Thermo King ATHENIA 960-M32 схема COMPRESSOR FITTING & HOSE CONNECTIONS – 264H0
Обновление от: 1/23/13
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 61-5889 | TUBE - discharge | 1 |
| 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 2 | 55-7832 | ADAPTER - bulkhead (#20) | A/R |
| 3 | 55-5742 | LOCKWASHER (1.77 id) | A/R |
| 4 | 55-5739 | NUT - bulkhead (#20) | A/R |
| 5 | 33-1777 | O-RING - discharge (#20) | A/R |
| 6 | 55-9023 | NUT - shoulder (#20) | A/R |
| 7 | 61-5890 | TUBE - suction | 1 |
| 55-7051 | SLEEVE - adapter (#24) | 1 | |
| 8 | 55-7381 | ADAPTER - bulkhead (#24) | A/R |
| 9 | 55-5999 | LOCKWASHER (2.01 id) | A/R |
| 10 | 55-5996 | NUT - bulkhead (#24) | A/R |
| 11 | 55-5935 | NUT - shoulder (#24) | A/R |
| 12 | 33-920 | O-RING - suction (#24) | A/R |
| 13 | 66-9466 | HOSE - discharge (#20, 27 inches long) | 1 |
| 14 | 61-2374 | HOSE - suction (#24, 23 inches long) | 1 |
| 15 | 61-5553 | ADAPTER - assembly (ORS #8 to Tube-O #8) | 1 |
| 55-6837 | SHOULDER | 1 | |
| 55-6838 | NUT | 1 | |
| 55-9431 | ADAPTER | 1 | |
| 16 | 61-6390 | TUBE - discharge assembly | 1 |
| 55-9371 | FLANGE (2 bolt, non-threaded) | 1 | |
| 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 55-9184 | ADAPTER | 1 | |
| 17 | 61-6389 | TUBE - suction assembly | 1 |
| 51-1292 | ADAPTER - bulkhead (#24) | 1 | |
| 51-2063 | FLANGE (2 bolt, non-threaded) | 1 | |
| 51-2064 | ADAPTER | 1 | |
| 18 | 33-2790 | WASHER - sealing, brass (#20) | A/R |
| 19 | 33-3191 | GASKET - flat (#24) | A/R |
