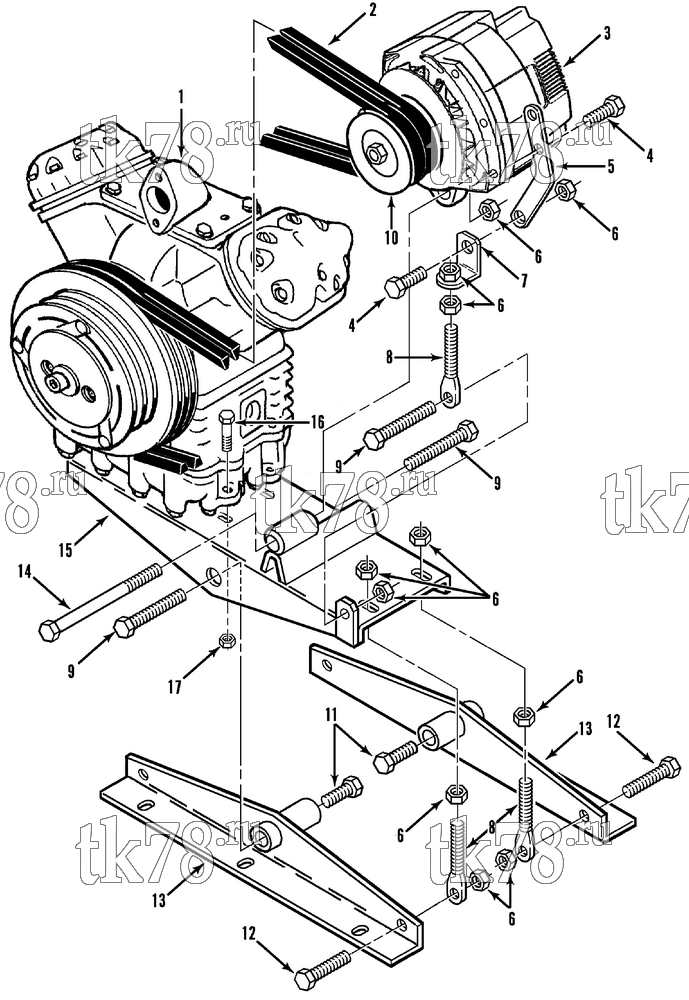

Установкa Thermo King ATHENIA 960-M30 & M30A схема COMPRESSOR/ALTERNATOR MOUNTING GROUP – 251B3
Обновление от: 2/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 (see 228E5) | 1 | |
| 2 | 78-941 | BELT - compressor to alternator | 1 | |
| 3 | 41-3627 | ALTERNATOR (28VDC output/12VDC excitation, see 236G0) | 1 | |
| 4 | 55-3486 | SCREW - alternator | 3 | |
| 55-2159 | LOCKWASHER | 3 | ||
| 55-2173 | FLATWASHER | 3 | ||
| 5 | 92-8936 | BRACKET - alternator adjusting | 1 | |
| 6 | 55-2166 | NUT - eyebolt (alternator bracket) | 11 | |
| 7 | 92-8937 | BRACKET - alternator adjusting | 1 | |
| 8 | 92-6932 | BOLT - eye | 3 | |
| 55-2159 | LOCKWASHER | 12 | ||
| 55-2173 | FLATWASHER | 12 | ||
| 9 | 55-1670 | SCREW-HH 1/2-13 SZN | 3 | |
| 55-2173 | FLATWASHER | 3 | ||
| 55-2159 | LOCKWASHER | 3 | ||
| 10 | 77-2663 | PULLEY - alternator (2.875 od, 2A groove) | 1 | |
| 11 | 55-6750 | SCREW - backup | 2 | |
| 10-55-6750 | Пробка | 1 660 ₽ |
|
|
| 12 | 55-2747 | SCREW - base & eye bolt | 2 | |
| 55-2173 | FLATWASHER | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 13 | 91-1030 | BASE | 2 | |
| 14 | 55-5702 | SCREW - alternator | 1 | |
| 15 | 98-3536 | PLATE - compressor/alternator | 1 | |
| 16 | 55-5187 | SCREW - compressor | 4 | |
| 55-399 | WASHER - special | 4 | ||
| 17 | 55-3122 | NUT - compressor | 4 | |
| 55-2200 | LOCKWASHER | 4 | ||
| 55-2221 | FLATWASHER | 4 |
