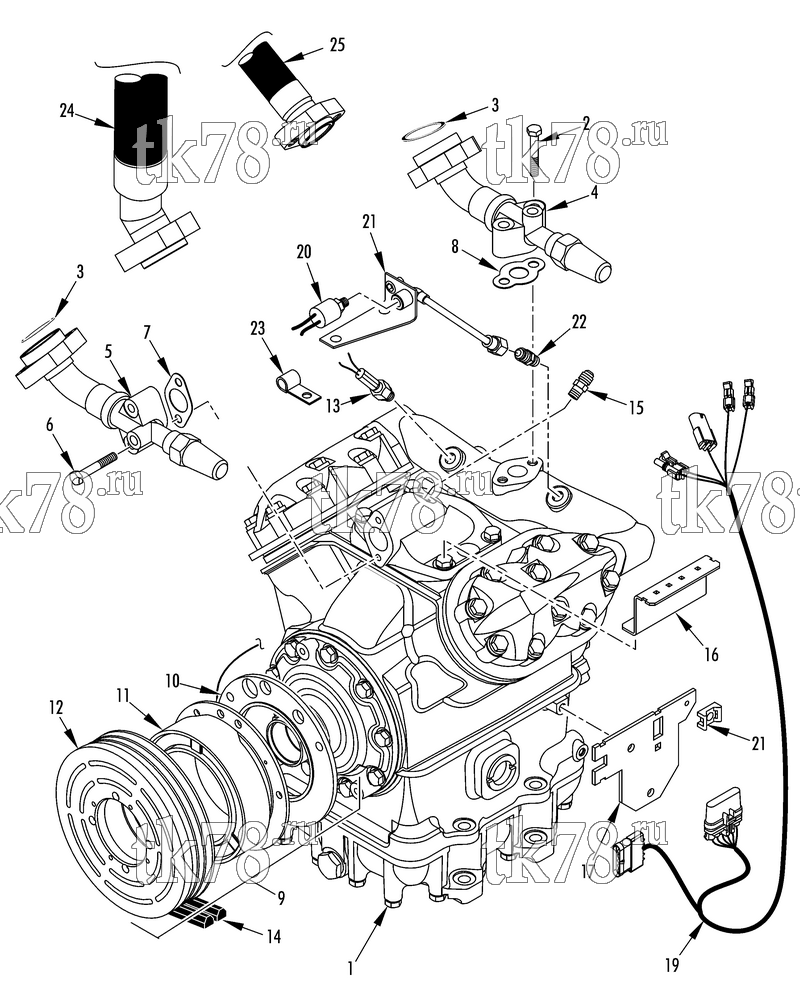

Установкa Thermo King ATHENIA 960-M25, M25A, M25B & M25C схема COMPRESSOR GROUP (1E31452G14, KIT 701721) – 244D8
Обновление от: 6/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 8102-917 | COMPRESSOR - X430 C5 (subassy reman, see 228E5) | 1 | ||
| 2 | 55-6776 | SCREW - discharge valve | 2 | |
| 55-6804 | WASHER - sealing | 2 | ||
| 3 | 33-3191 | GASKET - flat | 2 | |
| 4 | 61-5172 | VALVE - discharge (see 244D0) | 1 | |
| 5 | 61-5173 | VALVE - suction (see 244E1) | 1 | |
| 6 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 7 | 33-2541 | GASKET - suction valve | 1 | |
| 8 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 9 | NSS | CLUTCH - assembly | 1 | |
| 107-150 | KIT - clutch drive repair (see 153E7) | 1 | ||
| 10 | 77-1083 | PLATE | 1 | |
| 11 | 45-2031 | FIELD - clutch (24VDC w/2-pin, tower connector) | 1 | |
| 12 | 77-1414 | PULLEY (3-3V grooves, 8.0 in od) | 1 | |
| 13 | 41-3345 | SENSOR - thermistor (discharge) | 1 | |
| 14 | NSS | BELT - compressor (not supplied by Thermo King) | 1 | |
| 15 | 11-2886 | VALVE - assembly | 1 | |
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 33-768 | GASKET - adapter | 1 | ||
| 203-393 | SEALER - thread | A/R | ||
| 16 | 92-5946 | BRACKET - compressor harness | 1 | |
| 17 | 92-5945 | BRACKET - compressor harness | 1 | |
| 55-3834 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 18 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-5047 | RIVET - mount | 1 | ||
| 19 | 41-4810 | HARNESS - compressor (see 246D2) | 1 | |
| 20 | 41-4146 | SWITCH - hpco | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 21 | 91-8288 | BRACKET - remote hpco | 1 | |
| 22 | 55-459 | COUPLING | 1 | |
| 23 | 55-9298 | CLAMP (0.187 dia) | 2 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 24 | 61-4888 | HOSE - suction | 1 | |
| 25 | 61-4887 | HOSE - discharge | 1 |
