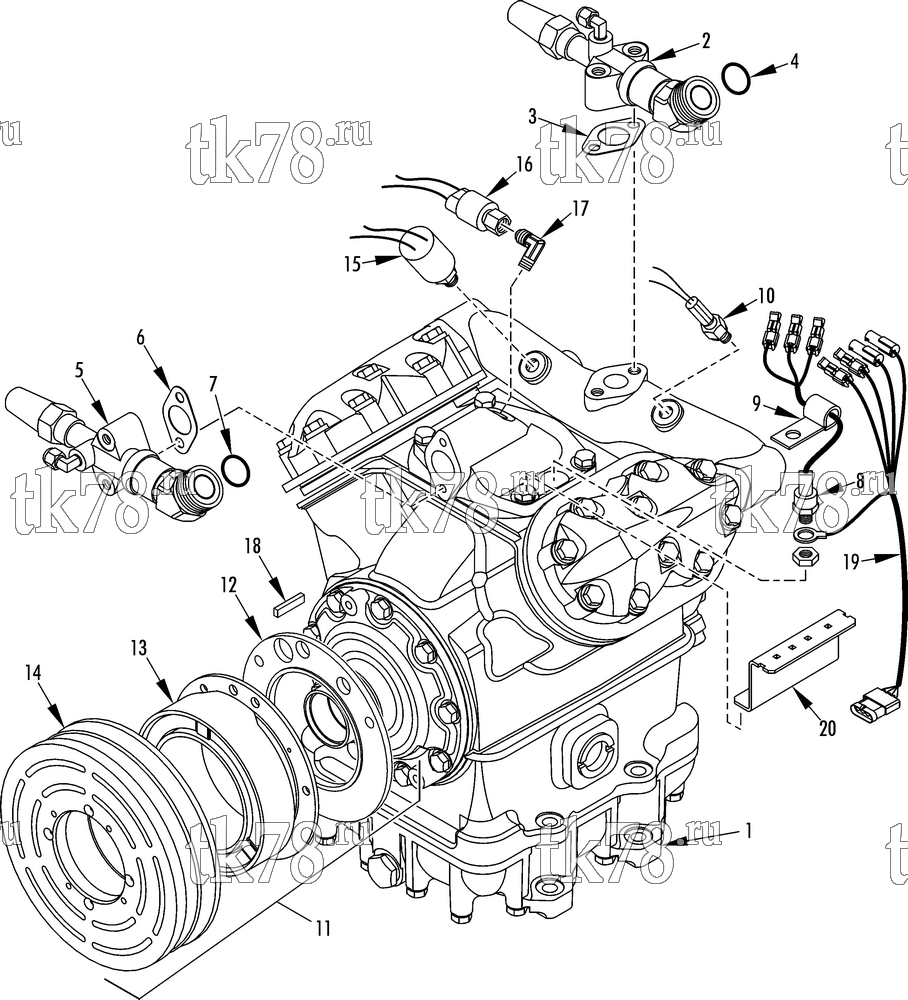

Установкa Thermo King ATHENIA 1000-M4, M4B & M4C схема COMPRESSOR GROUP (7348C93G14) – 248F4
Обновление от: 8/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 102-917 | COMPRESSOR - X430 C5 (subassy reman, see 228E5) | 1 | ||
| 2 | 66-4655 | VALVE - discharge (see 120F1) | 1 | |
| 55-6776 | SCREW - discharge valve | 2 | ||
| 55-6804 | WASHER - sealing | 2 | ||
| 3 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 4 | 33-1785 | O-RING | 1 | |
| 5 | 66-4656 | VALVE - suction (see 120F3) | 1 | |
| 55-201 | SCREW - suction valve | 2 | ||
| 55-895 | WASHER | 2 | ||
| 6 | 33-2541 | GASKET - suction valve | 1 | |
| 7 | 33-1777 | O-RING | 1 | |
| 8 | 44-7815 | DIODE (for connectors see 115D14) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin) | 3 | ||
| 55-2996 | LOCKWASHER - diode | 1 | ||
| 9 | 55-5261 | CLAMP - harness | 3 | |
| 10 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 11 | 107-192 | KIT - clutch drive repair (see 153E8) | 1 | |
| 12 | 77-1083 | PLATE | 1 | |
| 13 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 14 | 77-1663 | PULLEY (2-B/2-A grooves, 7.75/8.9 in od) | 1 | |
| 15 | 44-7814 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4523 | SWITCH - only | 1 | ||
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 16 | 44-8734 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 17 | 55-308 | ELBOW | 1 | |
| 33-768 | GASKET - flare | 1 | ||
| 18 | 55-9088 | KEY - shaft | 1 | |
| 19 | 41-1236 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-7330 | CONNECTOR - shroud (1-pin) | 2 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 2 | ||
| 20 | 92-5946 | BRACKET - compressor harness | 1 |
