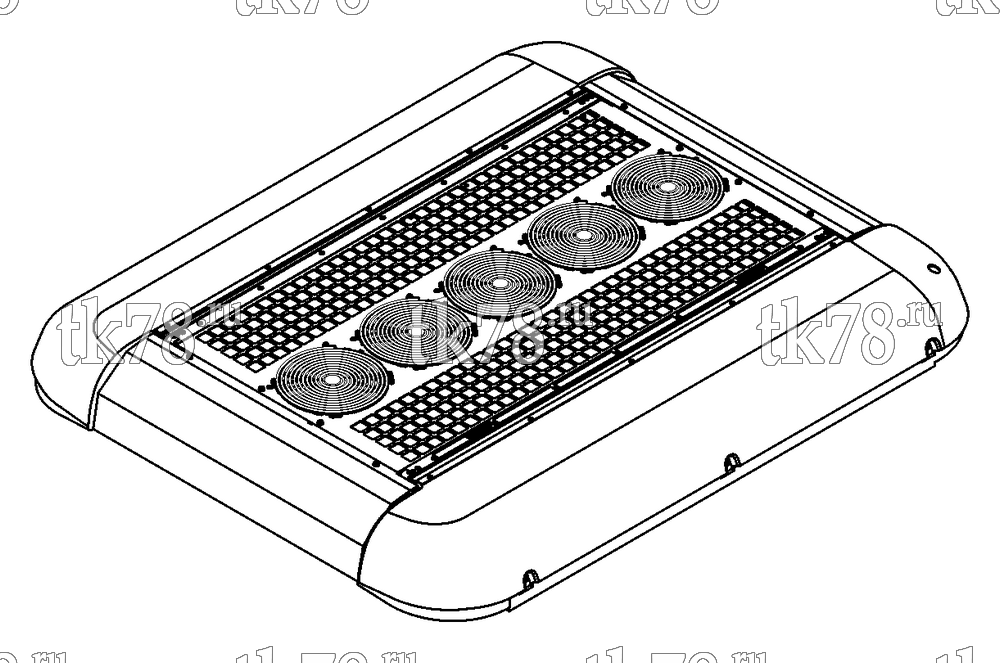

Установкa Thermo King ATHENIA 1000-M4, M4B & M4C схема ATHENIA 1000-M4, M4B & M4C REFERENCE SHEET – 15U73
Обновление от: 11/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901333 | Athenia 1000-M4 | 8/10 | ||
| 901445 | Athenia 1000-M4B | 8/10 | ||
| 901791 | Athenia 1000-M4C | 1/11 | ||
| 600374 | Athenia 1000-M4 R407c | 8/10 | ||
| 008612 | Generic Athenia | 8/10 | ||
| 008613 | Brushless motors | 8/10 | ||
| 008616 | Insulation | 8/10 | ||
| 008617 | Refrigerant R407c | 8/10 | ||
| 008810 | Unpainted Frame | 8/10 | ||
| 008814 | Roof Radius 10.5 M | 8/10 | ||
| 701720 | Compressor Kit X430 407c (M4) | 8/10 | ||
| 702037 | Return Filter | 8/10 | ||
| 702209 | Display Kit IntelligAIRE III | 8/10 | ||
| 702551 | Compressor Kit X430 407c (M4C) | 1/11 | ||
| 713925 | Alternator Capacitor Kit (NSD II) | 8/10 | ||
| 720151 | Compressor & Alternator Mounting Kit (M4B) | 8/10 | ||
| 720171 | Compressor Muffler Kit w/o Hose (M4B) | 8/10 | ||
| 800411 | Installation Kit | 8/10 | ||
| 800473 | Hose Kit | 8/10 | ||
| 800474 | Installation Kit | 8/10 | ||
| 800488 | System Configuration Kit | 8/10 | ||
| 800504 | Installation Kit | 1/11 | ||
| 800569 | Muffler & Hose Kit | 1/11 |
