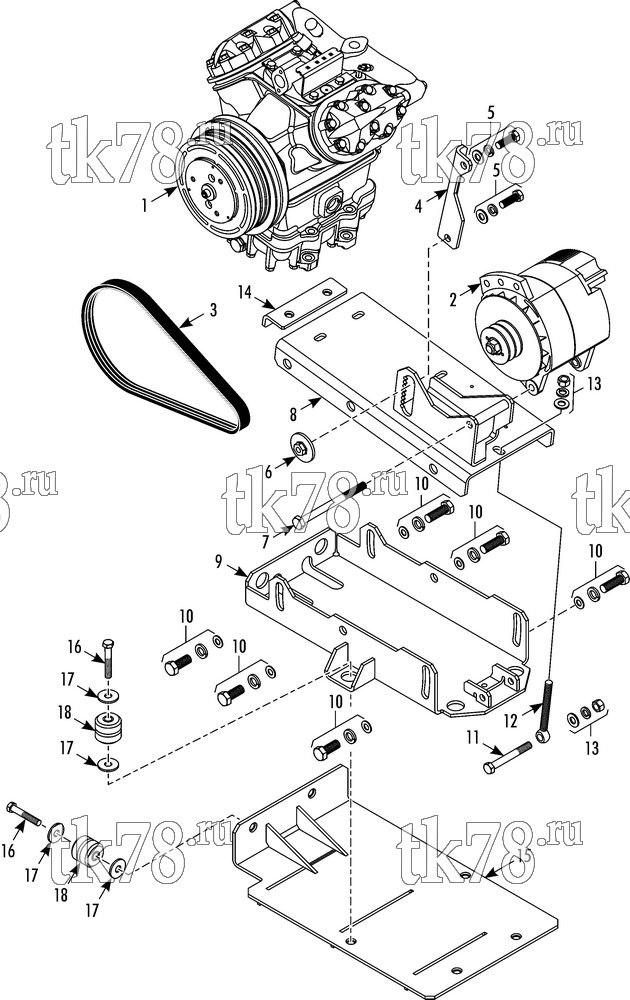

Установкa Thermo King ATHENIA 1000-M21 схема COMPRESSOR/ALTERNATOR MOUNTING GROUP – 264E9
Обновление от: 12/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 2 | 41-2791 | ALTERNATOR (see 186B4) | 1 | |
| 3 | 78-1286 | BELT (matched set) | 1 | |
| 78-1286 OEM | Ремень к-т мотор-компрессор CD MAX / CD-II MAX после 11/01 | 14 640 ₽ |
|
|
| 4 | 92-9916 | BRACKET - alternator | 1 | |
| 5 | 55-3486 | SCREW - bracket | 2 | |
| 55-2173 | FLATWASHER | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 6 | 77-2409 | SPROCKET - adjusting | 1 | |
| 7 | 55-5702 | SCREW - alternator | 1 | |
| 8 | 92-9917 | BASE - upper | 1 | |
| 9 | 93-602 | BASE - lower | 1 | |
| 10 | 51-2279 | SCREW - base | 6 | |
| 55-4767 | FLATWASHER | 6 | ||
| 55-451 | LOCKWASHER | 6 | ||
| 11 | 55-4796 | SCREW - eye bolt | 1 | |
| 12 | 92-6932 | BOLT - eye | 1 | |
| 13 | 55-287 | NUT | 2 | |
| 55-2038 | FLATWASHER | 3 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 14 | 93-603 | BRACKET | 2 | |
| 55-3486 | SCREW - bracket | 4 | ||
| 55-399 | WASHER | 4 | ||
| 15 | 93-604 | BASE - chassis | 1 | |
| 16 | 55-4795 | SCREW | 6 | |
| 17 | 55-5431 | FLATWASHER | 12 | |
| 18 | 51-2355 | MOUNT - isolator | 6 |
