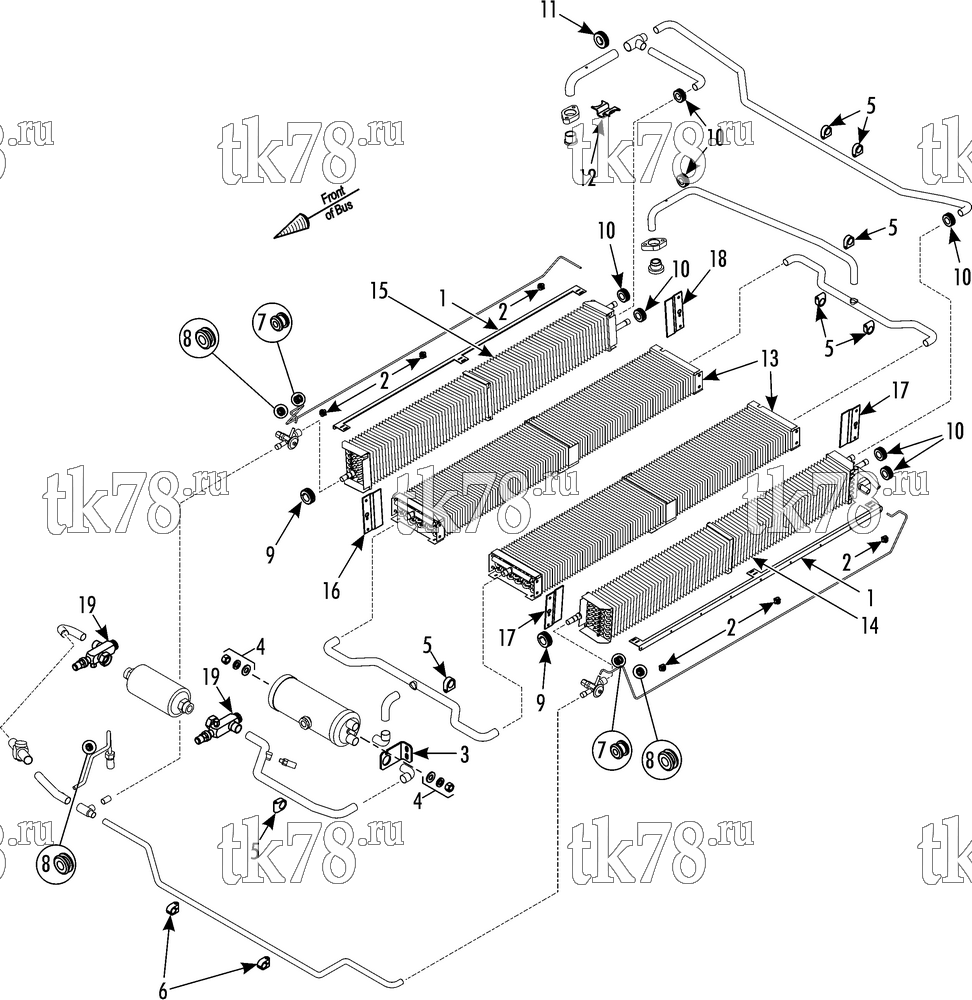

Установкa Thermo King ATHENIA 1000-M21 схема REFRIGERATION TUBES, CLAMPS & MOUNTING – 264E5
Обновление от: 7/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-601 | BRACKET - equalizer tube | 6 | |
| 55-3101 | RIVET | 2 | ||
| 2 | 51-2182 | MOUNT - bandwrap | 6 | |
| 55-2330 | BANDWRAP (1.75 dia) | 6 | ||
| 3 | 92-8428 | BRACKET - receiver | 2 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 55-2640 | NUT - receiver | 2 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 5 | 55-7013 | CLAMP - tube (.875 id) | 7 | |
| 6 | 91-758 | CLAMP - tube (.625 id) | 2 | |
| 55-3675 | SCREW - clamp | 9 | ||
| 55-1800 | LOCKWASHER | 9 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 7 | 33-2204 | GROMMET (1/4 id) | 2 | |
| 8 | 33-1692 | GROMMET (3/8 id) | 4 | |
| 9 | 33-1842 | GROMMET (1.0 id) | 2 | |
| 10 | 33-429 | GROMMET (7/8 id) | 7 | |
| 11 | 33-3608 | GROMMET (1-1/8 id) | 1 | |
| 12 | 92-4015 | BRACKET - adapters | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 13 | NSS | COIL - condenser (see Refrigeration Components) | 2 | |
| 55-8711 | INSERT | 16 | ||
| 55-2957 | SCREW - condenser | 24 | ||
| 55-1800 | LOCKWASHER | 24 | ||
| 55-2086 | FLATWASHER | 24 | ||
| 14 | NSS | COIL - evaporator (roadside, see Refrigeration Components) | 1 | |
| 15 | NSS | COIL - evaporator (curbside, see Refrigeration Components) | 1 | |
| 16 | 92-9232 | PLATE - pressure | 1 | |
| 17 | 92-8430 | PLATE - pressure | 2 | |
| 18 | 92-8429 | PLATE - pressure | 1 | |
| 55-2979 | SCREW - plate | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 19 | 66-5946 | VALVE - shutoff | 2 | |
| 55-8926 | SCREW - valve | 2 | ||
| 55-4931 | WASHER - special | 2 |
