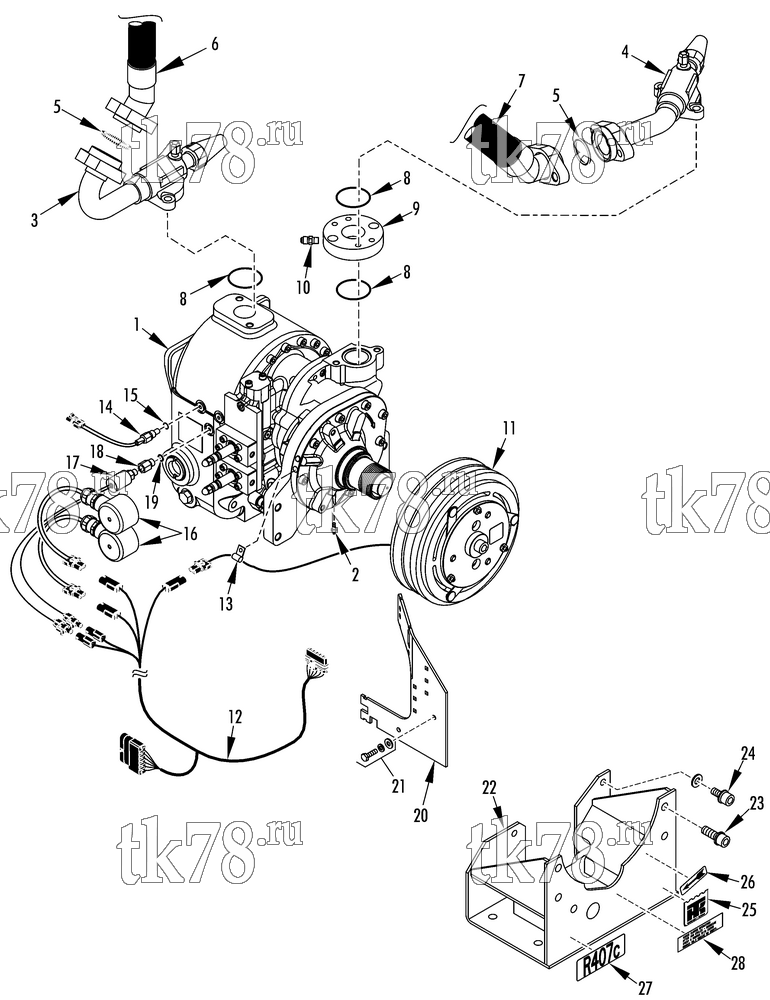

Установкa Thermo King ATHENIA 1000-M19, M19A & M19B схема COMPRESSOR GROUP (1E63245G05, KIT 702855) – 255D2
Обновление от: 8/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - screw QS391B (see 240H1) | 1 | |
| 2 | 55-2387 | FITTING - lubrication | 1 | |
| 3 | 61-5208 | VALVE - discharge (see 246A7) | 1 | |
| 55-9726 | SCREW - valve | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 4 | 61-5209 | VALVE - suction (see 246A6) | 1 | |
| 55-529 | SCREW - valve | 2 | ||
| 5 | 33-3191 | GASKET - flat | 2 | |
| 6 | 61-5107 | HOSE - discharge | 1 | |
| 7 | 61-5108 | HOSE - suction | 1 | |
| 8 | 33-230 | O-RING - valve/spacer (1.875 id) | 3 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 9 | 22-1178 | SPACER - suction valve | 1 | |
| 55-9731 | SCREW - spacer | 2 | ||
| 10 | 11-2886 | VALVE | 1 | |
| 11 | NSS | CLUTCH (see 172D7) | 1 | |
| 12 | 41-5209 | HARNESS - compressor (see 248G8) | 1 | |
| 13 | 55-9811 | CLAMP (0.250 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 14 | 41-3827 | SENSOR - thermistor (for connector see 115D14) | 1 | |
| 15 | 33-3381 | O-RING - thermistor | 1 | |
| 16 | 41-5213 | COIL (24V, for connector see 115D14) | 2 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 17 | 41-4486 | SWITCH - hpco | 1 | |
| 18 | 55-9730 | ADAPTER - switch | 1 | |
| 19 | 33-3381 | O-RING - adapter | 1 | |
| 20 | 92-5704 | BRACKET - mounting | 1 | |
| 21 | 55-2957 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 22 | 92-1309 | BRACKET - mounting | 1 | |
| 23 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 24 | 55-9727 | SCREW - bracket | 4 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 25 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 26 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 27 | 91-5459 | NAMEPLATE - R407c | 1 | |
| 28 | 99-7517 | NAMEPLATE - Clutch Maintenance | 1 |
