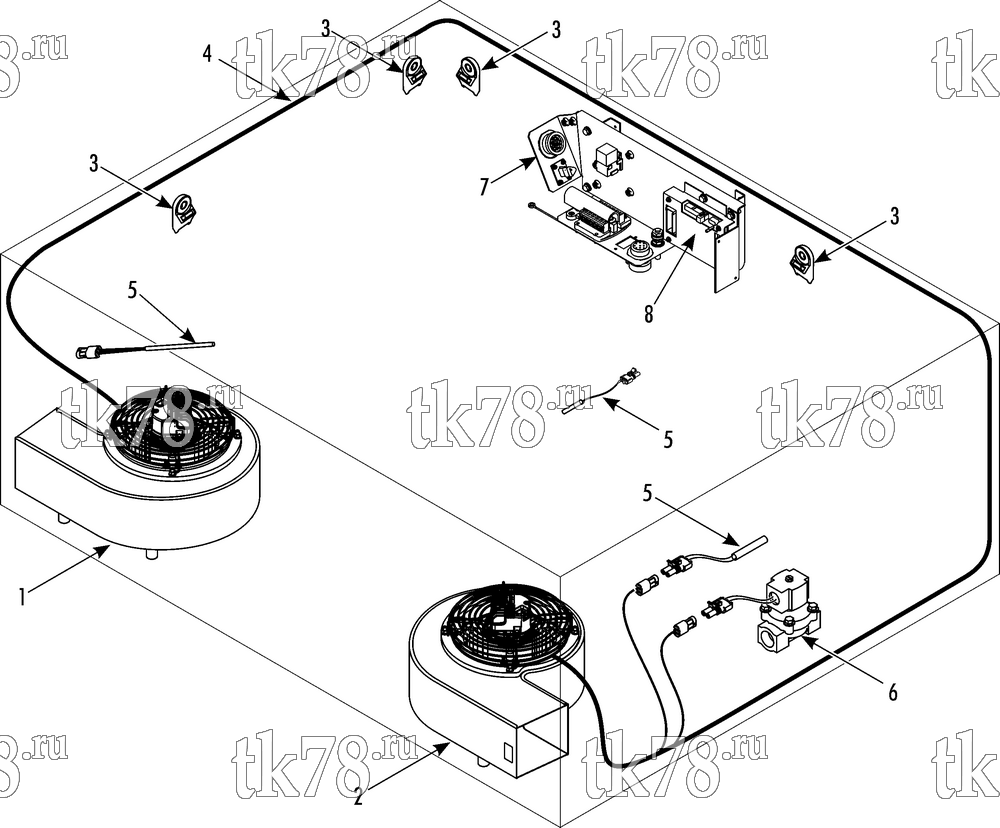

Установкa Thermo King ATH-M2 схема ELECTRICAL COMPONENTS (PRIMARY) – 269H7
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 51-2038 | MOUNT - band wrap | A/R | |
| 55-2977 | SCREW - mount | A/R | ||
| 55-4953 | NUT | A/R | ||
| 51-2220 | BANDWRAP | A/R | ||
| 4 | 42-917 | HARNESS - main, IntelligAIRE III (see 264G7) | 1 | |
| 5 | 41-4157 | SENSOR - temperature, coolant (see 115D14 for connectors) | 5 | |
| 6 | 41-9427 | VALVE - solenoid, water (see heater components) | 1 | |
| 7 | NSS | PANEL - control assembly (see 264F8) | 1 | |
| 8 | 41-9353 | MODULE - main, IntelligAIRE III (see 264F8) | 1 |
