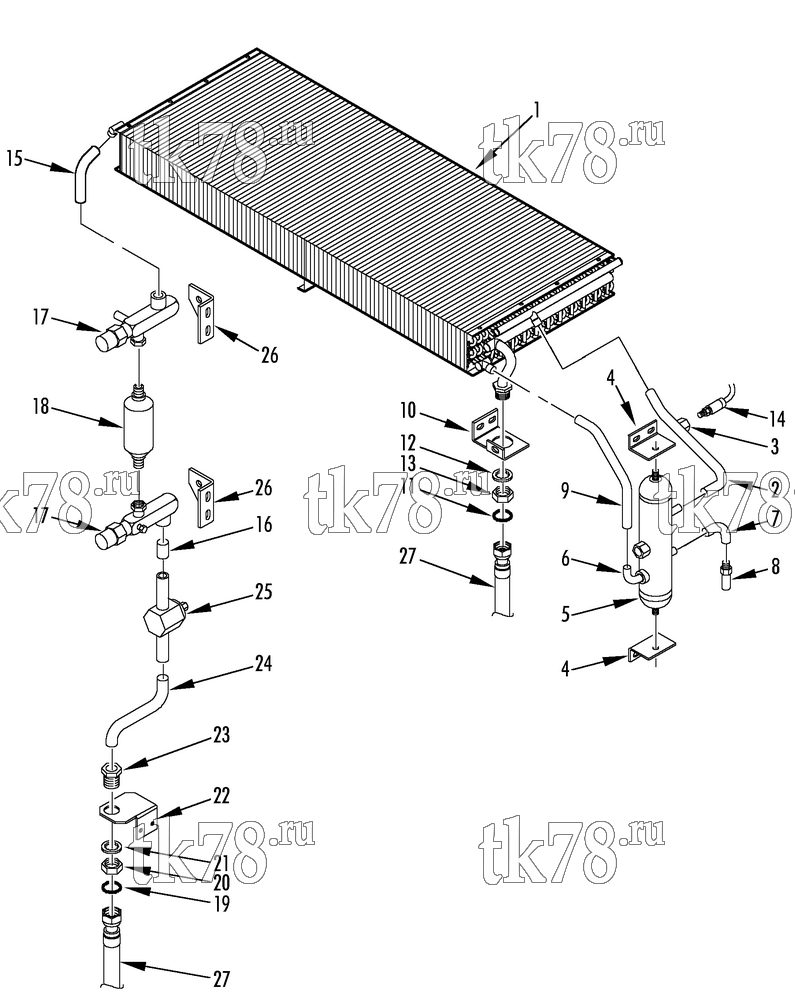

Установкa Thermo King AT8 схема CONDENSER REFRIGERATION (M2) – 149E6
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1536 | COIL - condenser/subcool | 1 | |
| 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | ||
| 99-9554 | GASKET - coil | A/R | ||
| 55-3059 | NUT - captive (1/4-20) | 8 | ||
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 2 | 61-2450 | TUBE - coil to receiver | 1 | |
| 3 | 66-4553 | FITTING - saddle | 1 | |
| 4 | 91-2860 | BRACKET - receiver tank | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 5 | 67-2006 | TANK - receiver | 1 | |
| 55-4955 | LOCKNUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 6 | 55-1122 | ELBOW - receiver outlet | 1 | |
| 7 | 55-636 | ELBOW - relief valve | 1 | |
| 8 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 66-2297 | ADAPTER - relief valve | 1 | ||
| 9 | 61-2451 | TUBE - receiver to subcool | 1 | |
| 55-7013 | CLAMP - tube support | 1 | ||
| 55-3675 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 10 | 91-2857 | BRACKET - o-ring seal fitting | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 11 | 33-1777 | O-RING - sealing | 1 | |
| 12 | 55-5742 | LOCKWASHER (#20) | 2 | |
| 13 | 55-5739 | NUT - bulkhead (#20) | 2 | |
| 14 | 44-6349 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 15 | 66-9304 | TUBE - coil to shutoff valve | 1 | |
| 16 | 66-5948 | TUBE | 1 | |
| 17 | 66-5946 | VALVE - shutoff | 2 | |
| 55-3018 | SCREW - valve | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 18 | 306-221 | DEHYDRATOR | 1 | |
| 19 | 33-1785 | O-RING (#16) | 1 | |
| 20 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 21 | 55-5741 | LOCKWASHER (#16) | 1 | |
| 22 | 91-9059 | BRACKET - tube | 1 | |
| 55-4953 | LOCKNUT | 2 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 23 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 24 | 66-9305 | TUBE - indicator to adapter | 1 | |
| 25 | 66-6976 | INDICATOR - liquid | 1 | |
| 26 | 91-2861 | BRACKET - shutoff valve | 2 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 27 | N/A | TUBE (not supplied by Thermo King) | 1 |
