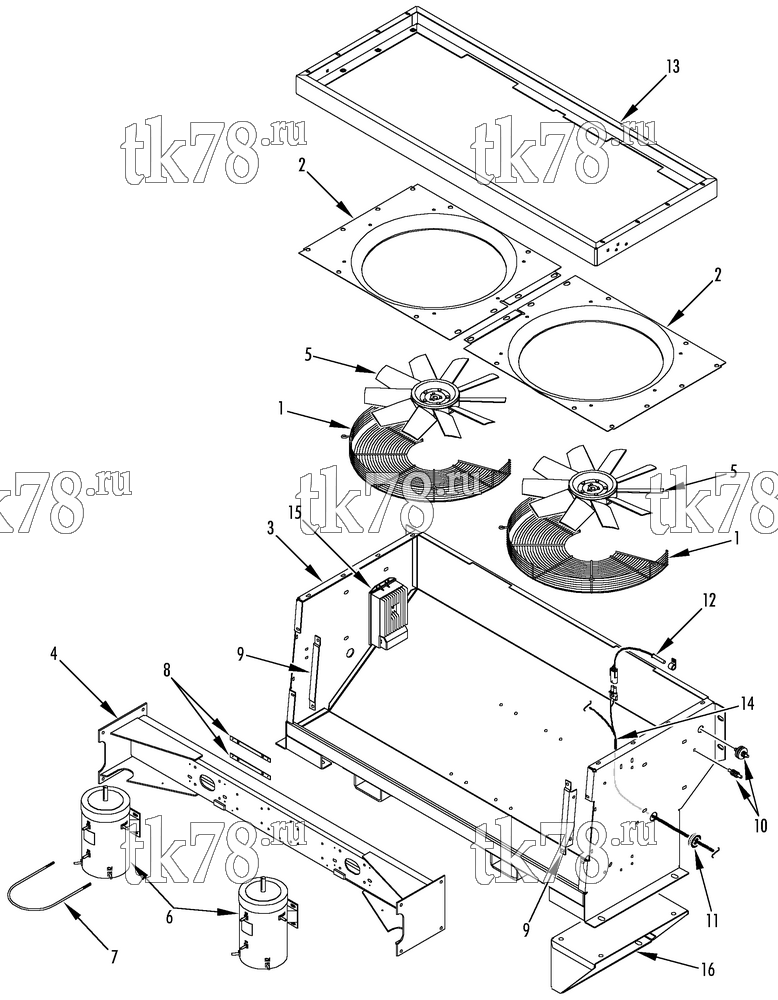

Установкa Thermo King AT8 схема CONDENSER STRUCTURAL & ELECTRICAL (M2) – 149E5
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5414 | GUARD - fan | 2 | |
| 55-2979 | SCREW - guard | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 2 | 98-3950 | ORIFICE - condenser fan | 2 | |
| 55-2977 | SCREW - orifice | 20 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 3 | 98-5066 | FRAME - condenser | 1 | |
| 4 | 98-3948 | MOUNT - motor | 1 | |
| 55-2683 | SCREW - motor mount | 8 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-4931 | WASHER - spacer | 8 | ||
| 55-4955 | NUT | 8 | ||
| 5 | 78-1077 | FAN - condenser | 2 | |
| 55-3089 | SCREW - fan | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 6 | 104-740 | MOTOR - fan | 2 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | WASHER - spacer | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 7 | 55-6970 | U-BOLT - motor support | 2 | |
| 55-2086 | FLATWASHER - U-bolt | 4 | ||
| 55-4953 | NUT | 4 | ||
| 8 | 99-6861 | NUTSTRIP - motor | 4 | |
| 9 | 91-2858 | BRACKET - side panel | 2 | |
| 55-2977 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 10 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-671 | NUT (hexjam, brass) | 8 | ||
| 55-448 | FLATWASHER - brass | 8 | ||
| 55-3066 | LOCKWASHER - internal (brass) | 8 | ||
| 55-3672 | LOCKWASHER - internal/external (brass) | 1 | ||
| 11 | 33-629 | GROMMET (1.0 id) | 1 | |
| 12 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 55-2239 | CLAMP - sensor | 1 | ||
| 13 | 98-3949 | PLENUM - condenser coil | 1 | |
| 55-2979 | SCREW - plenum | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-8711 | INSERT | 12 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 14 | 41-1870 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 15 | 41-3590 | DRIVE - motor | 2 | |
| 55-3490 | SCREW - drive | 8 | ||
| 16 | 92-5436 | BRACKET - unit mounting | 2 |
