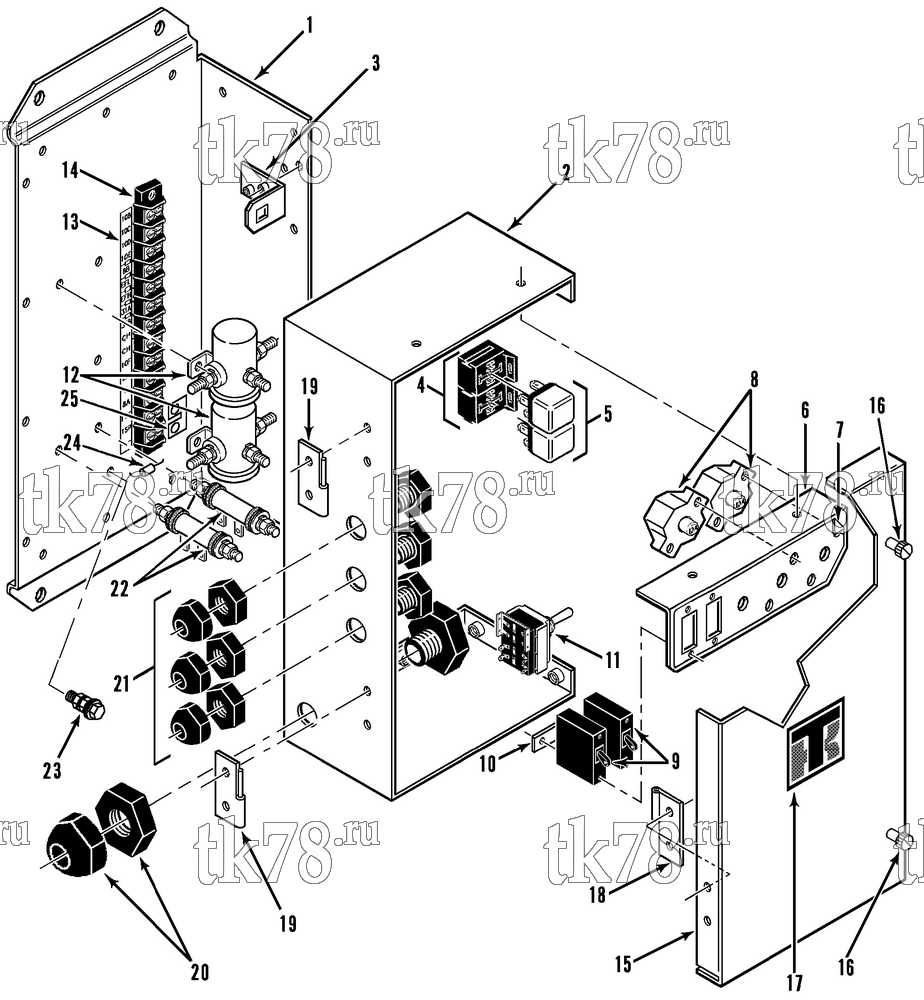

Установкa Thermo King AT8 схема CONDENSER CONTROL BOX – 135E8
Обновление от: 11/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2864 | PANEL - control box | 1 | |
| 55-3834 | SCREW - panel to frame | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 2 | 91-2865 | PANEL - control box | 1 | |
| 55-2995 | SCREW - panels | 14 | ||
| 55-2001 | FLATWASHER | 14 | ||
| 55-2964 | LOCKWASHER | 14 | ||
| 55-2965 | NUT | 14 | ||
| 3 | 91-2137 | BRACKET - cover | 2 | |
| 55-3059 | NUT - captive (1/4-20) | 2 | ||
| 4 | 44-5537 | SOCKET - relay | 2 | |
| 55-3024 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 5 | 41-896 | RELAY (1pdt, 24VDC) | 6 | |
| 6 | 91-4955 | BRACKET - circuit breaker | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 7 | 91-2868 | NAMEPLATE - circuit breaker | 1 | |
| 8 | 44-7216 | BREAKER - circuit (10 amp) | 3 | |
| 55-3843 | SCREW - circuit breaker | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 9 | 44-5494 | BREAKER - circuit (65 amp) | 2 | |
| 55-3513 | SCREW - circuit breaker | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 10 | 44-8094 | JUMPER - circuit breaker | 1 | |
| 11 | 44-490 | SWITCH - on/off | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 44-739 | BOOT - switch | 1 | ||
| 12 | 41-3987 | SOLENOID | 2 | |
| 55-3018 | SCREW - solenoid | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-2993 | LOCKWASHER | 4 | ||
| 13 | 91-7659 | MARKSTRIP | 1 | |
| 55-2868 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | FLATWASHER | 2 | ||
| 14 | 44-5980 | BOARD - terminal | 1 | |
| 15 | 91-2866 | COVER - control box | 1 | |
| 99-8986 | STRIP - gasket (25 ft) | A/R | ||
| 16 | 55-6771 | SCREW - cover | 2 | |
| 17 | 99-2789 | NAMEPLATE - TK Logo | 1 | |
| 18 | 99-8056 | HINGE - cover | 2 | |
| 19 | 99-8057 | HINGE - control box | 2 | |
| 55-2995 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 20 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2635 | NUT | 1 | ||
| 21 | 55-5900 | CONNECTOR - liquid tite | 3 | |
| 22 | 44-6004 | RESISTOR (15 ohm) | 2 | |
| 55-6976 | SCREW - resistor | 2 | ||
| 55-3006 | WASHER (fiber) | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 23 | 55-3000 | SCREW - ground | 1 | |
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 24 | 44-8765 | DIODE - terminal board | 1 | |
| 25 | 44-3579 | STRIP - jumper (terminal board) | 1 |
