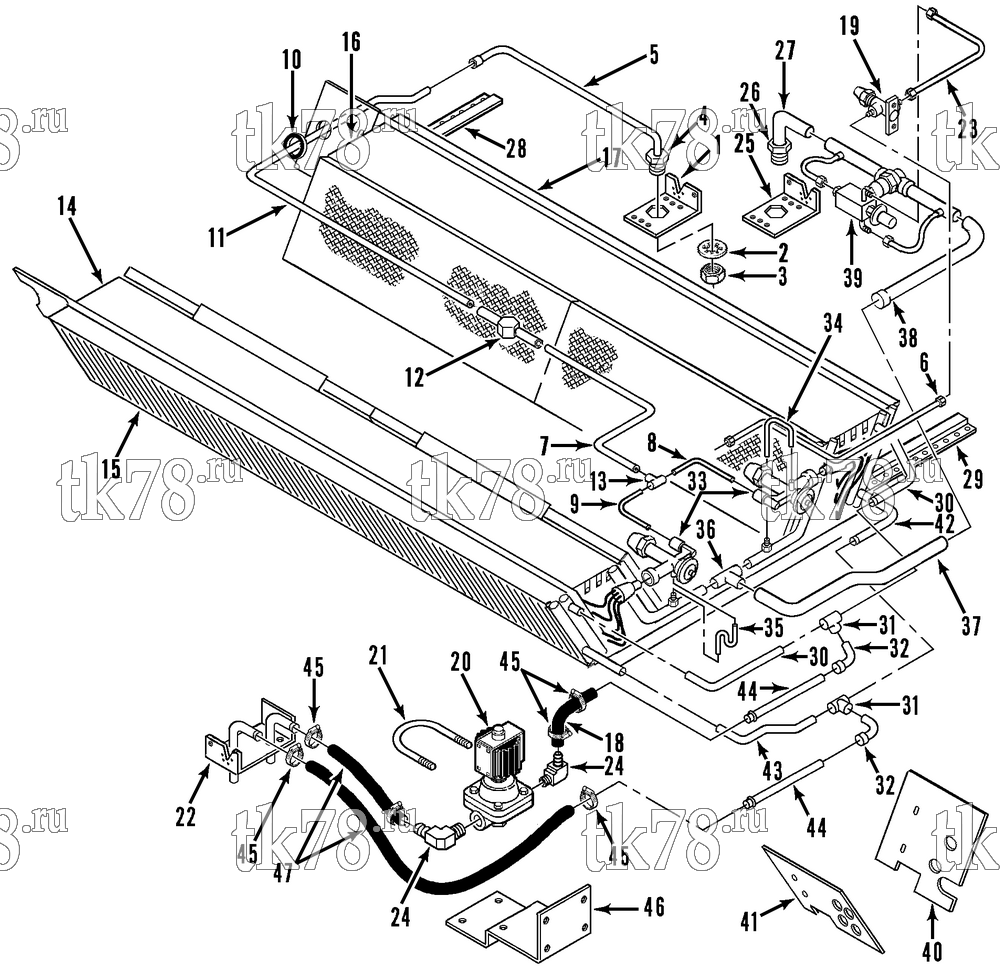

Установкa Thermo King AT8 схема REFRIGERATION - EVAPORATOR (AT-8) – 135E10
Обновление от: 5/13/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7662 | PLATE - fitting (#10) | 1 | |
| 2 | 55-6843 | LOCKWASHER | 1 | |
| 55-6029 | WASHER - special | 1 | ||
| 3 | 55-6811 | NUT - bulkhead | 1 | |
| 4 | 55-7064 | ADAPTER (#10) | 1 | |
| 5 | 66-8496 | TUBE - indicator to adapter | 1 | |
| 6 | 66-8479 | TUBE - valve | 1 | |
| 7 | 66-6822 | TUBE - indicator to tee | 1 | |
| 66-874 | FITTING | 1 | ||
| 8 | 66-6823 | TUBE - tee to expansion valve | 1 | |
| 9 | 66-6824 | TUBE - tee to expansion valve | 1 | |
| 10 | 33-489 | GROMMET (1-1/4 id) | 1 | |
| 33-287 | GROMMET (5/8 id) | 1 | ||
| 11 | 66-8483 | TUBE - liquid | 1 | |
| 12 | 66-1188 | INDICATOR - liquid | 1 | |
| 13 | 55-6222 | TEE | 1 | |
| 14 | 67-1127 | COIL - evaporator (curbside) | 1 | |
| 15 | 67-1064 | COIL - heater (curbside) | 1 | |
| 16 | 67-1128 | COIL - evaporator (roadside) | 1 | |
| 17 | 67-1066 | COIL - heater (roadside) | 1 | |
| 18 | 11-7918 | HOSE | 1 | |
| 19 | 66-992 | VALVE - shutoff | 1 | |
| 20 | 44-7591 | VALVE & CONNECTOR (for connectors see 115D14) | 1 | |
| 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | ||
| 21 | 55-4397 | U-BOLT | 2 | |
| 55-4953 | NUT - u-bolt | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 22 | 91-4658 | PLATE - bulkhead | 1 | |
| 55-1587 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 23 | 66-6594 | TUBE - valve | 1 | |
| 24 | 55-4694 | FITTING - hose (elbow) | 2 | |
| 25 | 91-4655 | PLATE - fitting | 1 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 26 | 55-7537 | ADAPTER (#20) | 1 | |
| 55-5739 | NUT (#20) | 1 | ||
| 55-5742 | LOCKWASHER (#20) | 1 | ||
| 27 | 66-6816 | TUBE - suction | 1 | |
| 28 | 91-3743 | BRACKET - coil | 1 | |
| 29 | 91-3742 | BRACKET - coil | 1 | |
| 30 | 66-7057 | TUBE - header to tee | 2 | |
| 31 | 55-5401 | TEE | 2 | |
| 32 | 66-634 | ELBOW | 2 | |
| 33 | 66-6817 | VALVE - expansion | 2 | |
| 61-2233 | SCREEN - inlet | 1 | ||
| 66-6933 | ELEMENT - power | 1 | ||
| 34 | 66-6818 | TUBE - equalizer | 1 | |
| 35 | 66-6819 | TUBE - equalizer | 1 | |
| 36 | 55-6508 | TEE | 1 | |
| 37 | 66-6820 | TUBE - tee to epr valve | 1 | |
| 38 | 66-6821 | TUBE - suction | 1 | |
| 39 | 66-6412 | VALVE - epr (primary unit, see 103E14) | 1 | |
| 66-5136 | VALVE - epr (secondary unit) | 1 | ||
| 40 | 91-4656 | PANEL (curbside) | 1 | |
| 41 | 91-4657 | PANEL (roadside) | 1 | |
| 42 | 66-7058 | TUBE - inlet header to tee | 1 | |
| 43 | 66-7059 | TUBE - inlet header to tee | 1 | |
| 44 | 66-7060 | TUBE - water (elbow) | 1 | |
| 45 | 55-1521 | CLAMP - hose | 6 | |
| 46 | 91-3754 | BRACKET - valve | 1 | |
| 47 | 12-419 | HOSE (3/4 id x 25 ft, silicone) | A/R |
