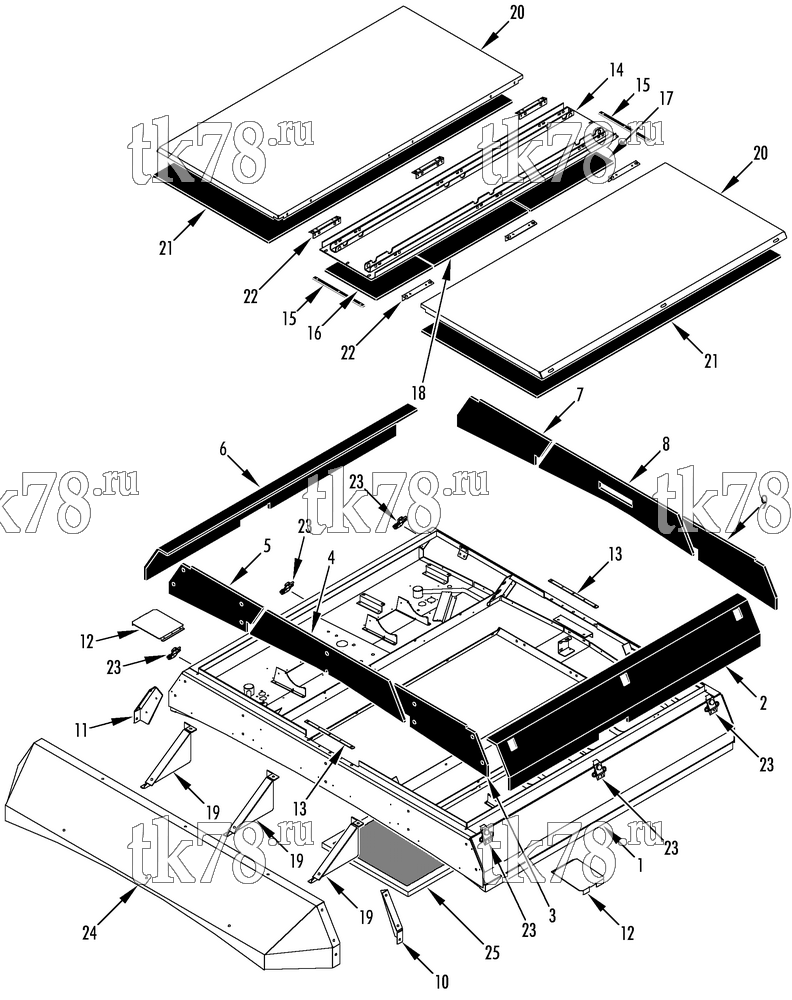

Установкa Thermo King AT8-Houston схема EVAPORATOR COVER GROUP – 189H0
Обновление от: 11/11/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6730 | FRAME - evaporator | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 2 | 33-3904 | INSULATION - roadside | 1 | |
| 3 | 92-1778 | INSULATION - rear roadside | 1 | |
| 4 | 33-3905 | INSULATION - rear center | 1 | |
| 5 | 92-1777 | INSULATION - rear curbside | 1 | |
| 6 | 33-3906 | INSULATION - curbside | 1 | |
| 7 | 92-2472 | NSULATION - curbside (rear, square hole) | 1 | |
| 8 | 92-1781 | INSULATION - center (rear) | 1 | |
| 9 | 92-2473 | INSULATION - front roadside | 1 | |
| 10 | 92-1751 | PANEL - cover support | 1 | |
| 11 | 92-1749 | PANEL - cover support | 1 | |
| 12 | 92-1752 | PANEL - block off | 2 | |
| 13 | 92-3313 | NUTSTRIP - cover support | 2 | |
| 55-3136 | RIVET - nutstrip | 4 | ||
| 14 | 98-4784 | COVER - center | 1 | |
| 55-2977 | SCREW - cover | 6 | ||
| 55-2945 | WASHER - special | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 15 | 33-2730 | GASKET - cover | 2 | |
| 16 | 91-6084 | INSULATION - rear | 1 | |
| 17 | 91-6744 | INSULATION - front | 1 | |
| 18 | 91-6746 | INSULATION - center | 1 | |
| 19 | 91-6087 | BRACKET - shroud (center) | 3 | |
| 20 | 98-6242 | COVER - evaporator | 2 | |
| 21 | 91-6086 | INSULATION - cover | 1 | |
| 22 | 91-6039 | HINGE - cover | 6 | |
| 55-3027 | SCREW - hinge | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4560 | NUT | 24 | ||
| 23 | 91-6774 | LATCH - cover | 6 | |
| 55-2991 | SCREW - cover | 24 | ||
| 55-3008 | WASHER - sealing | 24 | ||
| 55-4560 | NUT | 24 | ||
| 24 | 98-6729 | SHROUD - front | 1 | |
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-6034 | SCREW - shroud | 12 | ||
| 25 | N/A | FILTER - air (not supplied by Thermo King) | 1 |
