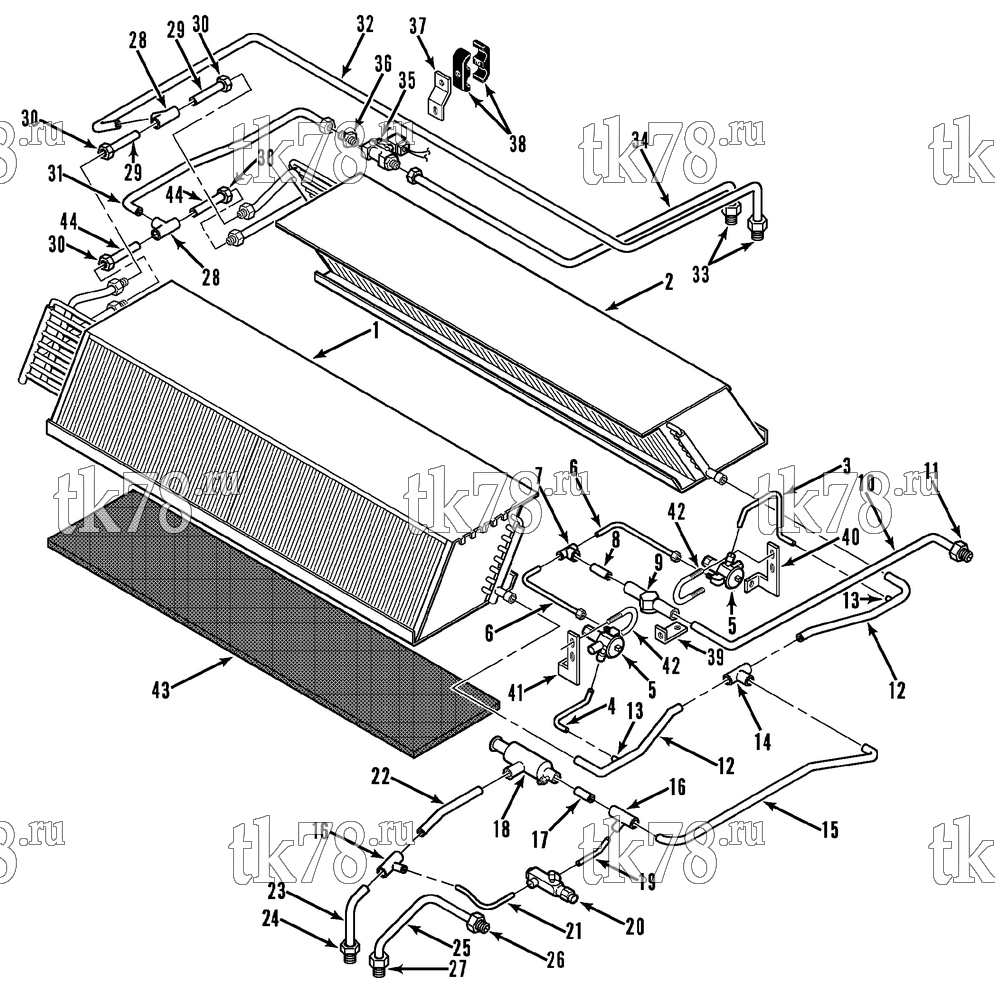

Установкa Thermo King AT6 схема EVAPORATOR REFRIGERATION COMPONENTS – 121F2
Обновление от: 12/10/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1219 | COIL (roadside) | 1 | |
| 2 | 67-1220 | COIL (curbside) | 1 | |
| 55-2991 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-6721 | INSERT | 20 | ||
| 3 | 66-7550 | TUBE - equalizer (curbside) | 1 | |
| 4 | 66-7551 | TUBE - equalizer (roadside) | 1 | |
| 5 | 66-7531 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-7401 | ELEMENT - power | 1 | ||
| 66-7582 | ELEMENT - valve | 2 | ||
| 6 | 66-7547 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 66-7546 | TUBE - indicator to tee | 1 | |
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 66-7545 | TUBE - adapter to indicator | 1 | |
| 11 | 55-9699 | ADAPTER - bulkhead | 1 | |
| 55-6812 | NUT - adapter | 1 | ||
| 12 | 66-7549 | TUBE - coil to tee | 2 | |
| 13 | 66-874 | FITTING - equalizer tube | 2 | |
| 14 | 55-6508 | TEE | 1 | |
| 15 | 66-7548 | TUBE - tee to tee | 1 | |
| 16 | 55-6013 | TEE | 2 | |
| 17 | 66-7552 | TUBE - tee to epr valve | 1 | |
| 18 | 66-2122 | VALVE - epr | 1 | |
| 19 | 66-7553 | TUBE - bypass | 1 | |
| 20 | 306-661 | VALVE - shutoff | 1 | |
| 306-115 | CAP - shutoff valve | 1 | ||
| 21 | 66-7555 | TUBE - bypass | 1 | |
| 22 | 66-7554 | TUBE - epr valve to tee | 1 | |
| 23 | 66-7556 | TUBE - tee to adapter | 1 | |
| 24 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5739 | NUT - bulkhead (#20) | 1 | ||
| 55-5742 | LOCKWASHER (1.75 id) | 1 | ||
| 25 | 66-7544 | TUBE - discharge | 1 | |
| 26 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 27 | 55-7380 | ADAPTER - bulkhead (#16) | 1 | |
| 55-5740 | NUT - bulkhead (#16) | 2 | ||
| 55-5741 | LOCKWASHER (1.5 id) | 2 | ||
| 28 | 55-7065 | TEE | 2 | |
| 29 | 66-7559 | TUBE - water | 2 | |
| 30 | 55-4737 | NUT | 4 | |
| 31 | 66-7558 | TUBE - valve to tee | 1 | |
| 32 | 66-7560 | TUBE - tee to adapter | 1 | |
| 33 | 55-7836 | ADAPTER - bulkhead | 2 | |
| 55-7706 | NUT - adapter | 2 | ||
| 34 | 66-7557 | TUBE - water (inlet) | 1 | |
| 35 | 44-7591 | VALVE & CONNECTOR - solenoid (for connectors see 115D14) | 1 | |
| 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | ||
| 36 | 55-2787 | COUPLING - valve | 2 | |
| 55-1587 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 37 | 91-6083 | BRACKET - tube clamp | 1 | |
| 38 | 55-7840 | CLAMP - tube | 3 | |
| 55-7976 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-1801 | NUT | 2 | ||
| 55-6526 | INSERT | 1 | ||
| 39 | 91-6077 | ANGLE - liquid indicator | 1 | |
| 55-1587 | SCREW - angle | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 40 | 91-6078 | BRACKET - expansion valve (curbside) | 1 | |
| 41 | 91-6079 | BRACKET - expansion valve (roadside) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 1 | ||
| 42 | 55-6788 | U-BOLT - expansion valve | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 43 | 91-6048 | BAFFLE - drain pan (foam, 8.4 in wide x 38.9 in lg) | 1 | |
| 91-6049 | BAFFLE - drain pan (foam, 8.4 in wide x 38.9 in lg) | 1 | ||
| 44 | 66-8554 | TUBE - water | 2 |
