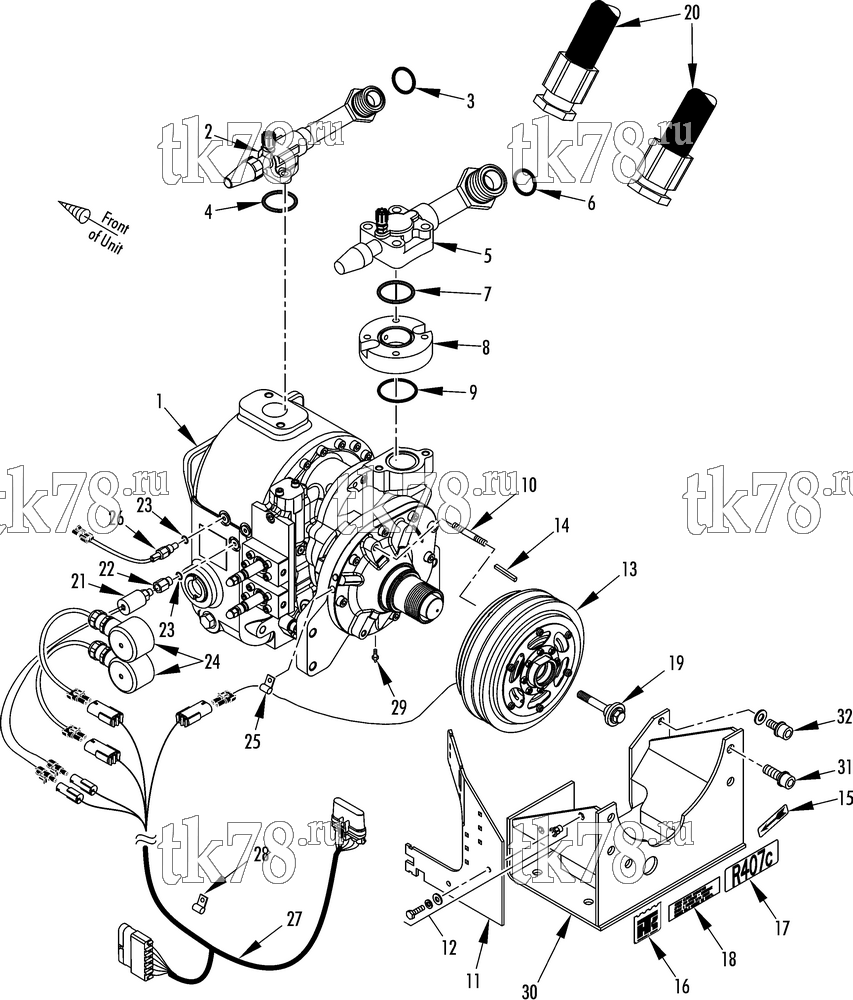

Установкa Thermo King AT19-M7 схема COMPRESSOR GROUP (1E61118G02, KIT 702121) – 247G4
Обновление от: 6/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-915 | COMPRESSOR - S616 (see 193H8) | 1 | |
| 2 | 61-6503 | VALVE - discharge (see 269C3) | 1 | |
| 55-9727 | SCREW - valve | 2 | ||
| 55-7024 | FLATWASHER | 2 | ||
| 3 | 33-1777 | O-RING - discharge | 1 | |
| 4 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 5 | 61-6507 | VALVE - suction (see 269D1) | 1 | |
| 55-7414 | SCREW - valve | 4 | ||
| 55-5914 | FLATWASHER | 4 | ||
| 6 | 33-920 | O-RING - suction | 1 | |
| 7 | 33-3708 | O-RING - valve | 1 | |
| 8 | 22-1171 | SPACER - suction valve | 1 | |
| 9 | 33-3707 | O-RING - spacer | 2 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT | 3 | ||
| 10 | 55-3451 | STUD - clutch | 3 | |
| 11 | 92-5704 | BRACKET - mounting | 1 | |
| 12 | 55-2957 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8979 | INSERT | 2 | ||
| 13 | 107-368 | CLUTCH (see 240A7) | 1 | |
| 14 | 55-9032 | KEY - clutch | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 15 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 16 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 17 | 91-7846 | NAMEPLATE - R407c | 1 | |
| 18 | 99-7517 | NAMEPLATE - Clutch Maintenance | 1 | |
| 19 | 51-1950 | SCREW - shaft | 1 | |
| 20 | NSS | HOSE - suction (not supplied by Thermo King) | 1 | |
| NSS | HOSE - discharge (not supplied by Thermo King) | 1 | ||
| 21 | 41-8235 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-6318 | SWITCH - only | 1 | ||
| 22 | 55-9730 | ADAPTER - switch | 1 | |
| 23 | 33-3381 | O-RING - sensor/adapter | 1 | |
| 24 | 41-5213 | COIL (24V) | 2 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 25 | 55-9811 | CLAMP (0.250 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 26 | 41-3827 | SENSOR - thermistor (for connector see 115D14) | 1 | |
| 27 | 41-5209 | HARNESS - compressor (see 248G8) | 1 | |
| 28 | 51-176 | CLAMP - harness | 1 | |
| 55-7172 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 29 | 55-2387 | FITTING - lubrication | 1 | |
| 30 | 92-5557 | BRACKET - mounting | 1 | |
| 55-4931 | WASHER - special | 4 | ||
| 31 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 32 | 55-9727 | SCREW - bracket | 4 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 |
