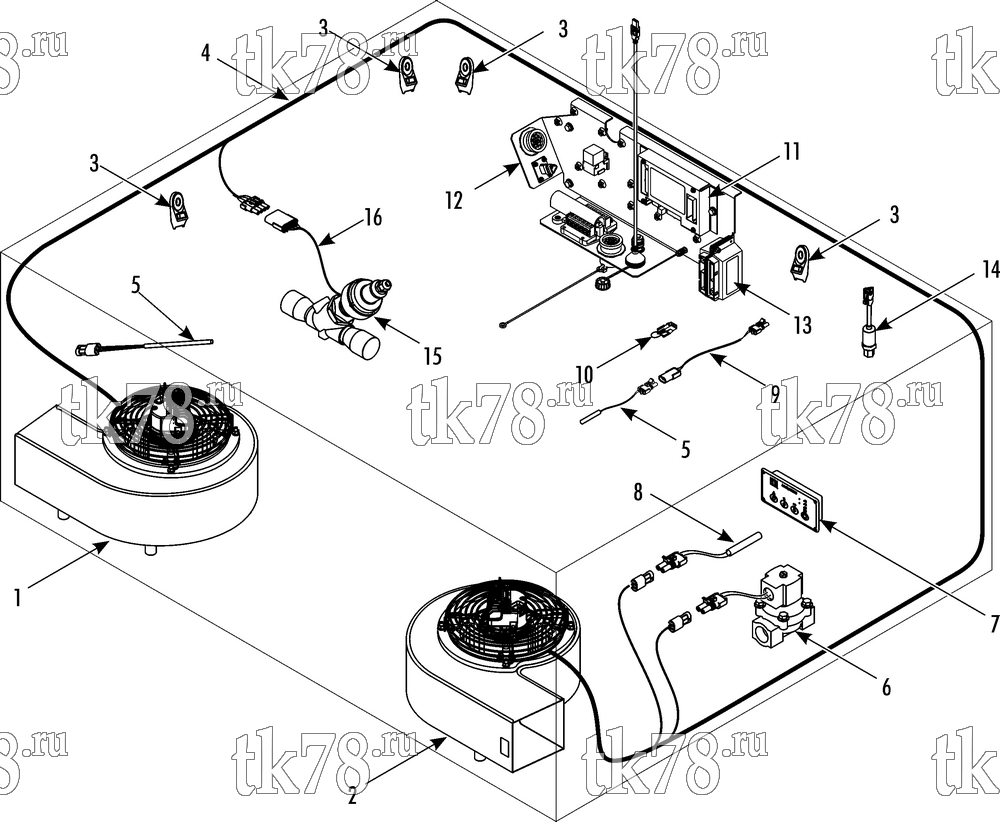

Установкa Thermo King AT19-M6 схема ELECTRICAL COMPONENTS (RLF1E) – 264G8
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 51-2038 | MOUNT - band wrap | A/R | |
| 55-2977 | SCREW - mount | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 55-4953 | NUT | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 4 | 42-917 | HARNESS - main, IntelligAIRE III (see 264G7) | 1 | |
| 5 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 5 | |
| 6 | 41-9427 | VALVE - solenoid, water (see heater components) | 1 | |
| 7 | 45-2339 | MODULE - display IntelligAIRE III | 1 | |
| 8 | 41-4157 | SENSOR - water (see 115D14 for connectors) | 1 | |
| 9 | 41-9436 | HARNESS - return air sensor (see 115D14 for connectors) | 1 | |
| 10 | 42-150 | HARNESS - jumper | 1 | |
| 11 | 41-9353 | MODULE - main, IntelligAIRE III (see 264G6) | 1 | |
| 12 | NSS | PANEL - control assembly (see 264G6) | 1 | |
| 13 | 41-9354 | MODULE - floor heat IntelligAIRE III (optional) | 1 | |
| 14 | 41-9044 | TRANSDUCER - suction | 1 | |
| 15 | 61-5940 | VALVE - epr | 1 | |
| 40-1169 | KIT - repair, epr valve | |||
| 16 | 42-408 | HARNESS - valve | 1 | |
| 44-7880 | CONNECTOR - shroud (4 pin) | 1 | ||
| 44-5883 | TERMINAL - male (20-18 ga) | 4 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 4 |
