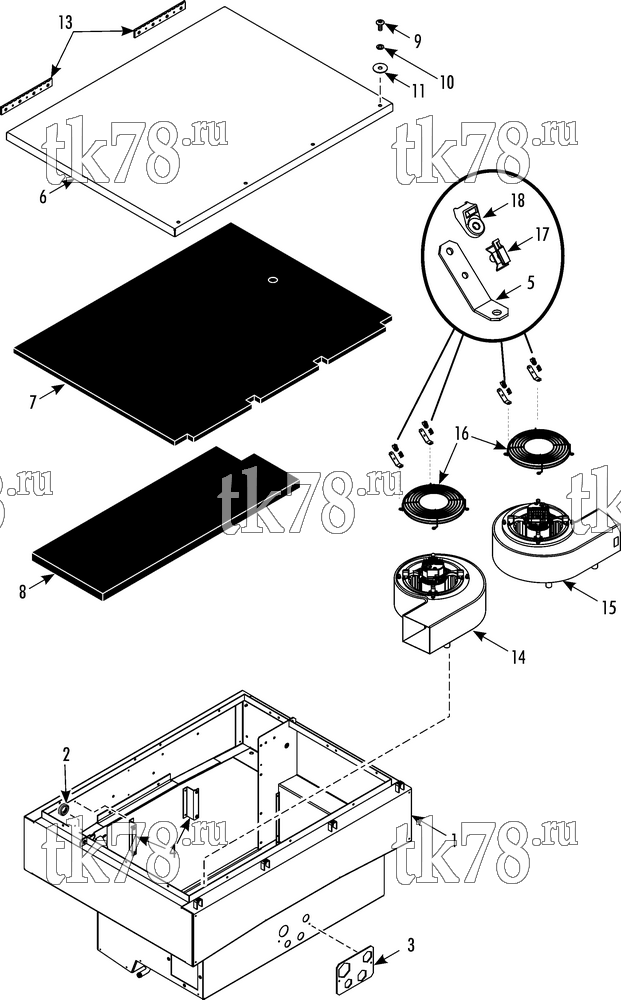

Установкa Thermo King AT19-M1 схема EVAPORATOR STRUCTURAL & BLOWERS (RLF1E) – 260A0
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8992 | FRAME - evaporator | 1 | |
| 55-8798 | INSERT (10-32) | 2 | ||
| 55-8711 | INSERT (1/4-20) | 14 | ||
| 2 | 33-1283 | GROMMET (.9375 id) | 1 | |
| 3 | 92-9752 | PLATE - anti rotation | 1 | |
| 55-3101 | RIVET | 2 | ||
| 4 | 92-8410 | BRACKET - control panel | 2 | |
| 55-5047 | RIVET | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 5 | 92-8829 | BRACKET - harness | 4 | |
| 55-2977 | SCREW - mount | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 6 | 98-8510 | COVER - evaporator | 1 | |
| 7 | 33-4633 | INSULATION - cover (armaflex) | 1 | |
| 8 | 33-4634 | INSULATION - cover (acoustic) | 1 | |
| 9 | 55-2957 | SCREW - cover | 4 | |
| 10 | 55-1800 | LOCKWASHER | 4 | |
| 11 | 55-4742 | WASHER - special | 4 | |
| 12 | 92-8484 | PLATE - anti rotation (coolant fittings) | 1 | |
| 55-3101 | RIVET - plate | 1 | ||
| 13 | 91-9730 | HINGE - cover | 2 | |
| 55-3027 | SCREW | 14 | ||
| 55-2001 | FLATWASHER | 28 | ||
| 55-4560 | NUT | 14 | ||
| 14 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 15 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 16 | 92-8306 | GUARD - blower | 2 | |
| 17 | 55-9704 | CLIP - self locking | 2 | |
| 18 | 51-2038 | MOUNT - band wrap | 4 |
