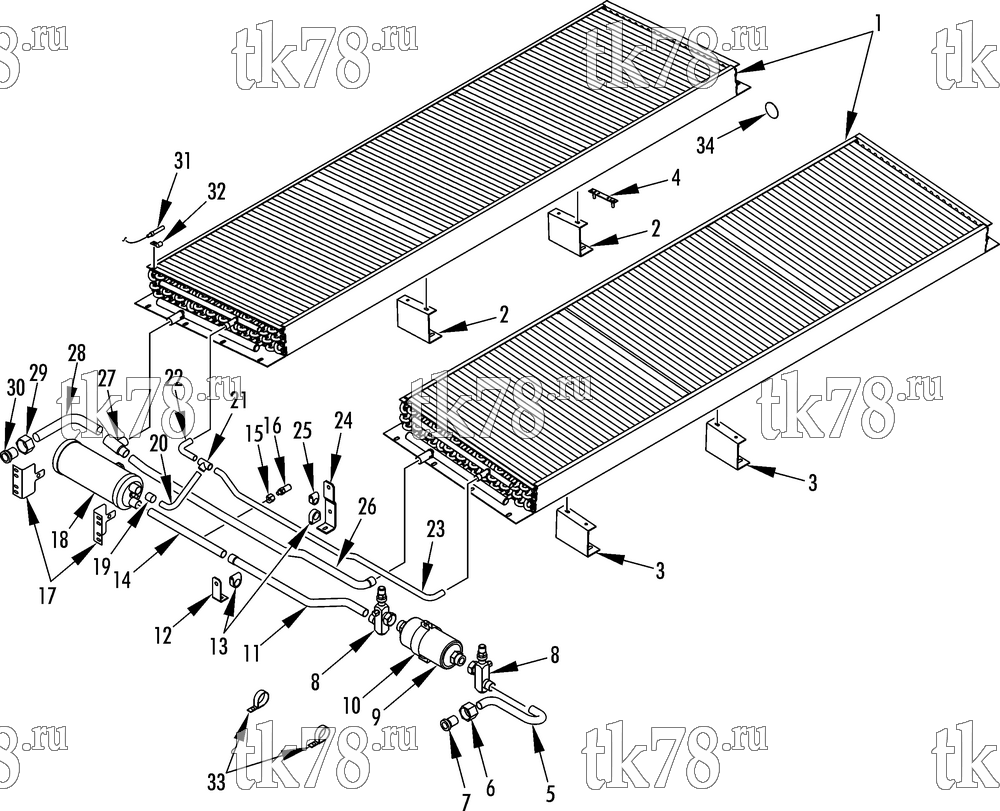

Установкa Thermo King AT18-M5 схема REFRIGERATION COMPONENTS - CONDENSER (R5C) – 220F1
Обновление от: 8/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2287 | COIL - condenser | 2 | |
| 55-2977 | SCREW - coil | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2945 | WASHER - special (.281 id) | 16 | ||
| 2 | 92-6103 | BRACKET - support, coil | 2 | |
| 3 | 92-6104 | BRACKET - support, coil | 2 | |
| 4 | 92-6099 | PLATE - boltstrip | 4 | |
| 55-4953 | NUT - bracket | 16 | ||
| 55-2945 | WASHER - special (.281 id) | 16 | ||
| 5 | 61-3899 | TUBE - fitting to valve | 1 | |
| 6 | 55-5936 | NUT - shoulder | 1 | |
| 7 | 55-5938 | SLEEVE - adapter (#16) | 1 | |
| 8 | 66-5946 | VALVE - shutoff | 2 | |
| 55-8926 | SCREW - valve | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-4931 | WASHER - special (.406 id) | 2 | ||
| 9 | 306-221 | DEHYDRATOR | 1 | |
| 33-594 | O-RING (7/8 id) | 2 | ||
| 10 | 55-2192 | HANGER - dehydrator | 1 | |
| 55-3505 | SCREW - hanger | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 11 | 61-3900 | TUBE - valve to receiver tank | 1 | |
| 12 | 92-6105 | BRACKET - tube | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 13 | 55-7013 | CLAMP - tube | 2 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 14 | 61-3901 | TUBE - receiver tank to valve | 1 | |
| 15 | 66-4553 | FITTING - saddle | 1 | |
| 16 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 17 | 92-6106 | BRACKET - receiver tank | 2 | |
| 55-4953 | NUT - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 18 | 67-2114 | TANK - receiver | 1 | |
| 67-2668 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL - sight glass | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 55-4955 | NUT - receiver tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 19 | 55-5293 | BUSHING (7/8 ftg - 5/8 sld) | 1 | |
| 20 | 61-3902 | TUBE - liquid line receiver to tee | 1 | |
| 21 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 22 | 61-3903 | TUBE - liquid line tee to header | 1 | |
| 23 | 61-3904 | TUBE - liquid line tee to header | 1 | |
| 24 | 92-6383 | BRACKET - support tube | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 25 | 91-758 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 26 | 61-3905 | TUBE - discharge to tee | 1 | |
| 27 | 55-8968 | TEE (1 1/8 x 7/8 x 7/8) | 1 | |
| 28 | 61-3906 | TUBE - tee to fitting (assembly) | 1 | |
| 92-6107 | TUBE - tee to fitting | 1 | ||
| 29 | 55-5935 | NUT | 1 | |
| 30 | 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 31 | 41-4157 | SENSOR - temperature | 1 | |
| 32 | 51-151 | CLAMP - sensor | 2 | |
| 55-2957 | SCREW - clamp | 4 | ||
| 33 | 51-179 | CLAMP (1.437 dia) | 2 | |
| 55-2977 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 34 | 51-1617 | PLUG - button | 2 | |
| 33-1770 | GROMMET (1.5 id) | 2 |
