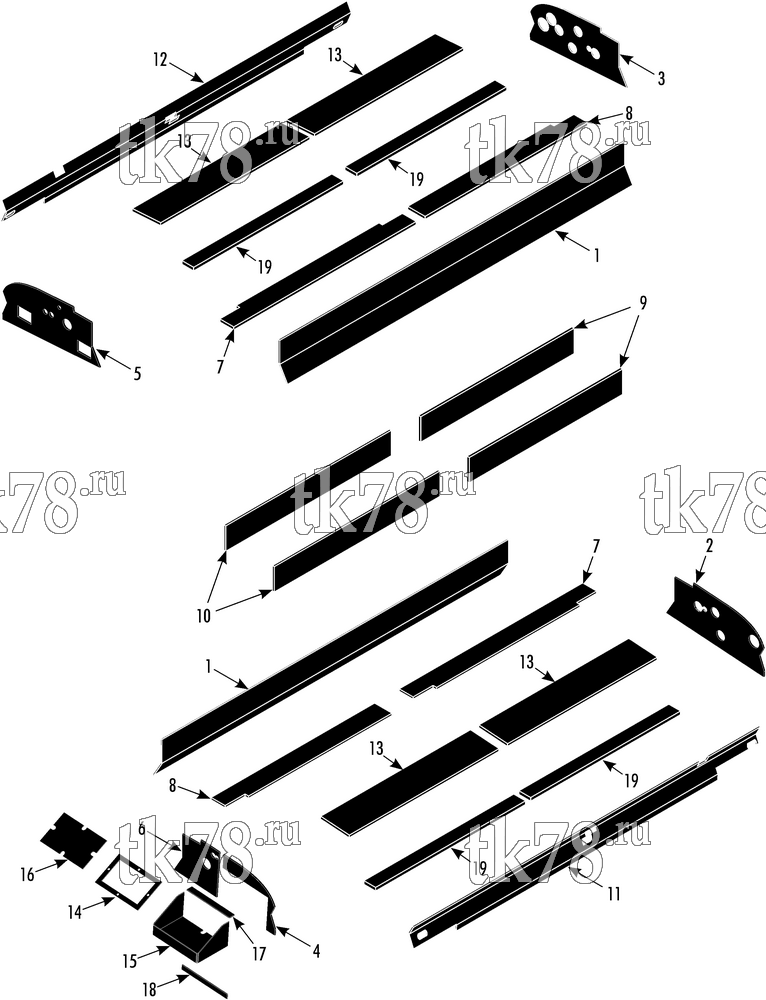

Установкa Thermo King AT17-M6 схема INSULATION – 258B8
Обновление от: 12/21/11
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 33-4873 | INSULATION - fresh air | 2 |
| 2 | 33-4871 | INSULATION - block off plate | 1 |
| 3 | 33-4872 | INSULATION - block off plate | 1 |
| 4 | 33-4815 | INSULATION - block off plate | 1 |
| 5 | 33-4869 | INSULATION - block off plate | 1 |
| 6 | 33-4870 | INSULATION - evaporator frame end | 1 |
| 7 | 33-4654 | INSULATION - return air | 2 |
| 8 | 33-4655 | INSULATION - return air | 2 |
| 9 | 33-4656 | INSULATION - condenser (rear) | 2 |
| 10 | 33-4657 | INSULATION - condenser (front) | 2 |
| 11 | 33-4658 | INSULATION - evaporator outer wall | 1 |
| 12 | 33-4659 | INSULATION - evaporator outer wall | 1 |
| 13 | 33-4660 | INSULATION - evaporator coil, top | 2 |
| 14 | 33-4812 | GASKET - cover, electrical box | 1 |
| 15 | 33-4813 | INSULATION - electrical box | 1 |
| 16 | 33-4814 | INSULATION - cover, electrical box | 1 |
| 17 | 33-4811 | INSULATION - top, electrical box | 1 |
| 18 | 33-4810 | INSULATION - block off plate | 1 |
| 19 | 33-4874 | INSULATION - evaporator coil, bottom | 4 |
