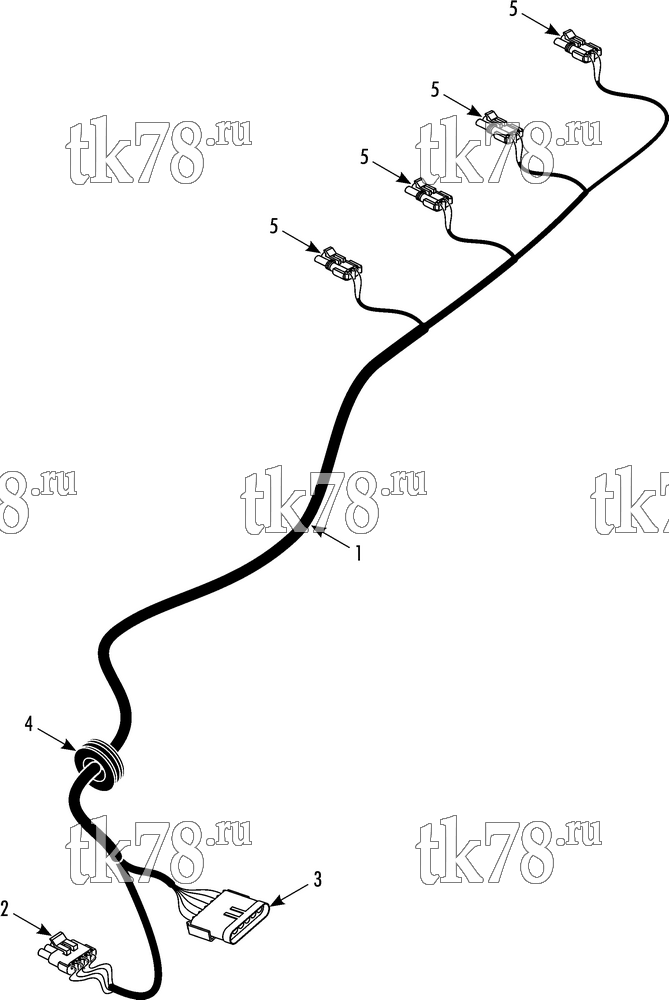

Установкa Thermo King AT17-M3 схема HARNESS CONDENSER FANS – 255F4
Обновление от: 10/19/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-266 | HARNESS - condenser (4 fans) | 1 | |
| 2 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue) | 4 | ||
| 3 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue) | 6 | ||
| 4 | 33-452 | GROMMET (.875 id) | 1 | |
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 4 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 8 | ||
| 44-6324 | SEAL - cable (blue) | 8 |
