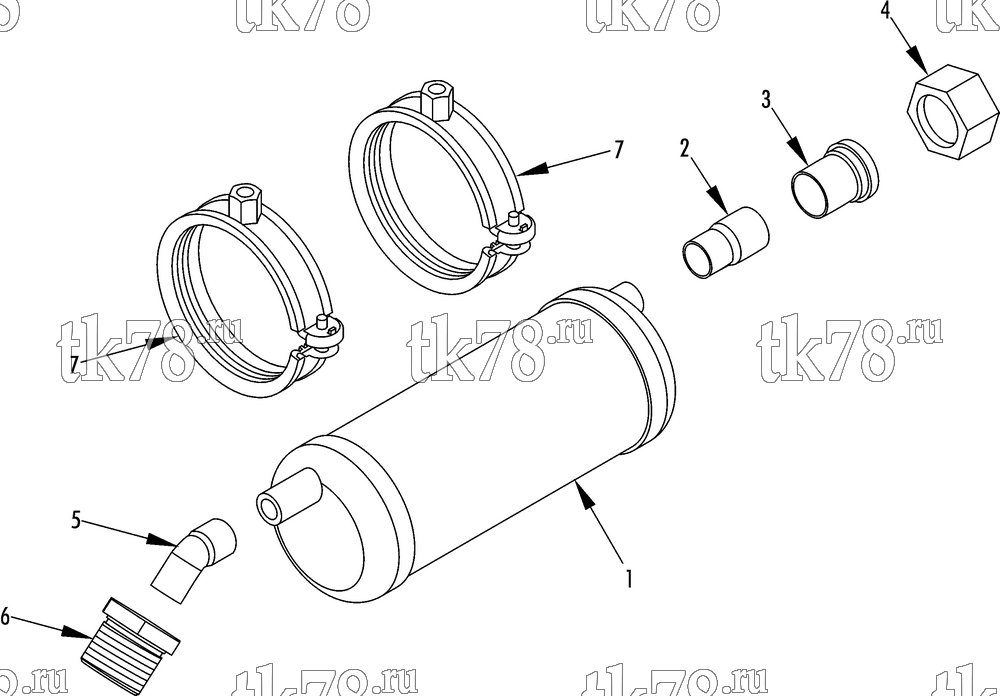

Установкa Thermo King AT17-M2 схема COMPRESSOR MUFFLER KIT – 248H7
Обновление от: 9/28/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2545 | MUFFLER - complete | 1 | |
| 66-9201 | MUFFLER - assembly | 1 | ||
| 2 | 55-1292 | BUSHING - (1-1/8 ftg X 7/8 ftg) | 1 | |
| 3 | 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 4 | 55-5935 | NUT - shoulder (1-11/16) | 1 | |
| 5 | 55-2825 | ELBOW - (7/8 ftg) | 1 | |
| 6 | 51-1484 | ADAPTER - bulkhead (#20 ors) | 1 | |
| 7 | 55-9095 | CLAMP | 2 |
