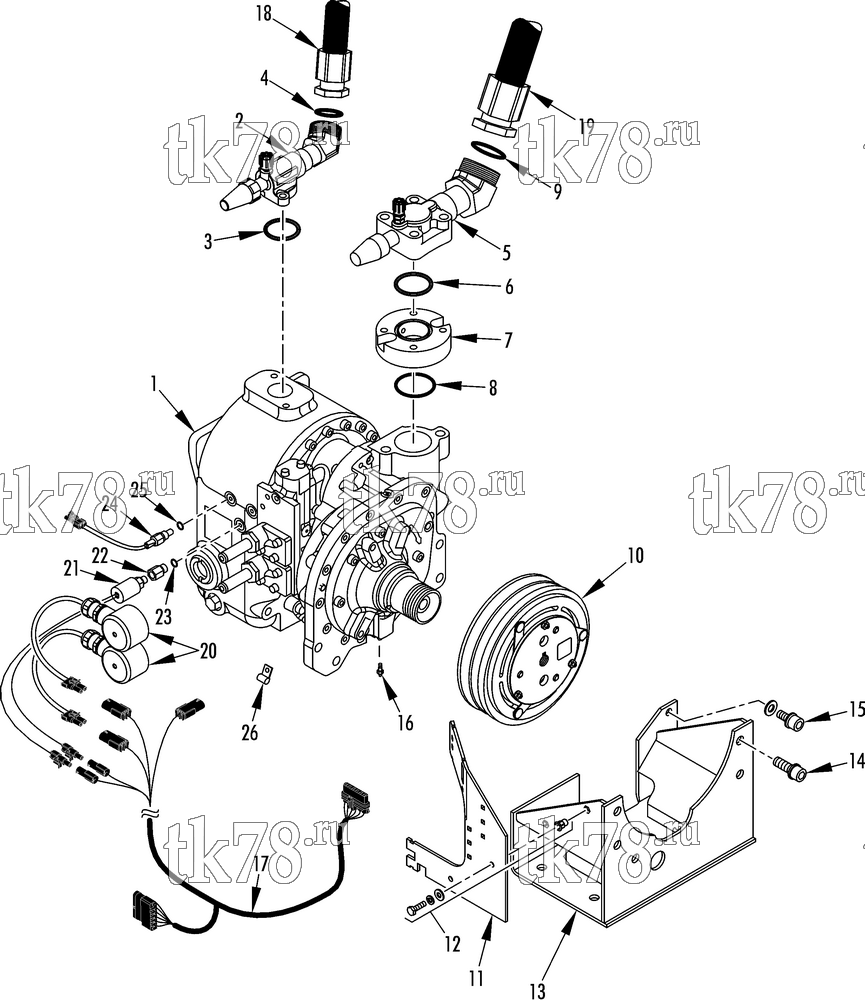

Установкa Thermo King AT17-M1 схема COMPRESSOR GROUP (KIT 701883) – 248G0
Обновление от: 8/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-915 | COMPRESSOR - S616 (see 193H8) | 1 | |
| 2 | 61-5353 | VALVE - discharge (see 248H5) | 1 | |
| 55-9727 | SCREW - valve | 2 | ||
| 55-7024 | FLATWASHER | 2 | ||
| 3 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 4 | 33-1777 | O-RING - discharge (1-3/16 id) | 1 | |
| 5 | 61-5354 | VALVE - suction (see 248H4) | 1 | |
| 55-7414 | SCREW - valve | 4 | ||
| 55-5914 | FLATWASHER | 4 | ||
| 6 | 33-3708 | O-RING - valve | 1 | |
| 7 | 22-1171 | SPACER - suction valve | 1 | |
| 8 | 33-3707 | O-RING - spacer | 2 | |
| 9 | 33-920 | O-RING - suction (1-1/2 id) | 1 | |
| 10 | NSS | CLUTCH (see Clutch Assembly) | 1 | |
| 11 | 92-5704 | BRACKET - mounting | 1 | |
| 12 | 55-2957 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8979 | INSERT | 2 | ||
| 13 | 92-5557 | BRACKET - mounting | 1 | |
| 14 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 15 | 55-9727 | SCREW - bracket | 4 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 16 | 55-2387 | FITTING - lubrication | 1 | |
| 17 | 41-5209 | HARNESS - compressor (see 248G8) | 1 | |
| 18 | 61-5204 | HOSE - suction (# 24, 111.50 in long) | 1 | |
| 61-5344 | HOSE - suction (# 24, 31.5 in long) | 1 | ||
| 19 | 61-5203 | HOSE - discharge (# 20, 109.25 in long) | 1 | |
| 61-3366 | HOSE - discharge (# 20, 38.3 in long) | 1 | ||
| 20 | 41-5213 | COIL (24V, for connectors see 115D14) | 2 | |
| 21 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 22 | 55-9730 | ADAPTER - switch | 1 | |
| 23 | 33-3381 | O-RING - adapter | 1 | |
| 24 | 41-3827 | SENSOR - thermistor (for connector see 115D14) | 1 | |
| 25 | 33-3381 | O-RING - sensor | 1 | |
| 26 | 55-9811 | CLAMP (0.250 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 |
