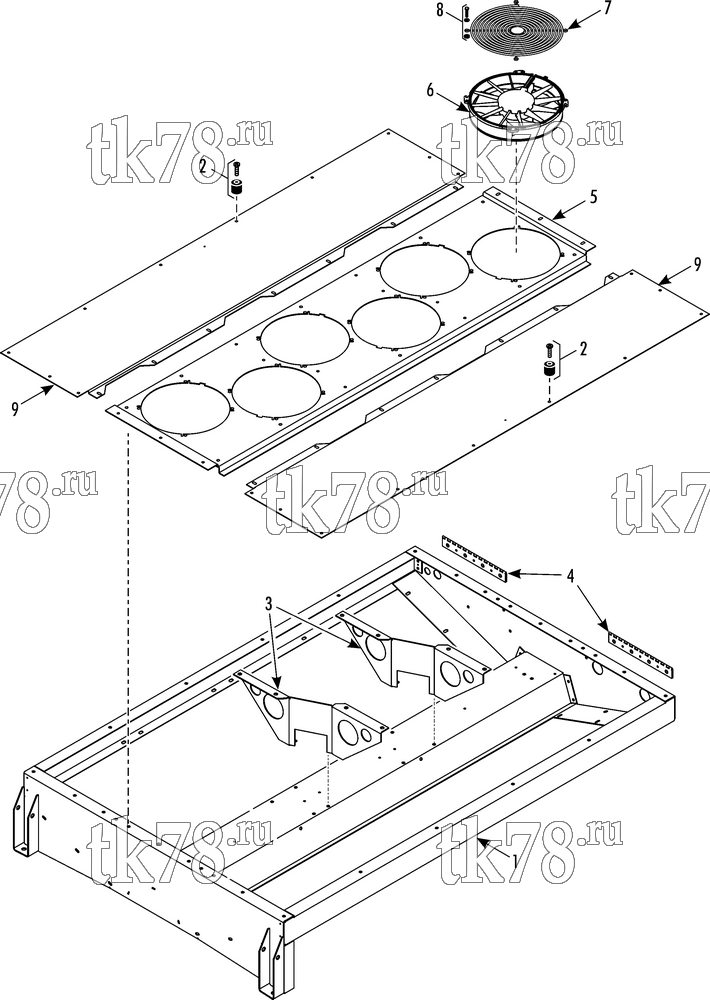

Установкa Thermo King AT16-M6 схема CONDENSER STRUCTURAL & FANS – 269A3
Обновление от: 3/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8796 | FRAME - condenser | 1 | |
| 55-8711 | INSERT | 44 | ||
| 2 | 33-2633 | GROMMET - bumper | 2 | |
| 55-2190 | SCREW - bumper | 2 | ||
| 3 | 93-909 | BRACKET - condenser orifice | 2 | |
| 55-2957 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 4 | 91-9730 | HINGE - evaporator cover | 2 | |
| 55-3027 | SCREW - hinge | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 6 | ||
| 5 | 93-911 | PANEL - center condenser fans | 1 | |
| 55-2957 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-8711 | INSERT | 6 | ||
| 92-4932 | PROTECTOR - edge | A/R | ||
| 6 | 78-1460 | FAN - condenser (24V) | 6 | |
| 7 | 98-5425 | GUARD - fan | 6 | |
| 8 | 55-2979 | SCREW - fan and guard | 25 | |
| 55-4727 | WASHER - special | 25 | ||
| 55-2086 | FLATWASHER | 25 | ||
| 55-1800 | LOCKWASHER | 25 | ||
| 9 | 93-912 | COVER - condenser | 2 | |
| 55-2957 | SCREW - cover | 32 | ||
| 55-1800 | LOCKWASHER | 32 | ||
| 55-2086 | FLATWASHER | 32 |
