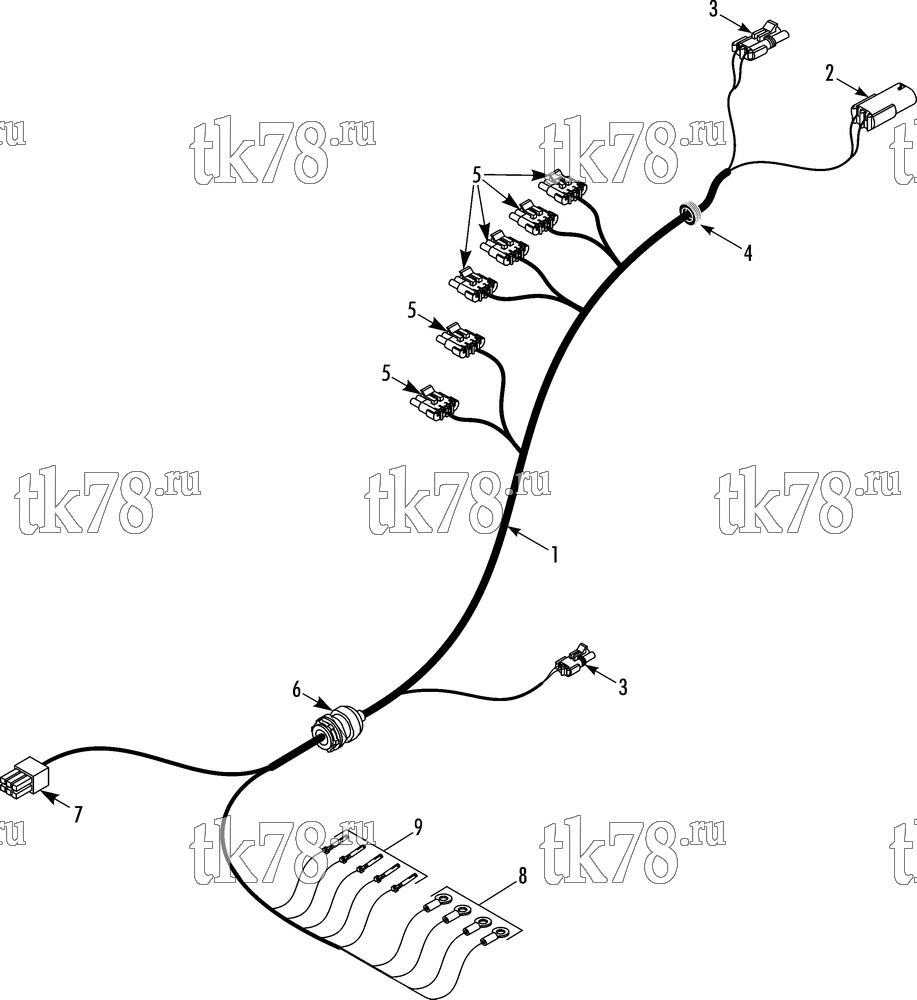

Установкa Thermo King AT16-M5 схема HARNESS CONDENSER FANS – 269A5
Обновление от: 3/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-1054 | HARNESS - condenser fans | 1 | |
| 2 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 4 | ||
| 44-8681 | SEAL - cable (red) | 4 | ||
| 4 | 33-2110 | GROMMET | 1 | |
| 5 | 44-7881 | CONNECTOR - tower (4-pin) | 6 | |
| 44-5839 | TERMINAL - female (16-14 ga) | A/R | ||
| 44-5884 | TERMINAL - female (20-18 ga) | A/R | ||
| 44-6324 | SEAL - cable (blue) | A/R | ||
| 44-8681 | SEAL - cable (red) | A/R | ||
| 6 | 41-4188 | CONNECTOR - liquid tite | 1 | |
| 55-2636 | NUT - lock | 1 | ||
| 41-4189 | WASHER - sealing | 1 | ||
| 41-7680 | HEATSHRINK | 1 | ||
| 7 | 41-7605 | RECEPTACLE | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 6 | ||
| 41-7681 | HEATSHRINK (1 1/2 inch) | 1 | ||
| 8 | 41-8842 | TERMINAL - ring (3/8 red, 22-16 ga) | 1 | |
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 3 | ||
| 9 | 41-8841 | TERMINAL - fuse (14-16 awg) | 5 |
