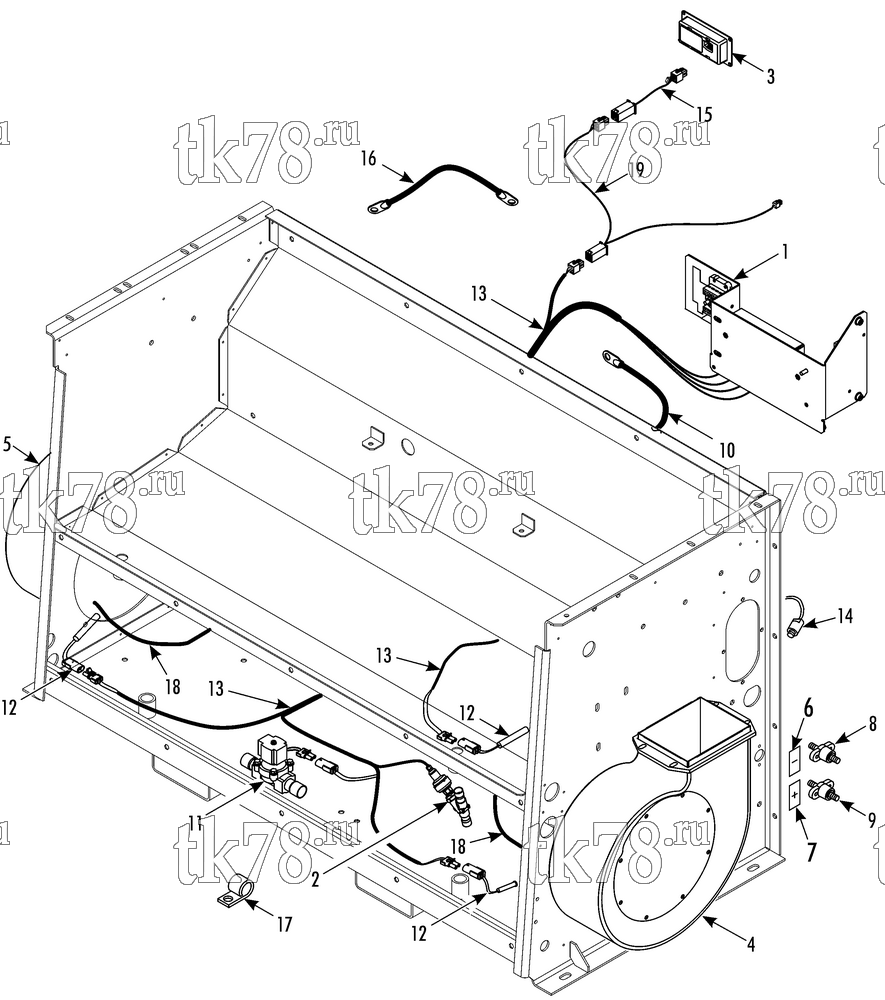

Установкa Thermo King AT16-M5 схема ELECTRICAL COMPONENTS – 262H3
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE III (see 258B2) | 1 | |
| 2 | 61-5941 | VALVE - epr (see 262G9) | 1 | |
| 40-1169 | KIT - repair, epr valve | |||
| 3 | 45-2339 | CONTROLLER - IntelligAIRE III (see display panel) | 1 | |
| 4 | 78-1772 | BLOWER - assembly (see 251A0) | 1 | |
| 5 | 78-1773 | BLOWER - assembly (see 251A0) | 1 | |
| 6 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 7 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 8 | 51-1946 | STUD - terminal (black) | 1 | |
| 9 | 55-9550 | STUD - terminal (red) | 1 | |
| 42-753 | CAP - stud (red, 90 degree) | 1 | ||
| 55-9700 | SCREW - junction block | 2 | ||
| 10 | 42-359 | CABLE - battery power | 1 | |
| 41-5672 | TERMINAL - lug (3/8, 4 awg) | 1 | ||
| 41-8184 | TERMINAL - lug (1/4, 4 awg) | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 11 | 41-9427 | VALVE - solenoid, coolant 24V (see Heater Components) | 1 | |
| 12 | 41-4157 | SENSOR - temperature | 4 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 4 | ||
| 13 | 42-358 | HARNESS - main, IntelligAIRE III (see 258B3) | 1 | |
| 14 | 41-9044 | TRANSDUCER - suction | 1 | |
| 15 | 41-9432 | HARNESS - display, IntelligAIRE III (w/resistor) | 2 | |
| 16 | 42-360 | CABLE - chassis ground (ch) | 1 | |
| 41-5672 | TERMINAL - lug (3/8, 4 awg) | 2 | ||
| 17 | 51-2031 | CLAMP (.437 dia) | 1 | |
| 51-178 | CLAMP (.625 dia) | 2 | ||
| 18 | 41-9844 | HARNESS - evaporator motors | 1 | |
| 41-9440 | CONNECTOR (7-pin) | 2 | ||
| 41-9441 | LOCK - secondary | 2 | ||
| 44-9689 | TERMINAL - female (10 ga) | 4 | ||
| 33-2418 | SEAL - cable (orange, 10 ga) | 4 | ||
| 41-8983 | PLUG - cavity | 6 | ||
| 19 | 41-9474 | HARNESS - splitter (optional) | 1 |
