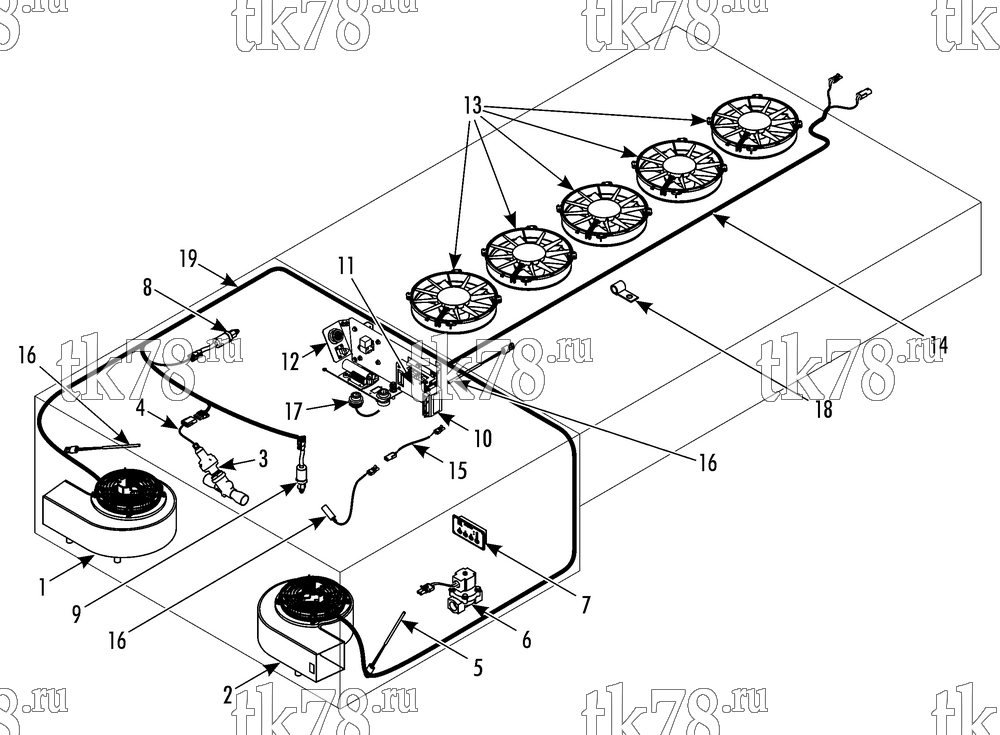

Установкa Thermo King AT16-M2 схема ELECTRICAL COMPONENTS (RLF) – 262H4
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 61-5940 | VALVE - epr | 1 | |
| 40-1169 | KIT - repair, epr valve | 1 | ||
| 4 | 42-408 | HARNESS - valve | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin, see 115D14 for connectors) | 1 | ||
| 5 | 41-4157 | SENSOR - water (see 115D14 for connectors) | 2 | |
| 6 | 41-9427 | VALVE - solenoid, water | 1 | |
| 7 | 45-2339 | MODULE - display IntelligAIRE III (see 244B9) | 1 | |
| 8 | 41-9043 | TRANSDUCER - discharge | 1 | |
| 9 | 41-9044 | TRANSDUCER - suction | 1 | |
| 10 | 41-9354 | MODULE - floor heat IntelligAIRE III (optional) | 1 | |
| 11 | 41-9353 | MODULE - main, IntelligAIRE III (see 255B8) | 1 | |
| 12 | NSS | PANEL - control assembly (see 255B8) | 1 | |
| 13 | 78-1460 | FAN - condenser (24V, see 255C4) | 5 | |
| 14 | 42-148 | HARNESS - condenser fans (see 255C1) | 1 | |
| 15 | 41-9436 | HARNESS - return air sensor (see 115D14 for connectors) | 1 | |
| 16 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 3 | |
| 17 | 42-149 | HARNESS - diagnostic (see 255B9) | 1 | |
| 18 | 51-176 | CLAMP (.250 dia) | 2 | |
| 55-9721 | CLAMP (.875 dia) | 9 | ||
| 19 | 41-9738 | HARNESS - main, IntelligAIRE III (see 249F6) | 1 |
