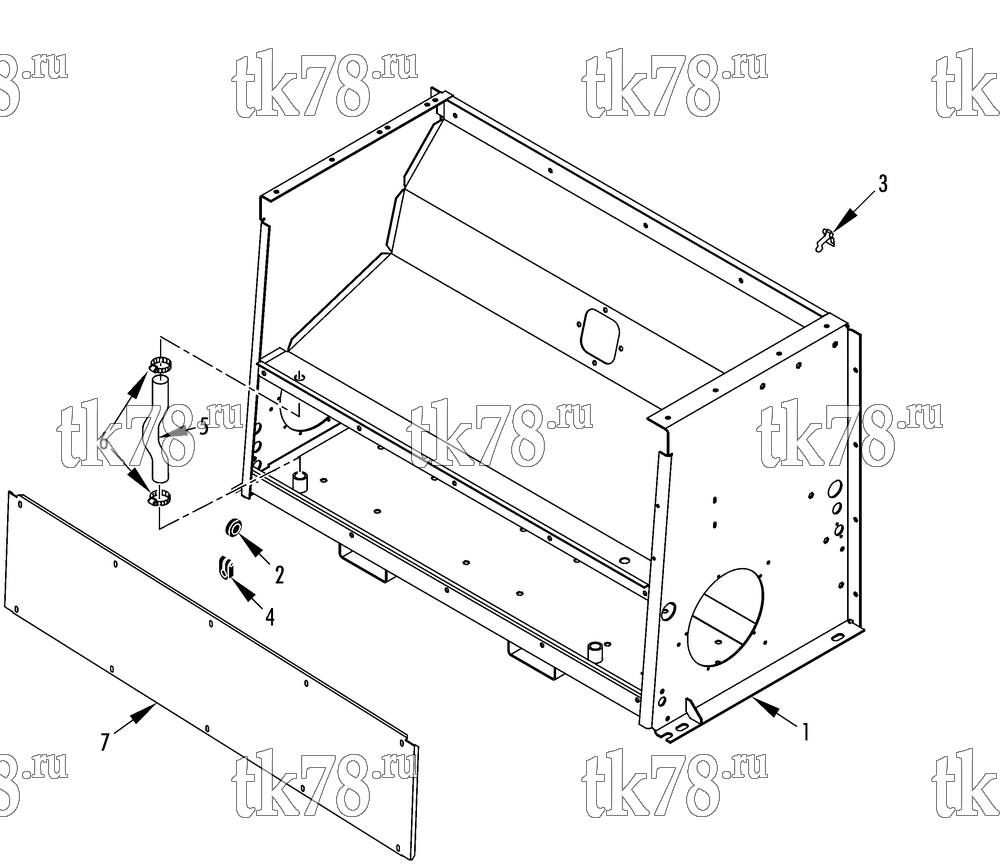

Установкa Thermo King AT16-M1 схема STRUCTURAL COMPONENTS (T11E) – 255B4
Обновление от: 8/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8790 | FRAME | 1 | |
| 55-9159 | INSERT (5/16-18) | 12 | ||
| 55-1322 | PLUG - button (1/2 in dia) | 1 | ||
| 2 | 33-287 | GROMMET (5/8 id) | 1 | |
| 3 | 55-4422 | FASTENER - filter | 2 | |
| 4 | 91-372 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-6526 | INSERT - threaded | 1 | ||
| 5 | 66-8576 | HOSE - drain | A/R | |
| 6 | 55-2684 | CLAMP - hose | 4 | |
| 7 | 98-7991 | COVER (rear) | 1 | |
| 98-6059 | COVER | 1 | ||
| 33-4438 | GASKET - cover | 1 | ||
| 33-4439 | STRIP - foam | 2 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-2977 | SCREW - cover | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-8711 | INSERT - threaded | 10 |
