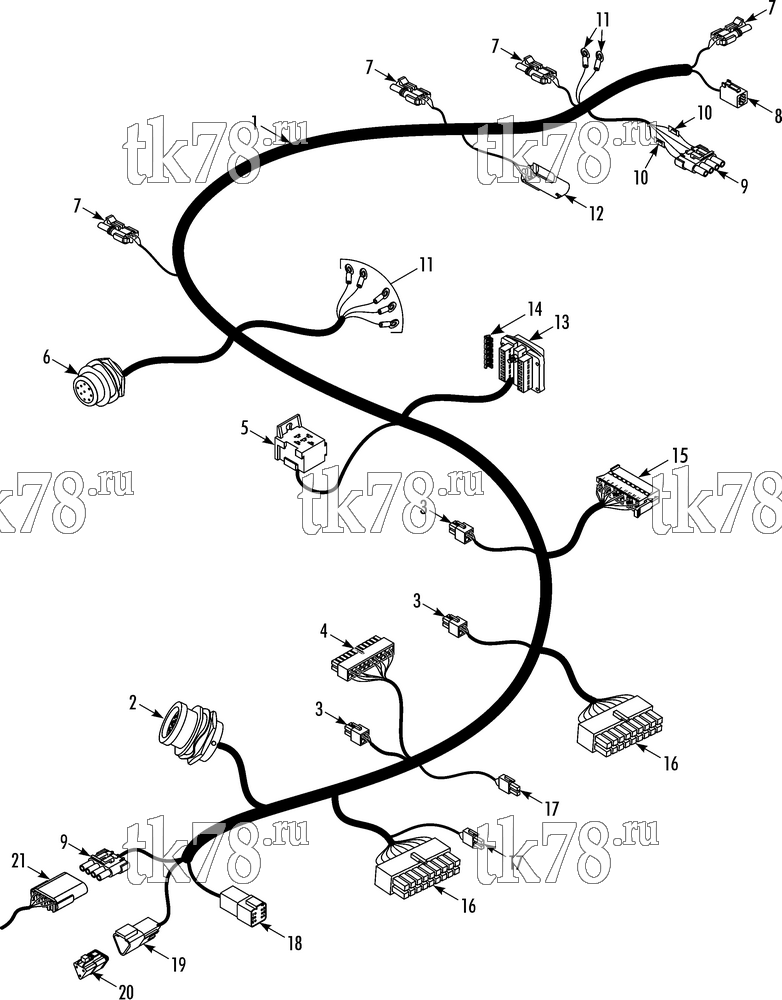

Установкa Thermo King AT16-M1 схема HARNESS MAIN - IntelligAIRE III (T11E) – 255B3
Обновление от: 7/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-143 | HARNESS - main, IntelligAIRE III | 1 | |
| 2 | 41-9437 | RECEPTACLE (19-pin) | 1 | |
| 44-9602 | PIN - sealing | 7 | ||
| 44-9591 | PIN (18 ga) | 12 | ||
| 41-9438 | LOCKWASHER | 1 | ||
| 41-9439 | NUT - receptacle | 1 | ||
| 3 | 41-654 | CONNECTOR - (4-pin) | 3 | |
| 41-1807 | SOCKET (18-24 ga) | 12 | ||
| 4 | 41-656 | CONNECTOR - (24-pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 13 | ||
| 44-8681 | SEAL - cable (red) | 13 | ||
| 5 | 44-5537 | SOCKET - relay | 1 | |
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 4 | ||
| 6 | 41-9446 | RECEPTACLE (9-pin) | 1 | |
| 44-9591 | PIN (18 ga) | 6 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 41-9448 | NUT - receptacle | 1 | ||
| 7 | 44-5838 | CONNECTOR - tower (2-pin) | 4 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 8 | 44-8915 | RECEPTACLE - (4-pin) | 1 | |
| 44-8918 | WEDGE - (4-pin) | 1 | ||
| 44-9591 | PIN (18 ga) | 1 | ||
| 44-9602 | PIN - sealing | 15 | ||
| 9 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 10 | 41-9444 | RESISTOR (150 ohm) | 2 | |
| 41-9445 | HEATSHRINK (2.25 in long) | 2 | ||
| 11 | 41-4409 | TERMINAL - ring (#8 red, 22-16 ga) | 1 | |
| 44-7245 | TERMINAL - ring (#10 red, 22-16 ga) | 1 | ||
| 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 1 | ||
| 44-2792 | TERMINAL - ring (#10 yellow, 12-10 ga) | 1 | ||
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 1 | ||
| 12 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 13 | 41-7618 | PANEL - fuse (8 pole) | 1 | |
| 41-8841 | TERMINAL - fuse (14-16 awg) | 4 | ||
| 14 | 41-6723 | FUSE - holder lock | 1 | |
| 15 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (.5 mm) | 12 | ||
| 16 | 41-650 | CONNECTOR - in line (18-pin) | 2 | |
| 41-1807 | SOCKET (18-24 ga) | 36 | ||
| 17 | 41-1507 | CONNECTOR - in line (2-pin) | 2 | |
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 18 | 41-4281 | CONNECTOR (6-pin) | 2 | |
| 41-4282 | WEDGE (6-pin) | 1 | ||
| 41-8979 | PIN - sealing | 1 | ||
| 41-8978 | TERMINAL - pin (16-20 ga) | 5 | ||
| 19 | 44-9544 | RECEPTACLE (3-pin) | 1 | |
| 41-7083 | WEDGE (3-pin) | 1 | ||
| 41-8832 | TERMINAL - pin (gold, 18 ga) | 2 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 20 | 44-9631 | PLUG (3-pin) | 1 | |
| 41-9653 | WEDGE (blue, 3-pin) | 1 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 21 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 44-7812 | PLUG - cavity (green) | 4 |
