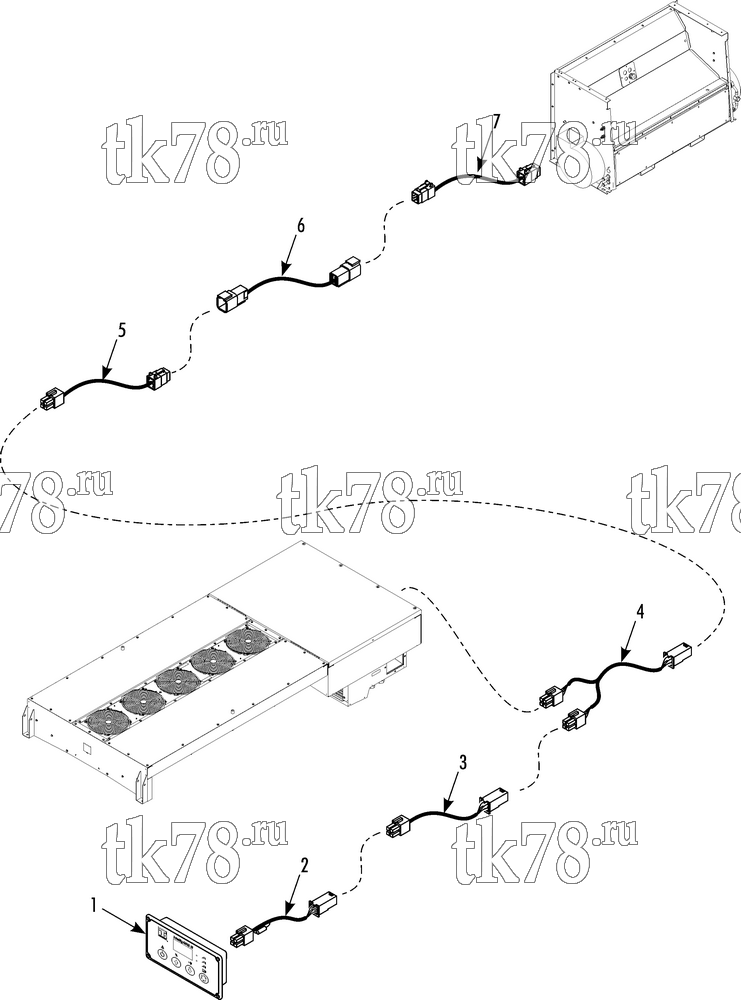

Установкa Thermo King AT16-M1 схема HARNESS UNIT CAN – 255B0
Обновление от: 8/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2339 | CONTROLLER - IntelligAIRE III (see 244B9) | 1 | |
| 2 | 41-9432 | HARNESS - controller (IntelligAIRE III, see 244B9) | 1 | |
| 3 | 41-9433 | HARNESS - display (12 ft long) | 1 | |
| 41-654 | CONNECTOR - in line (4-pin) | 1 | ||
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 41-8221 | PLUG - in line (4-pin) | 1 | ||
| 651-148 | TERMINAL - pin (18-24 ga) | 4 | ||
| 4 | 41-9474 | HARNESS - splitter | 1 | |
| 41-654 | CONNECTOR - in line (4-pin) | 2 | ||
| 41-1807 | SOCKET (18-24 ga) | 8 | ||
| 41-8221 | PLUG - in line (4-pin) | 1 | ||
| 651-148 | TERMINAL - pin (18-24 ga) | 4 | ||
| 5 | 42-152 | HARNESS - display (29.5 ft long) | 1 | |
| 41-4283 | CONNECTOR (6-pin) | 1 | ||
| 41-4899 | WEDGE (6-pin) | 1 | ||
| 41-9602 | SOCKET (20 ga) | 5 | ||
| 41-8979 | PIN - sealing | 1 | ||
| 41-654 | CONNECTOR - in line (4-pin) | 1 | ||
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 6 | 42-151 | HARNESS - CAN (6-pin female ends, 15.8 ft long) | 1 | |
| 41-4281 | CONNECTOR (6-pin) | 2 | ||
| 41-4282 | WEDGE (6-pin) | 2 | ||
| 41-9601 | TERMINAL - pin (20 ga) | 10 | ||
| 41-8979 | PIN - sealing | 2 | ||
| 7 | 41-7294 | HARNESS - CAN (6-pin male ends, 27 ft) | 1 | |
| 41-4283 | CONNECTOR (6-pin) | 2 | ||
| 41-4899 | WEDGE (6-pin) | 2 | ||
| 41-9602 | SOCKET (20 ga) | 10 | ||
| 41-8979 | PIN - sealing | 2 |
