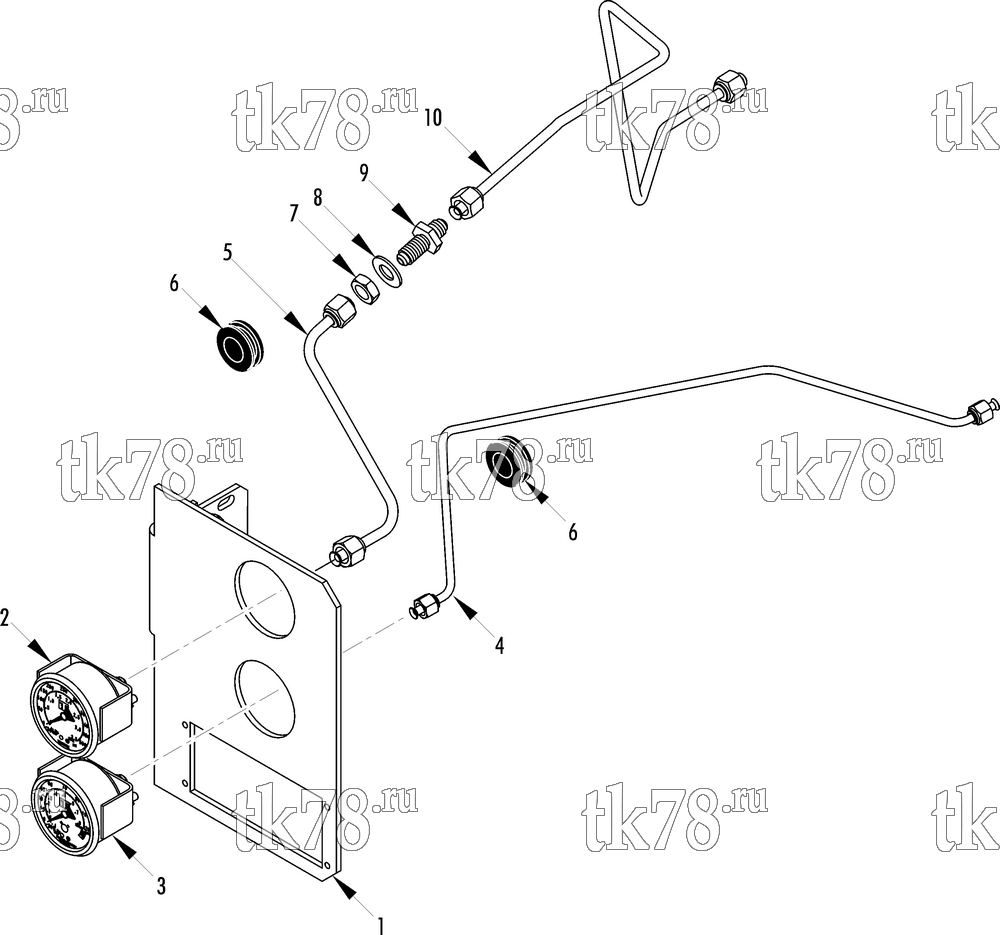

Установкa Thermo King AT15-M6 схема REFRIGERATION PRESSURE GAUGES – 228G3
Обновление от: 9/29/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2275 | BRACKET - gauges & display | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 2 | 61-3550 | GAUGE - pressure (discharge) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 3 | 61-3549 | GAUGE - pressure (suction) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 4 | 61-918 | TUBE - gauge (suction) | 1 | |
| 55-303 | NUT | 2 | ||
| 5 | 61-1666 | TUBE - gauge (discharge) | 1 | |
| 55-303 | NUT | 2 | ||
| 6 | 33-287 | GROMMET | 2 | |
| 7 | 55-2326 | NUT | 1 | |
| 8 | 55-2221 | FLATWASHER | 1 | |
| 9 | 55-8664 | ADAPTER | 1 | |
| 33-1223 | O-RING (9/16 id) | 1 | ||
| 10 | 61-2609 | TUBE - gauge discharge | 1 | |
| 55-303 | NUT | 2 |
