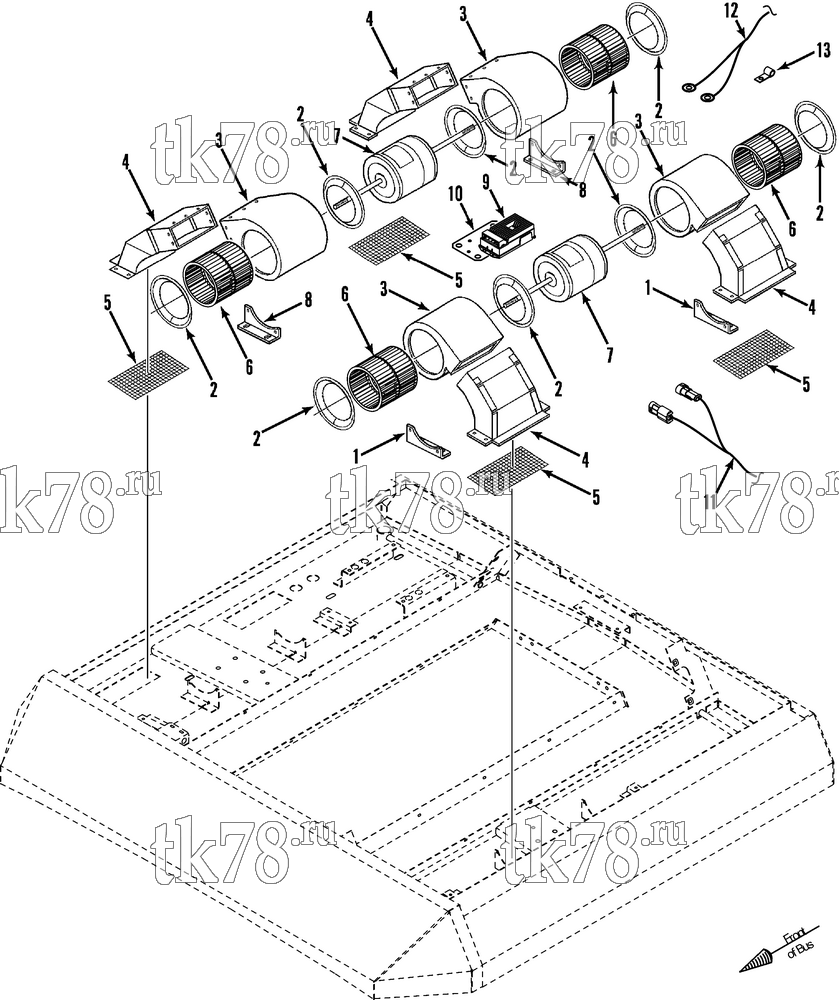

Установкa Thermo King AT15-M6 схема EVAPORATOR MOTOR & BLOWER (R5E) – 220F8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6059 | BRACKET - blower housing | 2 | |
| 55-2991 | SCREW - bracket | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-6721 | INSERT | 8 | ||
| 2 | 77-1959 | RING - inlet | 8 | |
| 55-5639 | SCREW - ring | 32 | ||
| 3 | 91-6056 | HOUSING - blower | 4 | |
| 55-1322 | PLUG - button | 4 | ||
| 4 | 91-6057 | DUCT - air | 4 | |
| 33-2635 | GASKET - duct | 4 | ||
| 55-5639 | SCREW - duct | 32 | ||
| 5 | 91-6058 | SCREEN - air duct | 4 | |
| 55-3035 | RIVET - screen (duct housing) | 56 | ||
| 6 | 77-1958 | WHEEL - blower | 4 | |
| 7 | 104-807 | MOTOR - blower | 2 | |
| 41-1911 | CONNECTOR - drive | 2 | ||
| 41-1912 | LOCK - secondary (3-pin connector) | 2 | ||
| 41-1910 | TERMINAL - socket (female) | 6 | ||
| 41-1913 | SEAL - cable (green) | 6 | ||
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-6713 | INSERT | 8 | ||
| 8 | 91-6060 | BRACKET - blower housing | 2 | |
| 55-2991 | SCREW - bracket | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-6721 | INSERT | 8 | ||
| 9 | 41-3590 | CONTROLLER - motor | 1 | |
| 55-1587 | SCREW - controller | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT | 4 | ||
| 10 | 92-1762 | PLATE - motor drive | 1 | |
| 55-1587 | SCREW - plate | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 11 | 41-4534 | HARNESS - evaporator motor (see 238C3) | 1 | |
| 12 | 41-5997 | HARNESS - evaporator power (roadside only) | 1 | |
| 41-7673 | HARNESS - assembly motors | 1 | ||
| 41-8598 | TERMINAL - ring (3/8, 2 AWG) | 4 | ||
| 41-8966 | TERMINAL - ring (1/4, 2 AWG) | 3 | ||
| 41-5672 | TERMINAL - ring (3/8, 4 AWG) | 2 | ||
| 41-8184 | TERMINAL - ring (1/4, 4 AWG) | 1 | ||
| 55-2330 | BANDWRAP | A/R | ||
| 41-5671 | HEAT SHRINK | 10 | ||
| 55-5900 | CONNECTOR - liquid tite | 2 | ||
| 55-3167 | STUD - power harness | 2 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-671 | NUT | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER (internal) | 4 | ||
| 55-3672 | LOCKWASHER (internal/external) | 2 | ||
| 55-5900 | CONNECTOR (liquid tite) | 3 | ||
| 44-8197 | HARNESS - jumper | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 13 | 55-9701 | CLAMP (0.375 dia) | 2 | |
| 55-9309 | CLAMP (0.500 dia) | 4 | ||
| 51-663 | CLAMP (0.625 dia) | 4 | ||
| 55-9703 | CLAMP (0.750 dia) | 6 | ||
| 55-9721 | CLAMP (0.875 dia) | 8 | ||
| 51-179 | CLAMP (1.437 dia) | 2 | ||
| 55-1587 | SCREW - clamp (1/4-20) | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2991 | SCREW - clamp (10-32) | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-6721 | INSERT | 4 |
