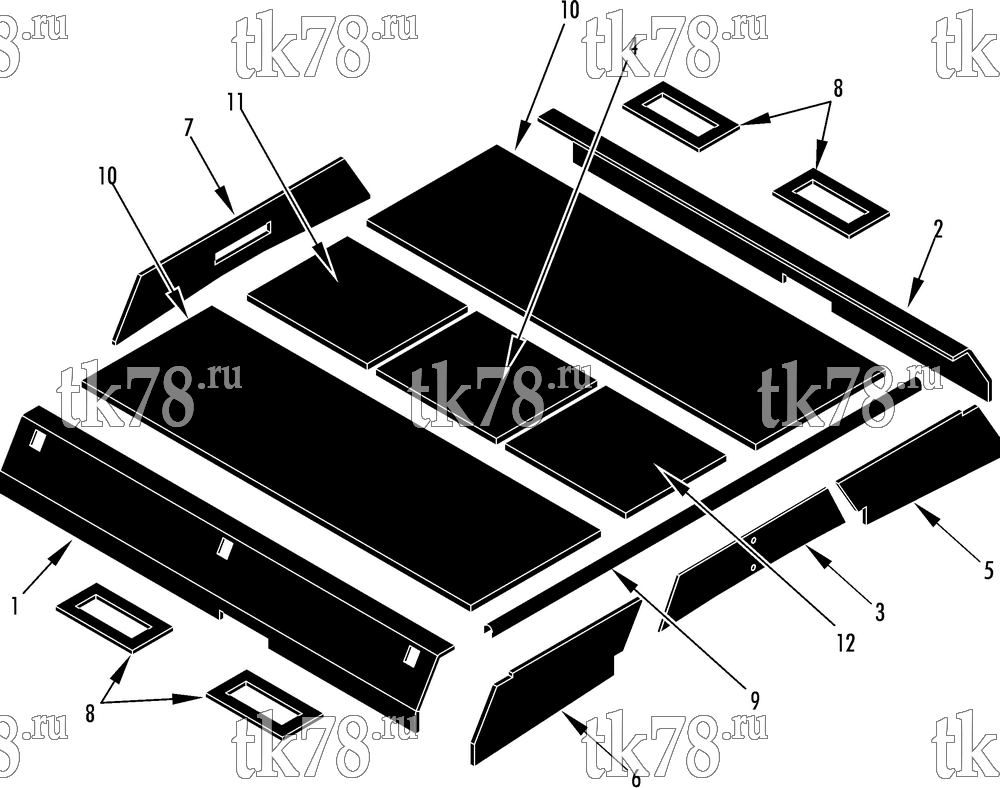

Установкa Thermo King AT15-M13 схема EVAPORATOR INSULATION (SLAVE) – 238C4
Обновление от: 7/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1775 | INSULATION - curbside | 1 | |
| 2 | 92-1776 | INSULATION - roadside | 1 | |
| 3 | 91-7734 | INSULATION - front (center) | 1 | |
| 4 | 91-6746 | INSULATION - cover (center) | 1 | |
| 5 | 92-2473 | INSULATION - roadside (rear, no holes) | 1 | |
| 92-1779 | INSULATION - roadside (rear, w/4 holes) | 1 | ||
| 6 | 92-2472 | NSULATION - curbside (rear, square hole) | 1 | |
| 92-1780 | INSULATION - curbside (rear, round hole) | 1 | ||
| 7 | 92-1781 | INSULATION - center (rear) | 1 | |
| 8 | 33-2635 | GASKET - duct outlet | 4 | |
| 9 | 92-2474 | EXTRUSION (14.65 ft) | A/R | |
| 10 | 91-6086 | INSULATION - access cover | 2 | |
| 11 | 91-6084 | INSULATION - cover (center, rear) | 1 | |
| 12 | 91-6744 | INSULATION - cover (center, front) | 1 |
