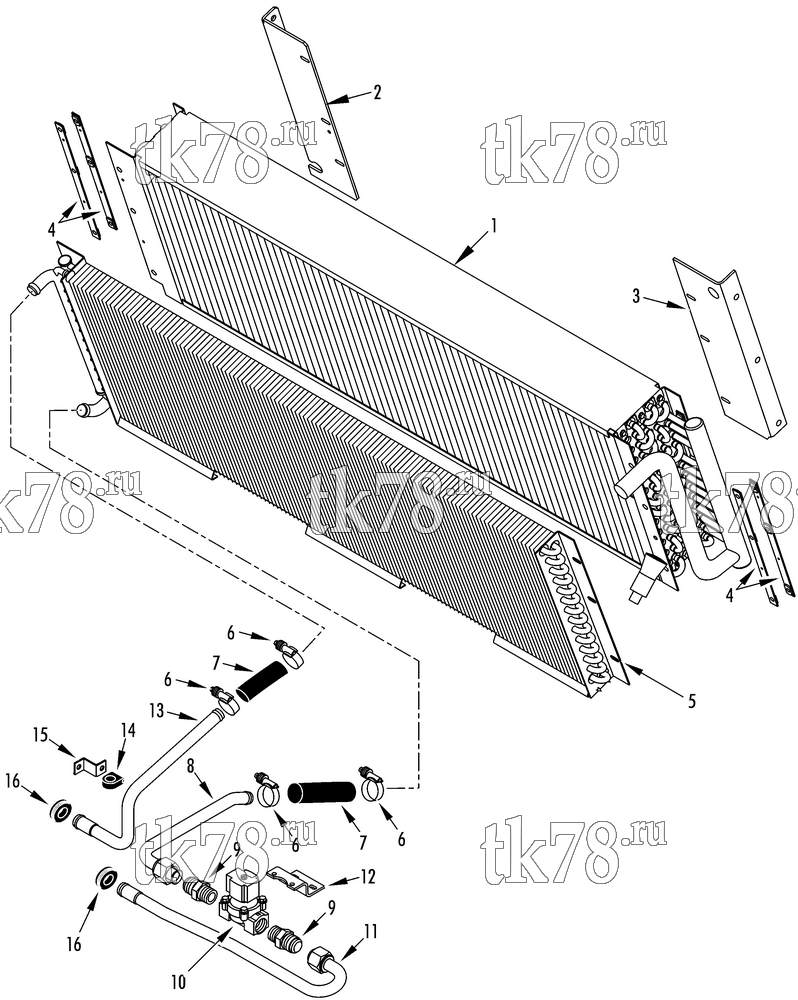

Установкa Thermo King AT15-M13 схема HEATER COMPONENTS (T11E) – 235E2
Обновление от: 10/15/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1495 | COIL - evaporator | 1 | |
| 67-1496 | COIL - evaporator (lacquer coating) | 1 | ||
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 2 | 92-1285 | BRACKET - coil (roadside) | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-8976 | INSERT - threaded | 6 | ||
| 3 | 92-7556 | BRACKET - coil (curbside) | 1 | |
| 4 | 99-7803 | NUTSTRIP - coil | 4 | |
| 5 | 67-1312 | COIL - heat (lacquer coating) | 1 | |
| 67-1194 | COIL - heat | 1 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 33-3216 | EXTRUSION - rubber (cut to 6.0 in) | A/R | ||
| 55-1587 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 6 | 91-2632 | CLAMP - spring | 4 | |
| 7 | 12-419 | HOSE (3/4 id x 25 ft, silicone) | A/R | |
| 13-982 | HOSE - silicone (3/4 id) | A/R | ||
| 8 | 61-2459 | TUBE - water (inlet) | 1 | |
| 55-2785 | NUT - tube | 1 | ||
| 9 | 55-2787 | COUPLING - valve | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 10 | 41-5610 | VALVE - solenoid (water, 24V) | 1 | |
| 41-7599 | VALVE - solenoid (water, 24V, after 5/02, for connectors see 115D14) | 1 | ||
| 55-2957 | SCREW - solenoid valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 11 | 66-7313 | TUBE - water | 1 | |
| 55-2785 | NUT - tube | 1 | ||
| 12 | 91-7086 | BRACKET - water valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 66-7315 | TUBE - water | 1 | |
| 14 | 91-372 | CLAMP - tube | 1 | |
| 55-3675 | SCREW | 3 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-6526 | INSERT | 1 | ||
| 15 | 91-5558 | BRACKET - clamp | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 16 | 33-810 | GROMMET (3/4 id) | 2 |
