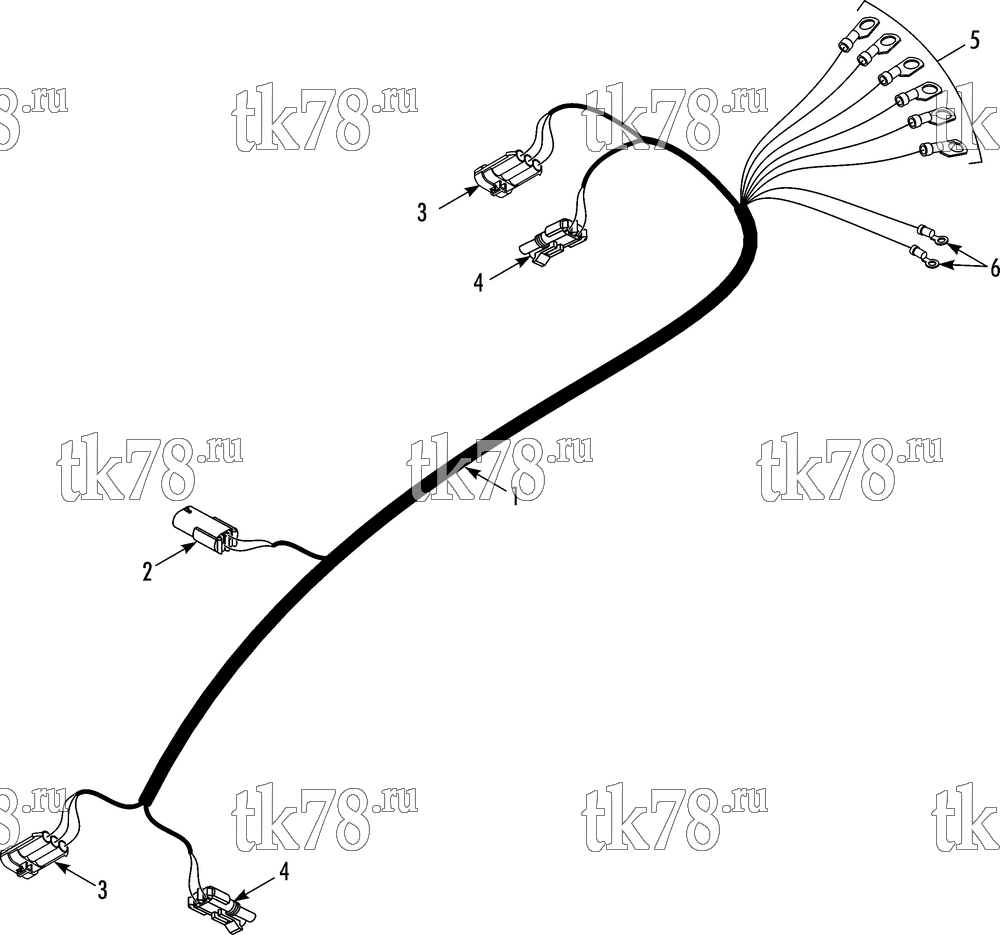

Установкa Thermo King AT15-M12 схема HARNESS EVAPORATOR – 235E3
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8439 | HARNESS - evaporator | 1 | |
| 2 | 44-5835 | CONNECTOR - shroud (2-pin, see 115D14) | 1 | |
| 3 | 41-1915 | CONNECTOR (3-pin male, see 171A8) | 2 | |
| 41-1912 | LOCK - secondary (see 171A8) | 2 | ||
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 5 | 44-5089 | TERMINAL - ring (yellow, 3/8) | 6 | |
| 6 | 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 2 |
