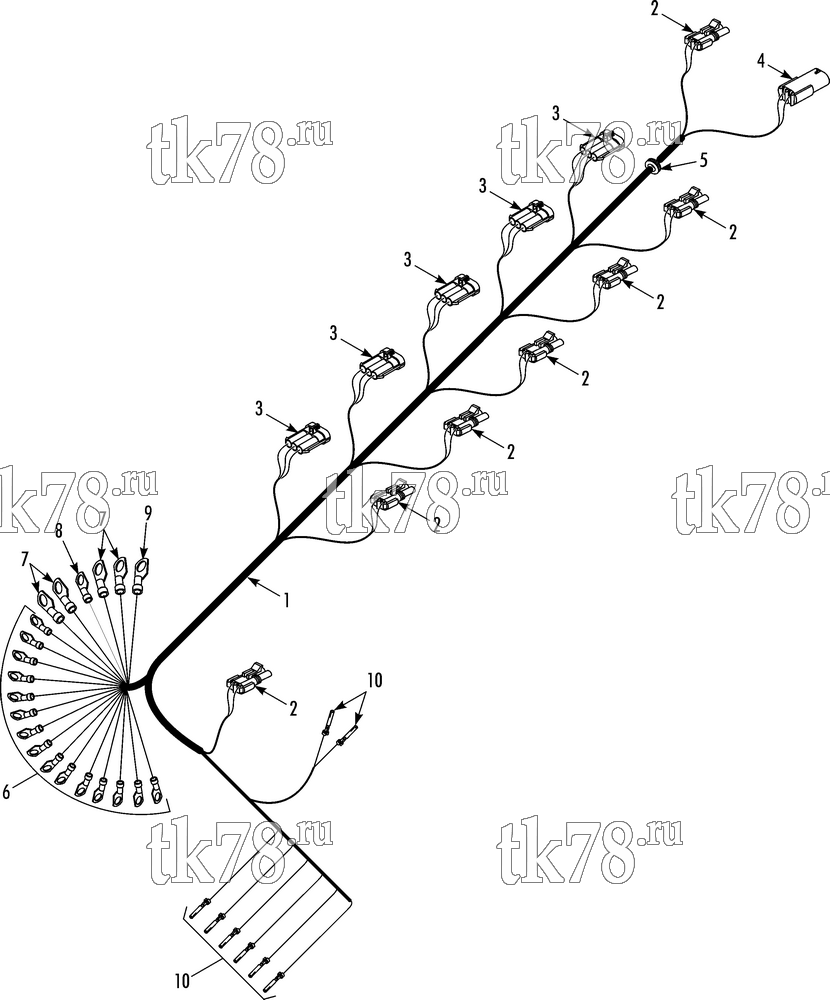

Установкa Thermo King AT15-M12 схема HARNESS CONDENSER – 235D0
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8438 | HARNESS - condenser | 1 | |
| 2 | 44-5838 | CONNECTOR - tower (2-pin) | 7 | |
| 3 | 41-1915 | CONNECTOR - tower (3-pin, see 171A8) | 5 | |
| 4 | 44-5835 | CONNECTOR - shroud (2-pin, 115D14) | 1 | |
| 5 | 33-2110 | GROMMET | 1 | |
| 6 | 44-5089 | TERMINAL - ring (yellow, 3/8) | 15 | |
| 7 | 651-246 | TERMINAL - ring (blue, 8 16-14 ga) | 4 | |
| 8 | 41-4468 | TERMINAL - ring (yellow, 8) | 1 | |
| 9 | 44-2786 | TERMINAL - ring (blue, 3/8 16-14 ga) | 1 | |
| 10 | 44-5839 | TERMINAL - female (14-16 ga) | 22 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 24 | ||
| 41-7681 | TUBING - heat shrink (1 1/2 in lg) | 1 |
