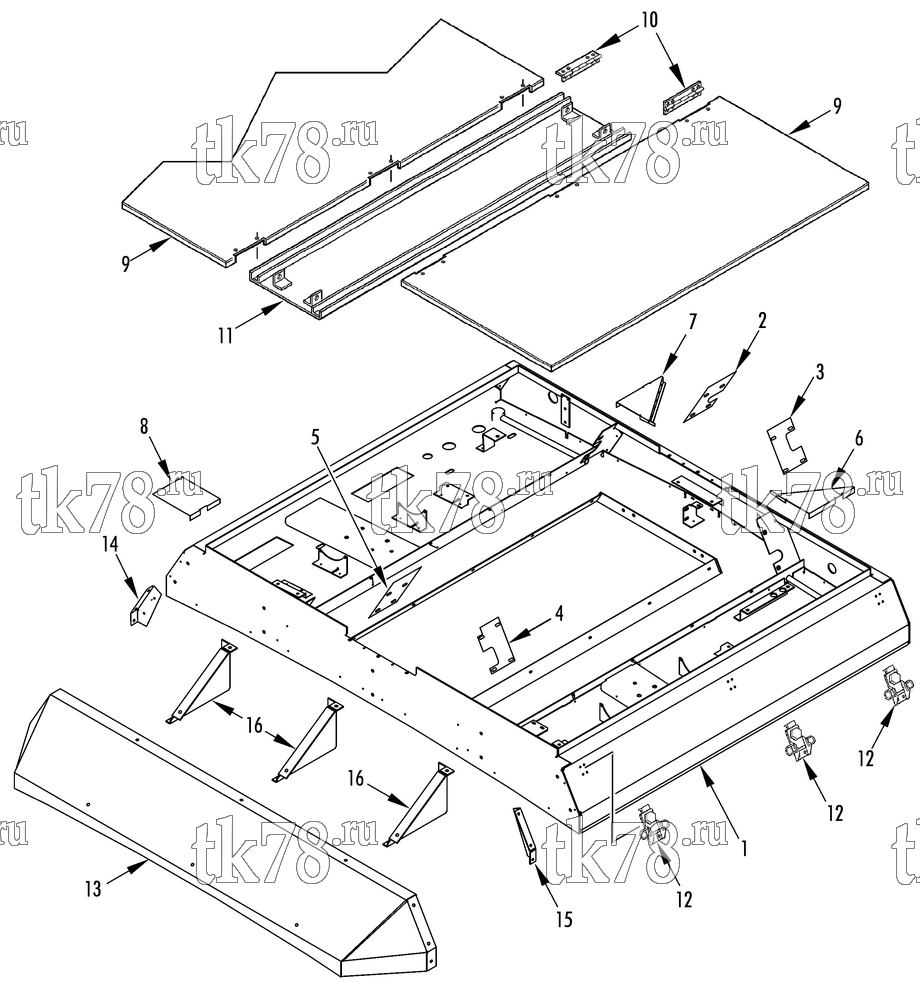

Установкa Thermo King AT15-M12 схема EVAPORATOR STRUCTURAL – 233D8
Обновление от: 8/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8168 | FRAME - evaporator | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 55-8752 | INSERT (10-32) | 2 | ||
| 55-6394 | PLUG - button | 1 | ||
| 2 | 92-1745 | PANEL - blockoff (rear, curbside) | 1 | |
| 3 | 92-1746 | PANEL - blockoff (rear, roadside) | 1 | |
| 4 | 92-1747 | PANEL - blockoff (front, roadside) | 1 | |
| 5 | 92-1748 | PANEL - blockoff (front, curbside) | 1 | |
| 6 | 92-1749 | PANEL - blockoff (evaporator) | 1 | |
| 7 | 92-1752 | PANEL - blockoff | 2 | |
| 8 | 92-1751 | PANEL - blockoff (evaporator) | 1 | |
| 55-1587 | SCREW - panel | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-3059 | NUT - captive | 16 | ||
| 9 | 98-6242 | COVER - access | 2 | |
| 91-6086 | INSULATION - cover | 2 | ||
| 10 | 91-6039 | HINGE - access cover | 6 | |
| 55-3027 | SCREW - hinge | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4560 | NUT | 24 | ||
| 11 | 98-4784 | COVER - center | 1 | |
| 55-2977 | SCREW - cover | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 92-3313 | NUTSTRIP - panel | 2 | ||
| 55-3136 | RIVET - nutstrip | 4 | ||
| 12 | 91-6774 | LATCH - cover | 6 | |
| 55-2991 | SCREW - latch | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-4560 | NUT | 24 | ||
| 13 | 98-4643 | SHROUD - front cover | 1 | |
| 14 | 92-890 | BRACKET - shroud (curbside) | 1 | |
| 15 | 92-889 | BRACKET - shroud (roadside) | 1 | |
| 16 | 91-6087 | BRACKET - shroud (center) | 3 | |
| 55-6034 | SCREW - shroud (2.5 lg) | 12 | ||
| 55-2957 | SCREW - shroud (.88 lg) | 4 | ||
| 55-2086 | FLATWASHER | 18 | ||
| 55-1800 | LOCKWASHER | 18 | ||
| 55-6526 | INSERT | 18 |
