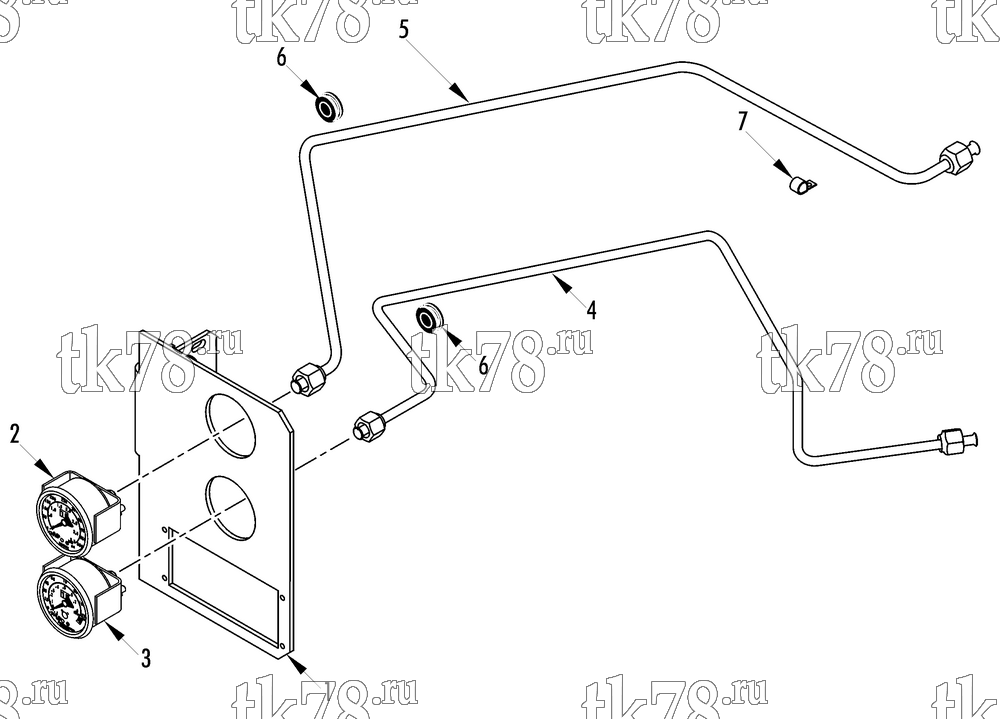

Установкa Thermo King AT15-M12 схема REFRIGERATION PRESSURE GAUGES – 233D7
Обновление от: 4/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2275 | BRACKET - gauges & display | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 2 | 61-3550 | GAUGE - pressure (discharge) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 3 | 61-3549 | GAUGE - pressure (suction) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 4 | 61-4560 | TUBE - gauge (suction) | 1 | |
| 55-303 | NUT | 2 | ||
| 5 | 61-4561 | TUBE - gauge (discharge) | 1 | |
| 55-303 | NUT | 2 | ||
| 6 | 33-287 | GROMMET | 2 | |
| 7 | 51-176 | CLAMP .250DIA | 1 | |
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2991 | SCREW | 1 |
