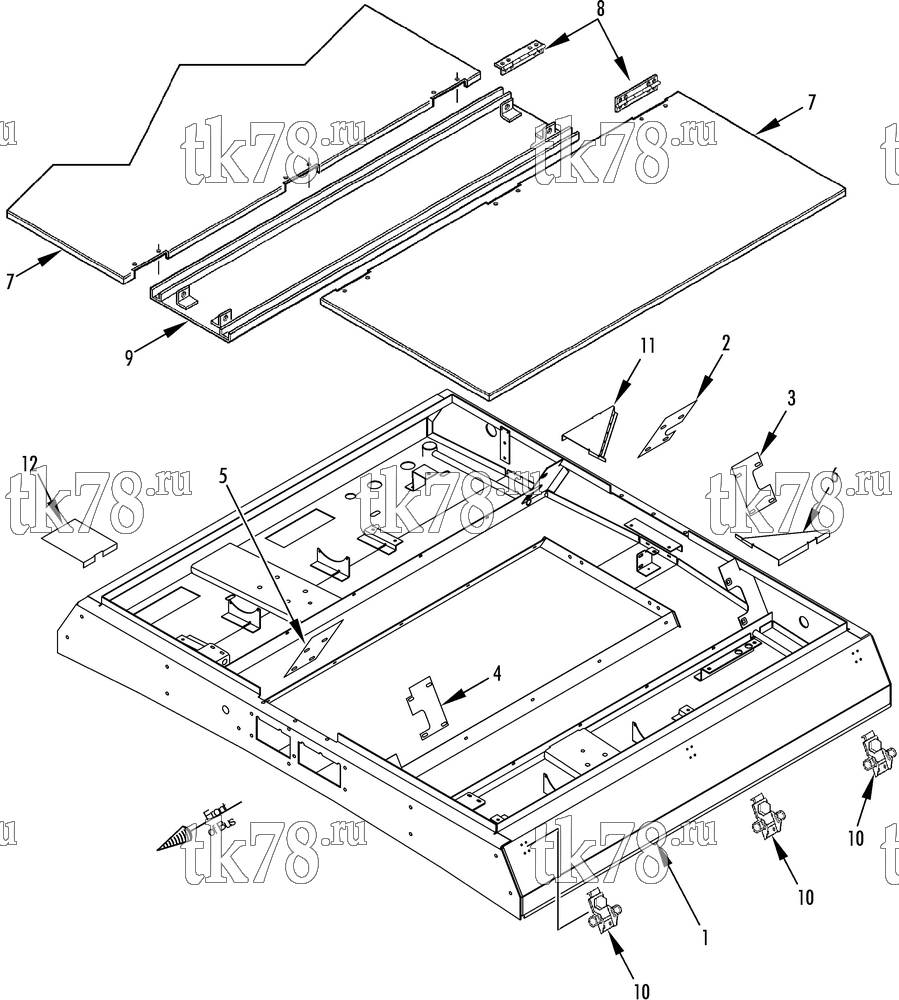

Установкa Thermo King AT13-M8 схема EVAPORATOR STRUCTURAL (R5E) – 233G1
Обновление от: 2/4/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 55-8752 | INSERT (10-32) | 2 | ||
| 1 | 98-8172 | FRAME - evaporator | 1 | |
| 2 | 92-1745 | PANEL - blockoff (rear, curbside) | 1 | |
| 3 | 92-1746 | PANEL - blockoff (rear, roadside) | 1 | |
| 4 | 92-1747 | PANEL - blockoff (front, roadside) | 1 | |
| 5 | 92-1748 | PANEL - blockoff (front, curbside) | 1 | |
| 55-1587 | SCREW - panel | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-3059 | NUT - captive | 16 | ||
| 6 | 92-1749 | PANEL - blockoff (evaporator) | 1 | |
| 7 | 98-6242 | COVER - access | 2 | |
| 91-6086 | INSULATION - cover | 2 | ||
| 8 | 91-6039 | HINGE - access cover | 6 | |
| 55-3027 | SCREW - hinge | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4560 | NUT | 24 | ||
| 9 | 98-4784 | COVER - center | 1 | |
| 55-2977 | SCREW - cover | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2945 | WASHER - special | 6 | ||
| 55-8979 | INSERT - threaded (1/4-20) | 6 | ||
| 10 | 91-6774 | LATCH - cover | 6 | |
| 55-2991 | SCREW - latch | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-4560 | NUT | 24 | ||
| 11 | 92-1751 | PANEL - blockoff (evaporator) | 1 | |
| 12 | 92-1752 | PANEL - blockoff | 2 | |
| 92-3313 | NUTSTRIP - panel | 2 | ||
| 55-3136 | RIVET - nutstrip | 4 |
